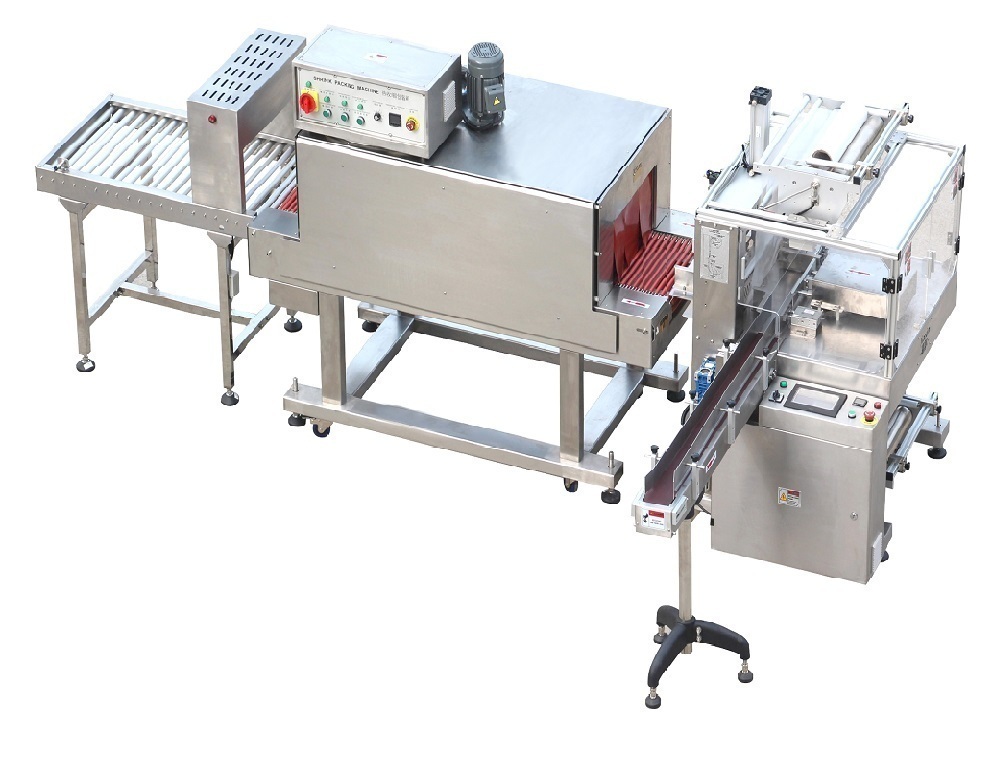

- GH-5030AE + SF-5030E is suitable for a wide range of shrink wrapping with single or multi-rows products. The automatic alignment greatly improves the production efficiency. After packaging the items have a compact and neat appearance which ensures the items’ quality and integrity of convenience transportation;
- GH-5030AE adopts international advanced manufacturing technology which is mainly designed for group sleeve packaging of boxes or bottles;
- The sealing blade is equipped with automatic anti-cutting protection function which effectively prevent from accidental cutting of operator’s hand or products; The machine is equipped with organic glass shield with automatic alarm function if the shield is opened, which greatly improves safety;
- The entire machine realizes unmanned operation which can be connect with the existing production line;
- Specially designed up and down film synchronously release mechanism to correct the distance of released film;
- The machine can automatically arrange and sort single or double rows packaging according to production requirements without separate molds;
- The usage of Siemens PLC and HMI to achieve the integrations of mechanism, electricity and pneumatic;
- Different packing matrix can be selected on the touch screen, while the production capacity can be counted;
- A specially designed sealing blade with Teflon coating makes sure solid sealing line, no cracking and anti-stick;
- Machine can be equipped with color film positioning system (option);
- Using imported Autonics sensors to make accurate positioning of various setting;
- SF-5030E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
- Chain bar conveying, using solid steel covered with durable imported silicone tube. SF-5030E can add density bar roller function or Teflon conveyor belt which is specially designed for small product;
- The use of French “Schneider “inverter controls transmission speed which has the function of infinitive speed;
- The chamber length is short which can greatly reduce the machine power; at same time it maintains good packing effect;
| Model | GH-5030AE | SF-5030E |
| Power | 1.2kw | 16kw |
| Power Supply | AC220V 1/3PH 60Hz | AC220/380V 3PH 60Hz |
| Max Packing Size L×W×H | 300×300×200mm | 1500×500×300mm |
| Tunnel Size L×W×H | / | 1500×500×300mm |
| Blade Length | 570mm | / |
| Air Temperature | 0-300℃ | 0-300℃ |
| Table Height | 820±50mm | 820±50mm |
| Packing Speed | 0-12m/min. | 0-20m/min |
| External Air Source | 6-8kg/cm2 | / |
| Shrink Film | PE | PE |
| Machine Size L×W×H | 2852×1378×1813mm | 2500×800×1650mm |
| Crate Size L×W×H | 2902×1428×1963mm | 2550×900×1800mm |
| G./N. Weight | 450/390kgs | 500/450kgs |
LAYOUT:
