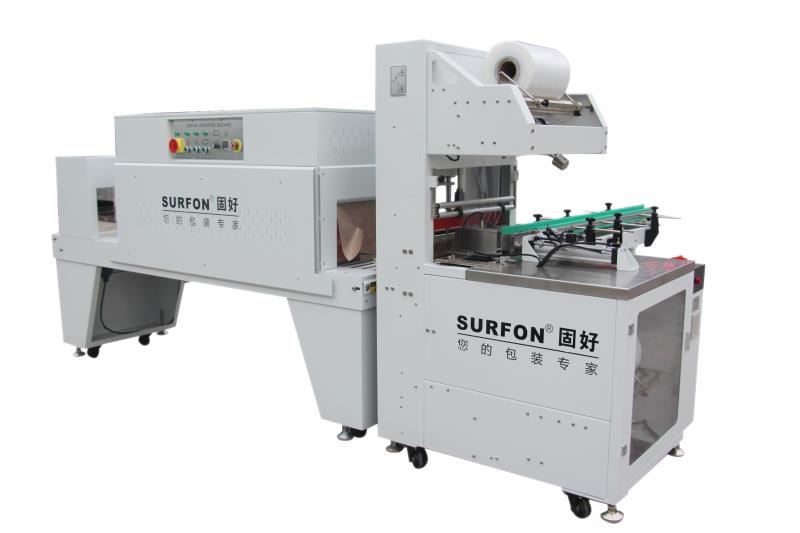

- GH-6030AE+SF-5030E Fully-auto Sleeve Sealer & Shrink Tunnel is designed for single or multiple tapes packing.
- It can work independently and also can connect with the production line to realize the unmanned assembly line with the function of auto feeding, film wrapping, sealing, shrinking, cooling and stereotypes in one time, which is widely used in mass packing production, and it can be used for different diameter and width of tape with high working efficiency;
- Suitable for BOPP Tape, PVC Tape, Adhesive Tape, etc;
- Applicable shrink film is PE;
- The machine adopts the advanced technology and production process based on European standard, which makes sure a stable performance;
- Different types of packaging can be selected on the touch screen, while the production capacity can be counted;
- With single row automatic sealing and shrinking option;
- The blade with imported Teflon treatment can endure a solid sealing line without sticking and cracking at high temperature;
- Sealing and cutting system with constant temperature makes the sealing straight, firm and beautiful;
- The machine adopts advanced SIEMENS PLC and HMI, meanwhile it also has safety protection and auto alarming device;
- The shrink tunnel uses stainless steel 304 heating elements ensure long life span; Shrinking temperature and conveyor speed is adjustable;
- Conveyor unit has Teflon mesh type or roller type for optional;
- Intelligent digital temperature controller, hot air circulation system, guarantee precise temperature;
- The packed goods are neat, compact and suitable for prolonged transport.
Technical Parameters
| Model | GH-6030AE | SF-5030E |
| Power | 1.5kw | 16kw |
| Power Supply | AC220V 1PH 50/60Hz | AC380V 3PH 50/60Hz |
| Max. Group Packing Size L×W×H | 400x300x300mm | 1200×400×200mm |
| Tunnel Chamber Size L×W×H | / | 1500x500x300mm |
| Blade Length | 570mm | / |
| Air Temperature | 0-300℃ | 0-300℃ |
| Feeding conveyor length | 1500mm | / |
| Table Height | 820±25mm | 820±25mm |
| Packing Speed | 0-12 m/min. | 0-20 m/min |
| External Air Source | 6-8kg/cm2 | / |
| Shrink Film | PE | PE |
| Machine Size L×W×H | 2850×1250x1755mm | 2500x800x1600mm |
| Crate Size L×W×H | 2900x1300x1905mm | 2600x900x1700mm |
| G./N. Weight | 450/390kgs | 500/450kgs |
