Fully-auto Motion Type Flow Packing Machine

Mainly used for packaging fruits and vegetables

Configure This Packaging System

For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material and thickness. Describe how products arrive from upstream equipment, the required discharge or downstream connection, conveyor height, accumulation needs, and available layout space. We also need your electrical supply, frequency, compressed-air pressure and capacity, and any preferred component or control standard. Please identify the destination market and required safety or electrical standards. Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.

Email:info@kukoshrink.com

WhatsApp / WeChat

+86 189-1774-9969

REQUEST A QUOTE

Product Features

· Detects the length and width of items automatically;

· Adopts advanced continuous motion type cross sealing blade;

· Down film roll is easier to be changed;

· The back sealing bar is a combination of hot melt and toothed cold knife to allow the bags to be easily torn off in the user’s hand;

· The usage of automatic film punching and waste material recycling technology to eliminate mispackaging.

Technical Parameters

Model	GH-400VS
Power	10 kw
Power Supply	AC 220/380V 1/3PH 50/60HZ
Cross Blade Length	400mm
Packing Size	100-600 x 50-250 x 10-150mm
Packing Speed	0~30pcs/min.
Working Table Height	925 ± 25mm
Shrink Film	OPP/BOPP
Machine Size L x W x H	5500 x 2350 x 1625mm
Crate Size L x W x H	5600 x 1340 x 1825mm
G./N. Weight	900/800kgs

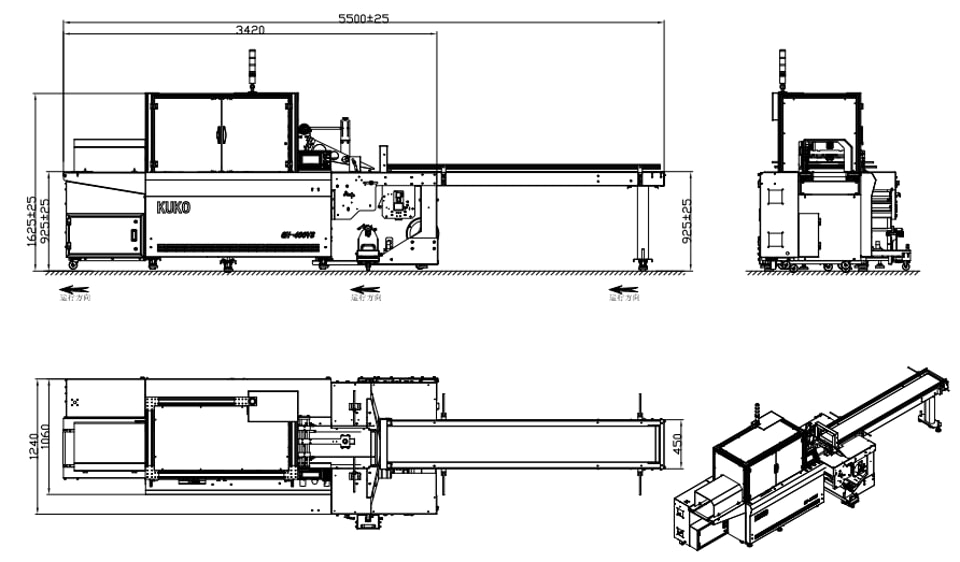

Layout

Before purchasing, please confirm the product size range, packaging film specification, expected speed, infeed spacing, and line direction for the application. Also provide available power and compressed-air conditions, installation limits, and interfaces with upstream or downstream equipment. These details allow KUKO to review the proposed configuration, included options, utility requirements, and technical scope against the actual production line before quotation and order confirmation.
