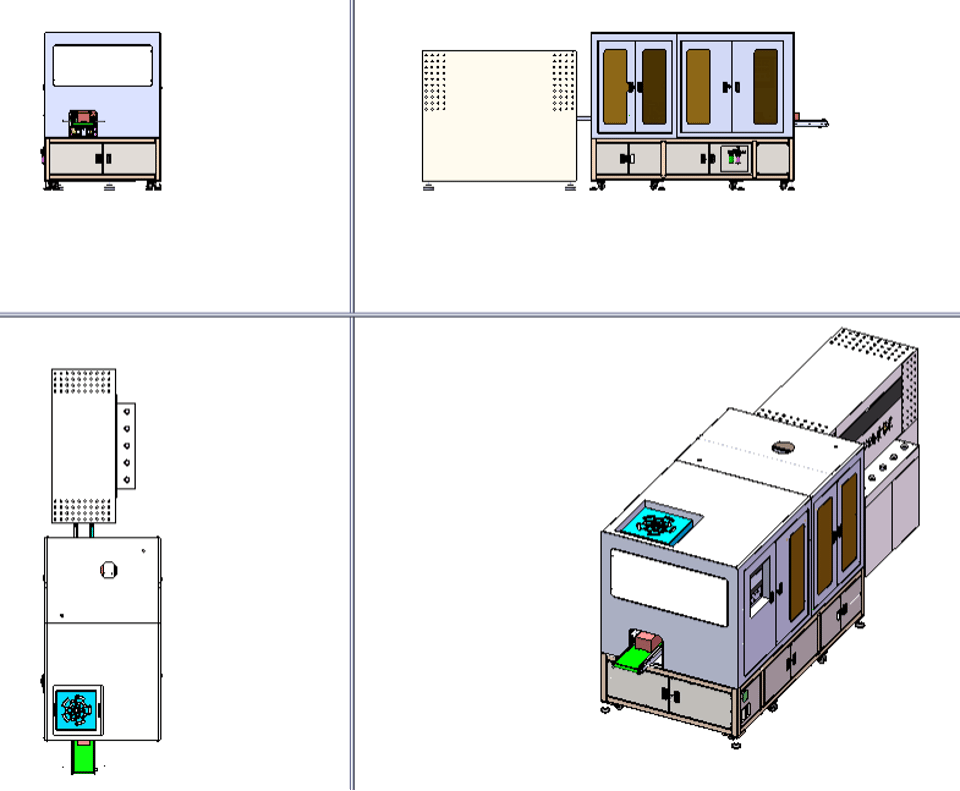

Fully-auto Corner Sealer & Shrink Tunnel

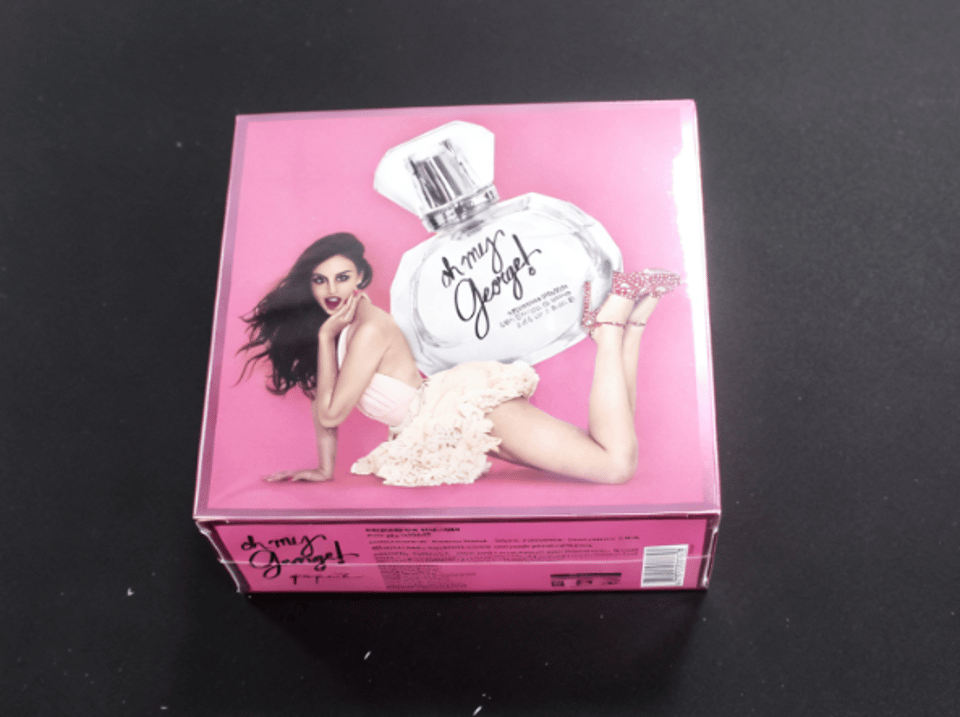

Gift boxes, wine boxes, cosmetic box, high-end packaging, electronic product boxes, rigid carton goods.Suitable for packing without dog ears

Configure This Packaging System

For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material.

KUKO engages with every project from the initial application review. We assess product characteristics, packaging format, film type, required output, operating speed, and upstream and downstream equipment interfaces to ensure the machine configuration aligns with your production process.

Throughout manufacturing, rigorous build-quality inspections, configuration validation and pre-shipment trial preparations are systematically managed and reviewed with the customer to achieve full mutual alignment. KUKO additionally manages the full scope of technical documentation compilation, export compliance documentation, installation scheduling, on-site commissioning, operator training handover and ongoing after-sales support. Every set of documentation and service provision is formally defined and confirmed for each individual project enquiry.

Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.

Email:info@kukoshrink.com

WhatsApp / WeChat

+86 189-1774-9969

REQUEST A QUOTE

Product Features

· Change the items by selecting recipe mode;

· Auto adjustment of product size as an option;

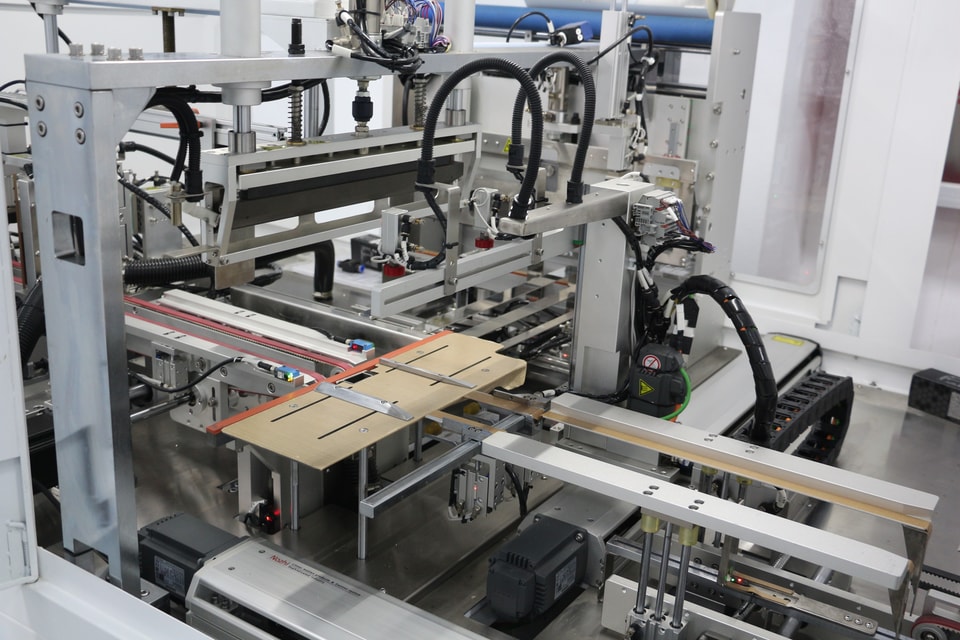

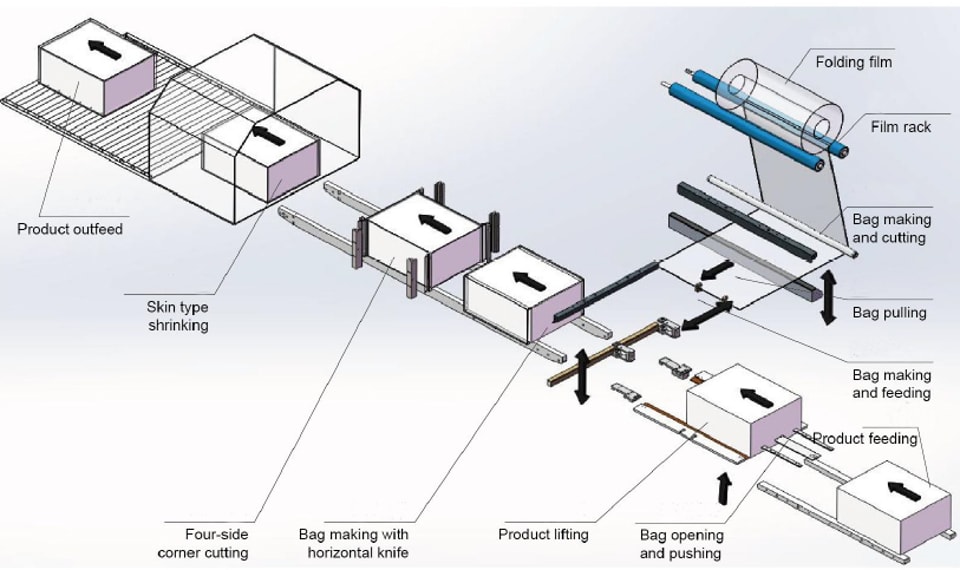

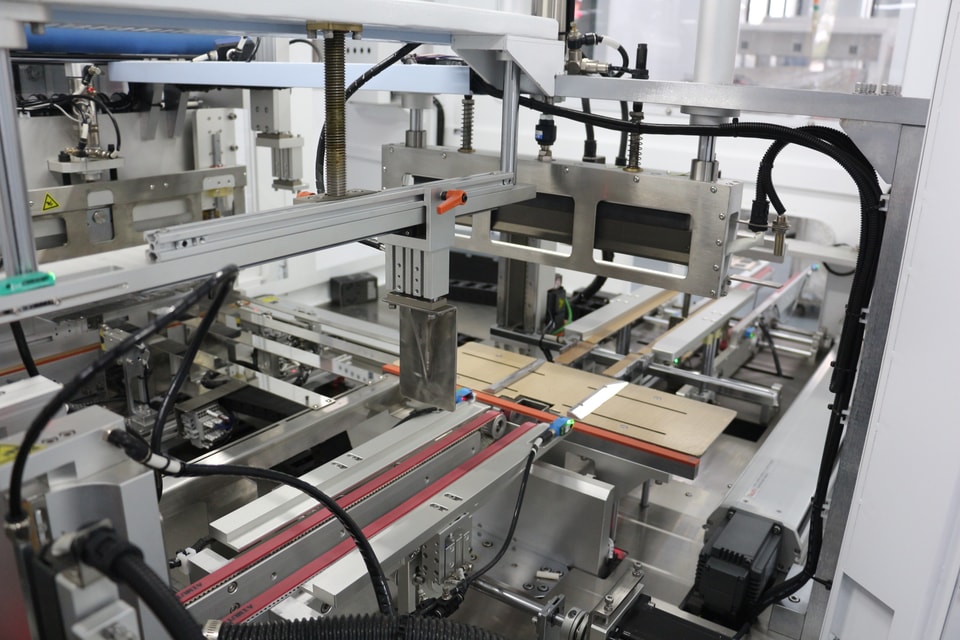

· The design of cutting off four corners perfectly avoids the trouble of “dog ears”. The corner knife adopts a four-corners linkage mechanism for fast and accurate cutting and sealing;

· The automatic negative pressure suction of waste scraps can effectively prevent the floating of waste materials from affecting the next process;

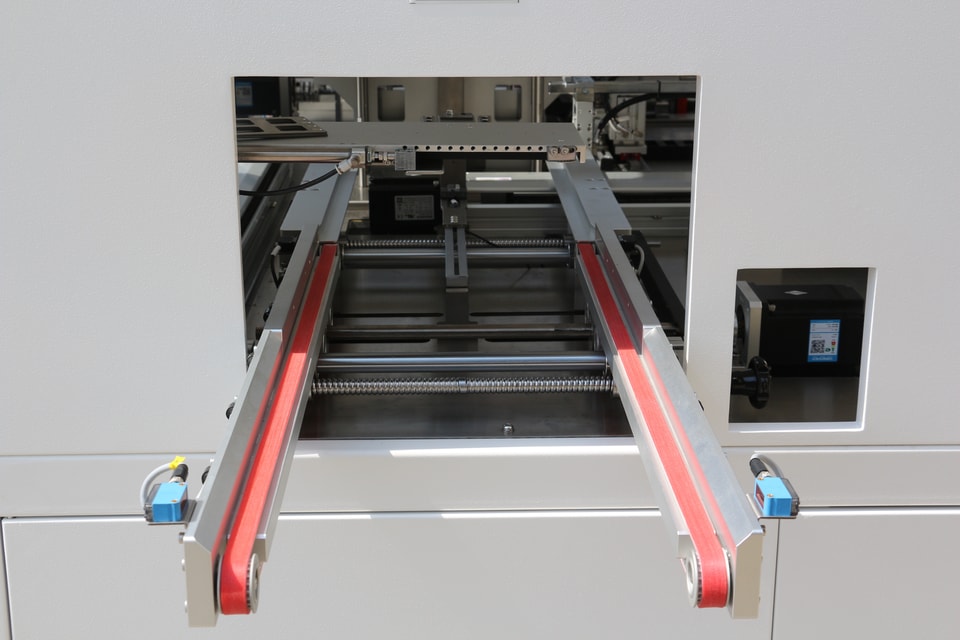

· Added high sensitivity sensor at the feeding point, interlocked with PLC via dual logic to ensure the accuracy of high-speed feeding;

· The servo motors are configured to control the coordinated work of the conveyor parts, the cross-cutting knife and the corner cutting knife respectively. Meanwhile, each servo motor has a reasonable connection with PLC to achieve high-speed and stable operation of the equipment.

Technical Parameters

Model	GH-550FC	SF-5030LG
Power	12 kw	16 kw
Power Supply	AC 220/380V 1/3PH 50/60HZ	AC 220/380V 3PH 50/60HZ
Packing Size	120~450 × 80~300 × 30~150mm	Chamber Size L × W × H 1500 × 500 × 300mm
Packing Speed	0~12pcs/min.	0~30m/min.
Shrink Film	Cross-linked Film	Cross-linked Film

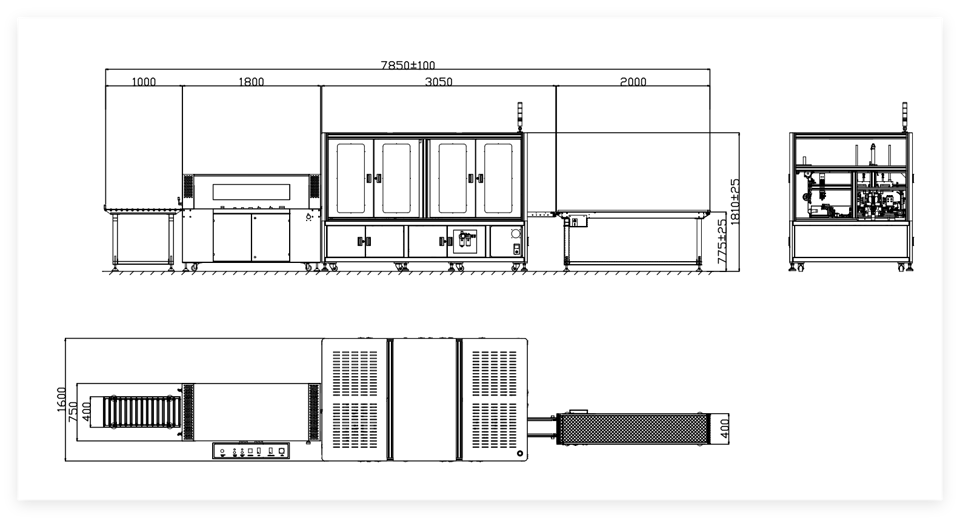

Machine Size L × W × H	3050 × 2000 × 1810mm	1800 × 985 × 1260mm
Crate Size L × W × H	3150 × 1700 × 2000mm	1900 × 1085 × 1460mm
G./N. Weight	1400/1300kgs	550/500kgs
