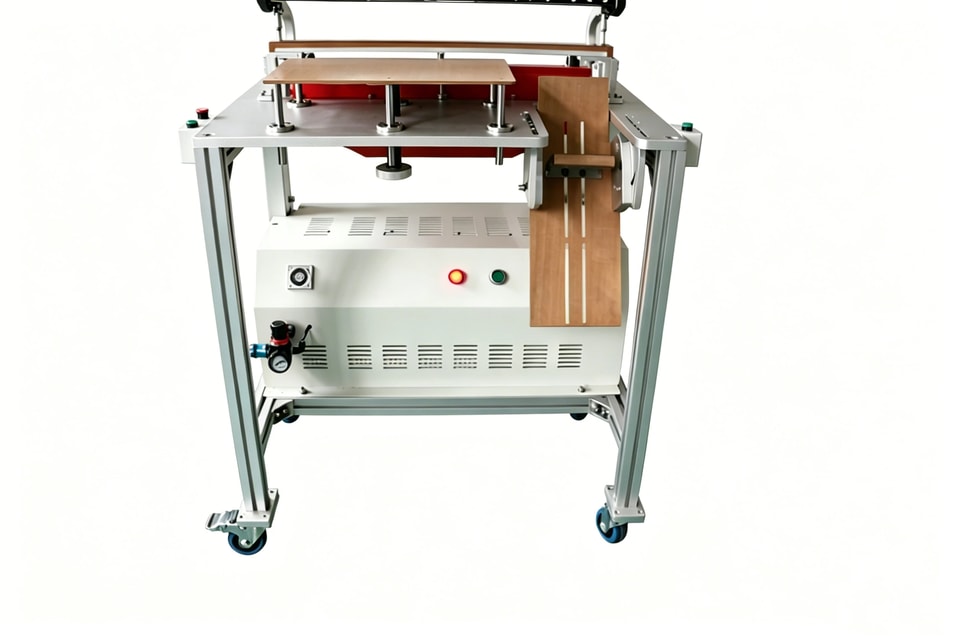

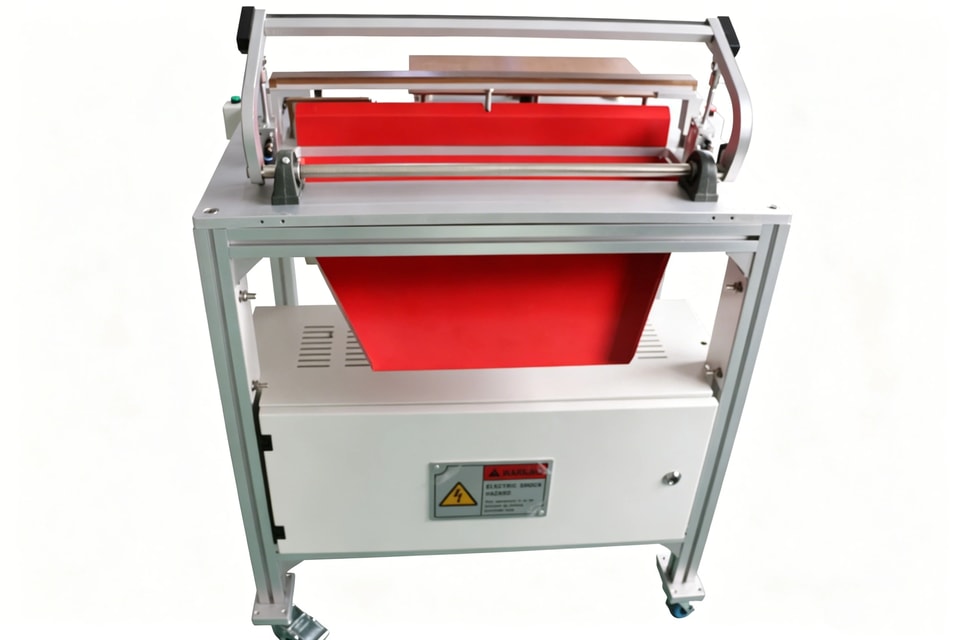

Fully-auto Corner Sealer & Shrink Tunnel
Fully-auto Corner Sealer & Shrink Tunnel
Gift boxes, wine boxes, cosmetic box, high-end packaging, electronic product boxes, rigid carton goods.
Configure This Packaging System
For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material and thickness. Describe how products arrive from upstream equipment, the required discharge or downstream connection, conveyor height, accumulation needs, and available layout space. We also need your electrical supply, frequency, compressed-air pressure and capacity, and any preferred component or control standard. Please identify the destination market and required safety or electrical standards. Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.
· Anti-stick high-temperature alloys special type sealing knife which can seal neatly, without cracking, coking and smoking; The sealing blade with Teflon device ,it can sealing the boxes’ corner, non-stick coating layer makeshift non-sticking.
· Control the sealing time by time relay;
· Sealing knife with automatic anti mistakenly cutting and anti-overheating protection device effectively protect the operator away from accidental cutting;
· Imported electrical components assure stable performance;
· Imported heat - resistant insulation curtain greatly reduces heat loss;
| Model | GH-400C | GH-600C |
|---|---|---|
| Power | 2.5kw | 3.5kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | |
| Sealing Size | 380mm | 580mm |
| Max. Packing Height | 120mm | 190mm |
| External Air Source | 5~8 bar | |
| Shrink Film | POF | |
| Machine Size L × W × H | 650 × 525 × 980mm | 830 × 590 × 980mm |
| Crate Size L × W × H | 700 × 700 × 1100mm | 880 × 700 × 1100mm |
| G./N. Weight | 85/75kgs | 115/105kgs |

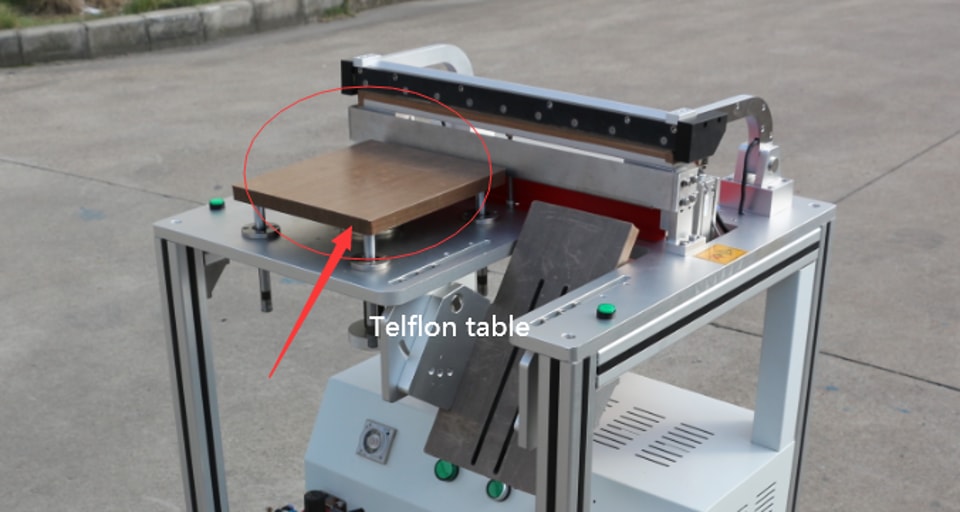

Choose the suitable POF bags, and put the boxes into the box, adjust the distance of the telfon table, sealing the bags.

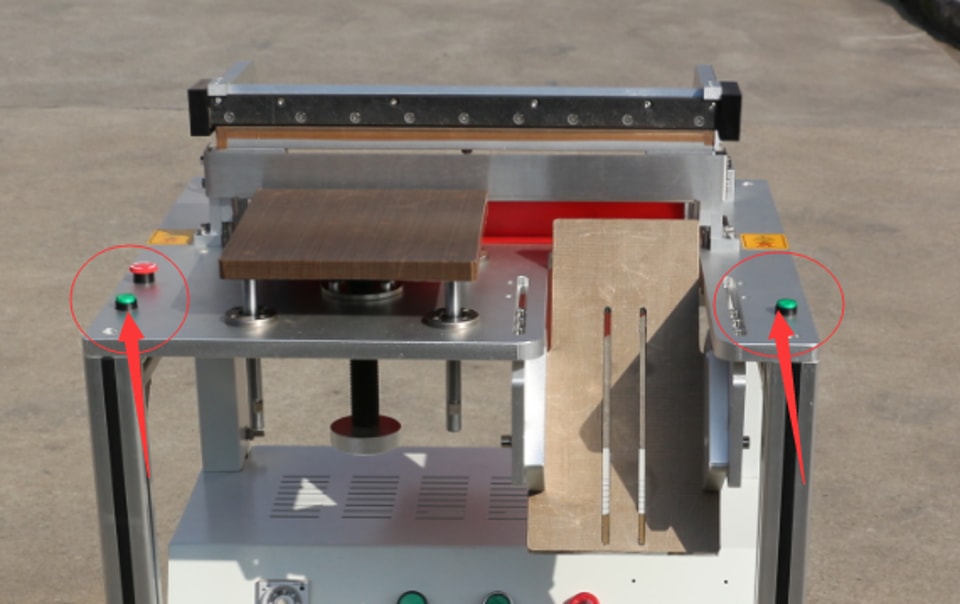

For the sake of safety, we press the two buttons at the same time to make the sealing bar working.

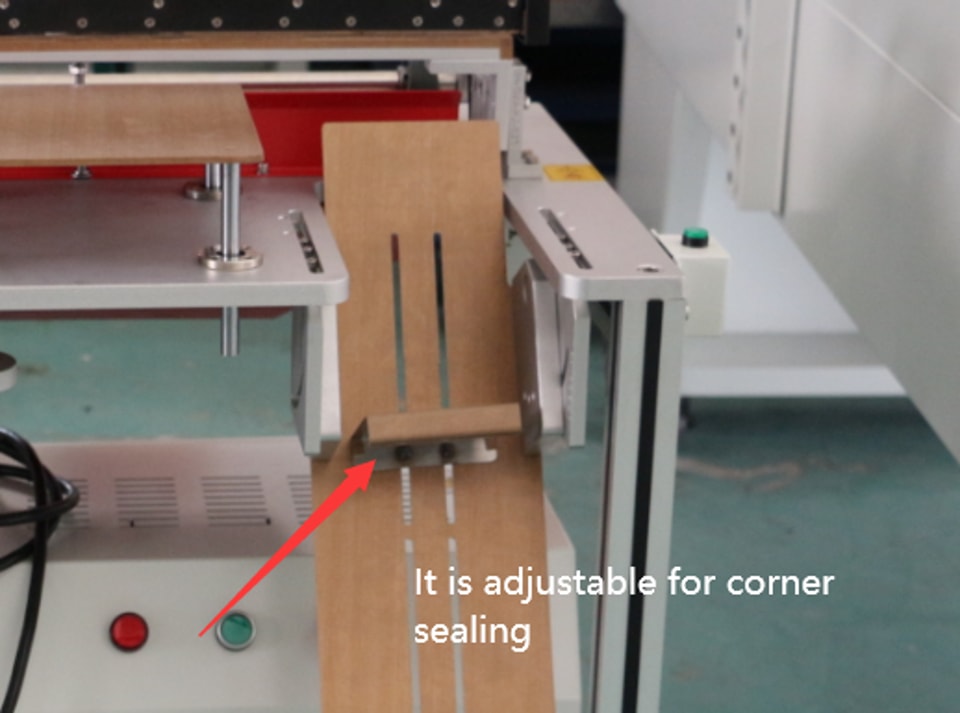

Adjust the suitable position for the corner sealing.

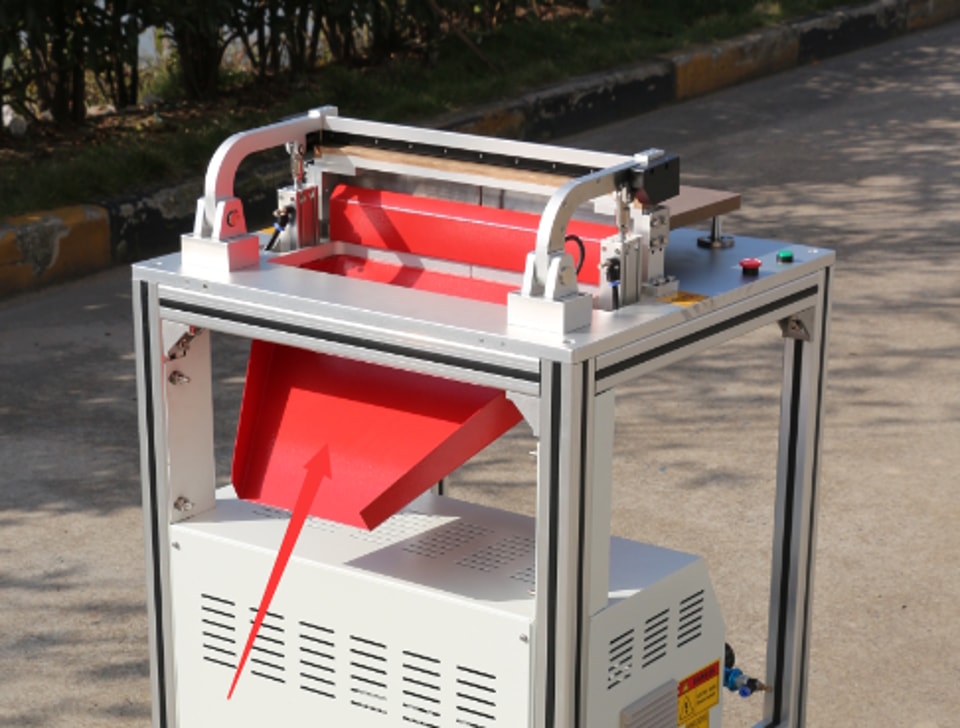

The waste film will slide down from the slope.
