Fully-auto Economical Vertical L Bar Sealer & Shrink Tunnel

General daily commodities, books, toys, small home appliances, food boxes, regular square/rectangular products

Email:info@kukoshrink.com

WhatsApp / WeChat

+86 189-1774-9969

REQUEST A QUOTE

Product Features

· Speed can reach 30packs/min.;

· It saves the working space;

· Two groups of horizontal and vertical sensors are easy to switch for thin or small packages which can easily complete sealing packaging operations;

· Separate motor is used to control the auto winding device which makes the waste film is not too loose or to tight to crack, the waste film can be easily removed.

Technical Parameters

Model	GH-400XL	SF-5030LG
Power	3 kw	16 kw
Power Supply	AC 220/380V 1/3PH 50/60HZ	AC 220/380V 3PH 50/60HZ
Packing Size	L+H ≤ 530mm, W+H ≤ 430mm H ≤ 200mm	Chamber Size L × W × H 1500 × 500 × 300mm
L-bar Blade Size	L550 × W450mm	/
Packing Speed	0-20m/min.	0-20m/min.
Working Table Height	825 ± 25mm	825 ± 25mm
Shrink Film	POF	POF

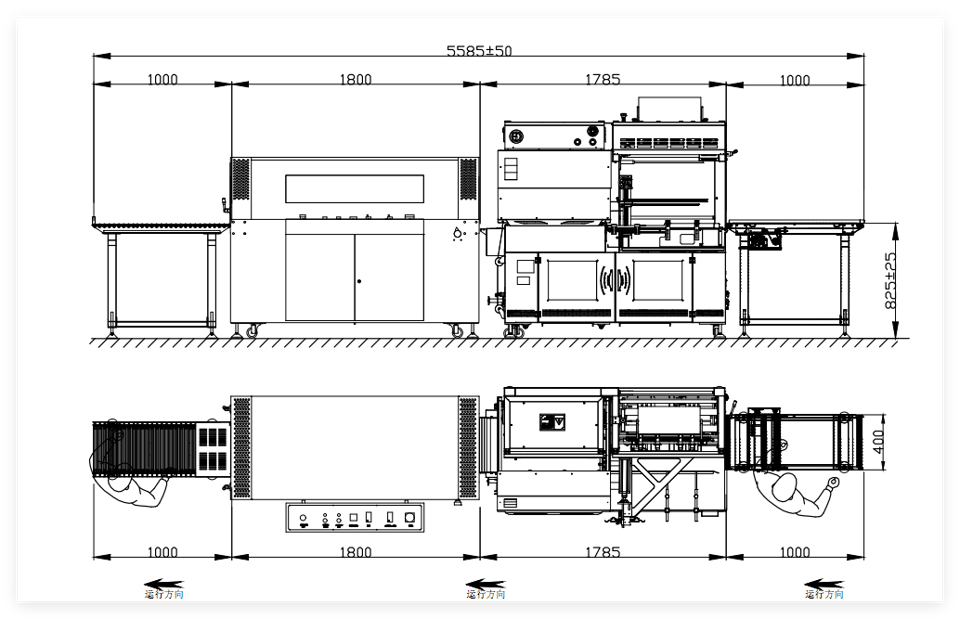

Machine Size L × W × H	1785 × 850 × 1450mm	1800 × 985 × 1310mm
Crate Size L × W × H	1890 × 950 × 1700mm	1900 × 1085 × 1460mm
G./N. Weight	500/450kgs	485/450kgs
