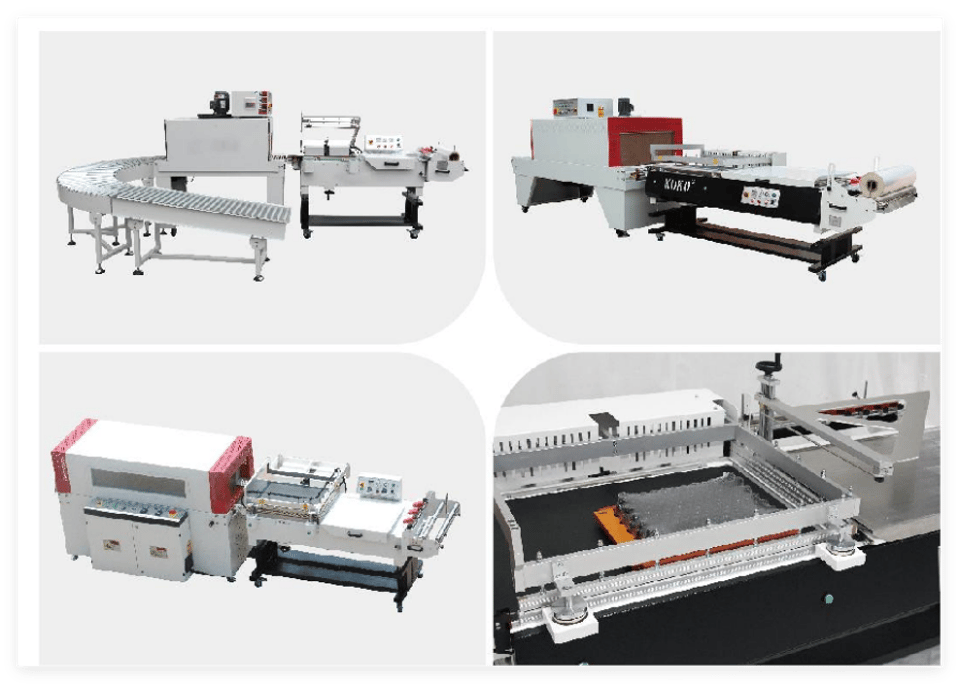

Semi-auto L Bar Sealer & Shrink Tunnel

















Semi-auto L Bar Sealer & Shrink Tunnel
General daily commodities, books, toys, small home appliances, food boxes, regular square/rectangular products.
Downloads

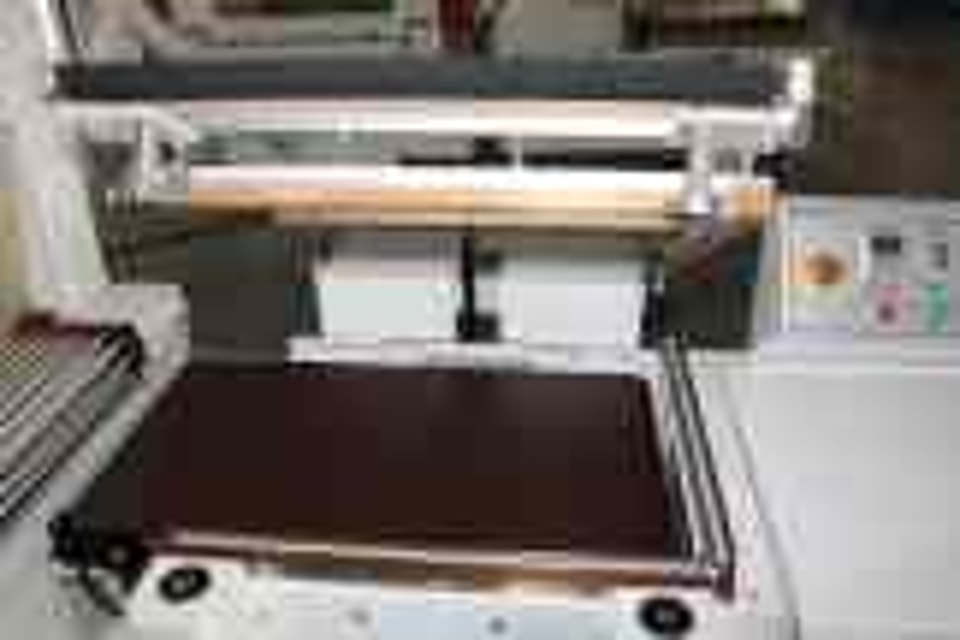

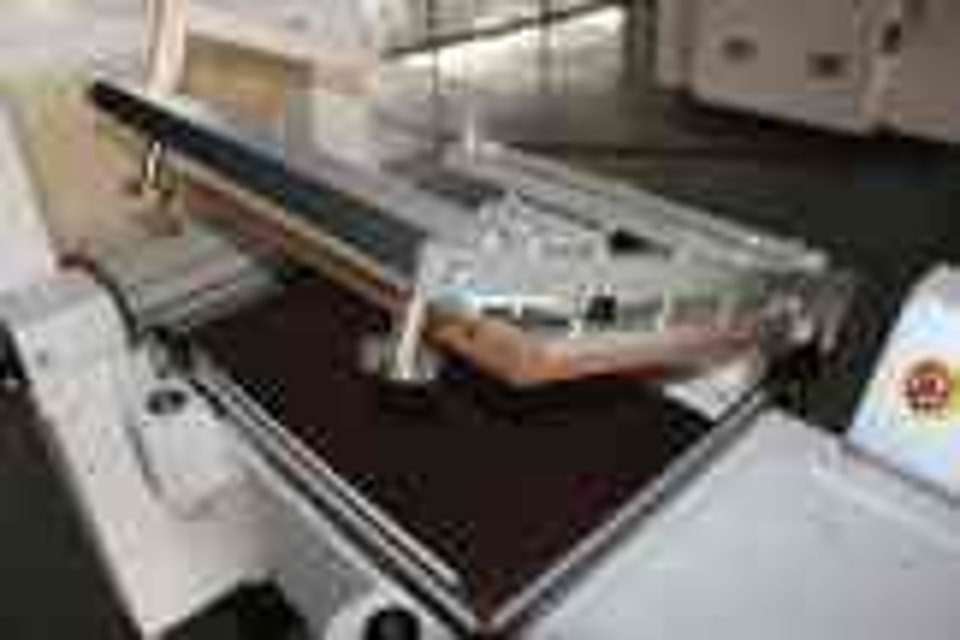

· Adopting L bar sealing, automatically feeds the products into shrink chamber and complete the shrinking process;
· Sliding bracket can accommodate shrink film of various specifications while the perforating device can operate smoothly;

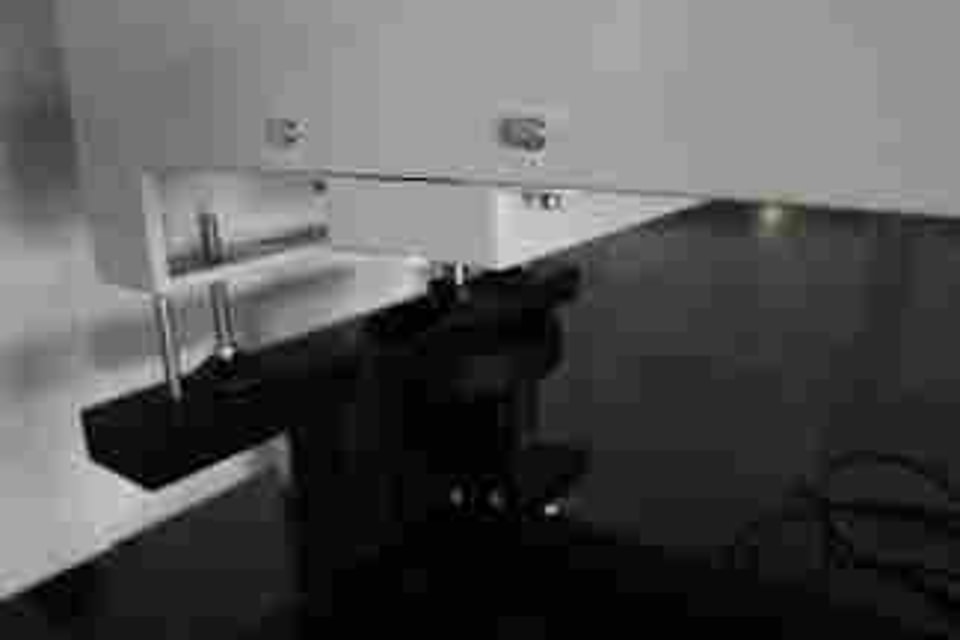

· The handwheel facilitates adjusting the height of the conveyor belt to center the sealing line;

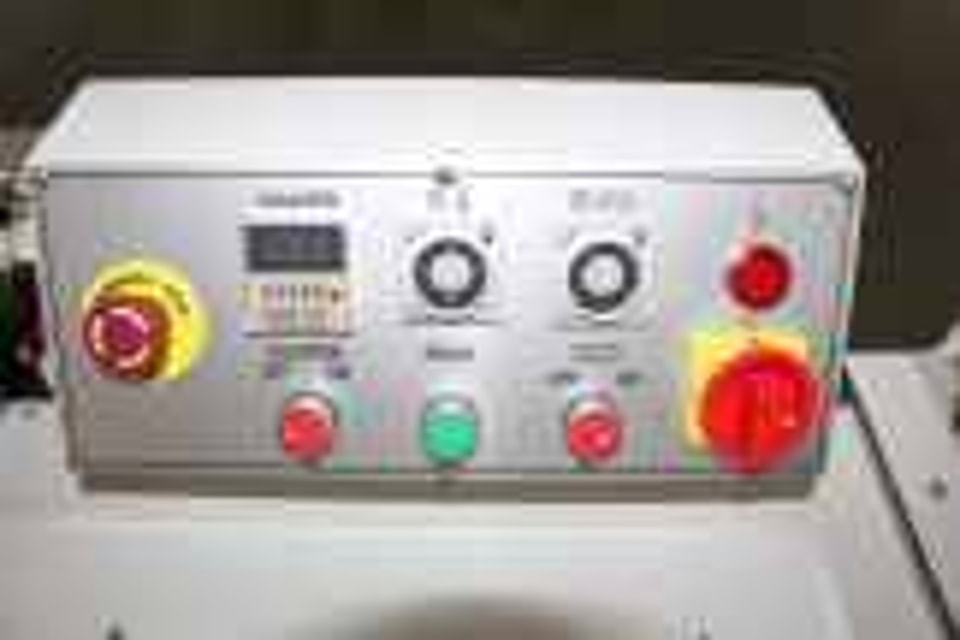

· The sealing time controlled by time relay for precise adjustment.
· Kissing device as an option;
· Imported horizontal and vertical detection sensors for choices. Easily finished the sealing of thin and small items;
· The cutter has auto protection function to prevent from accidental cutting;

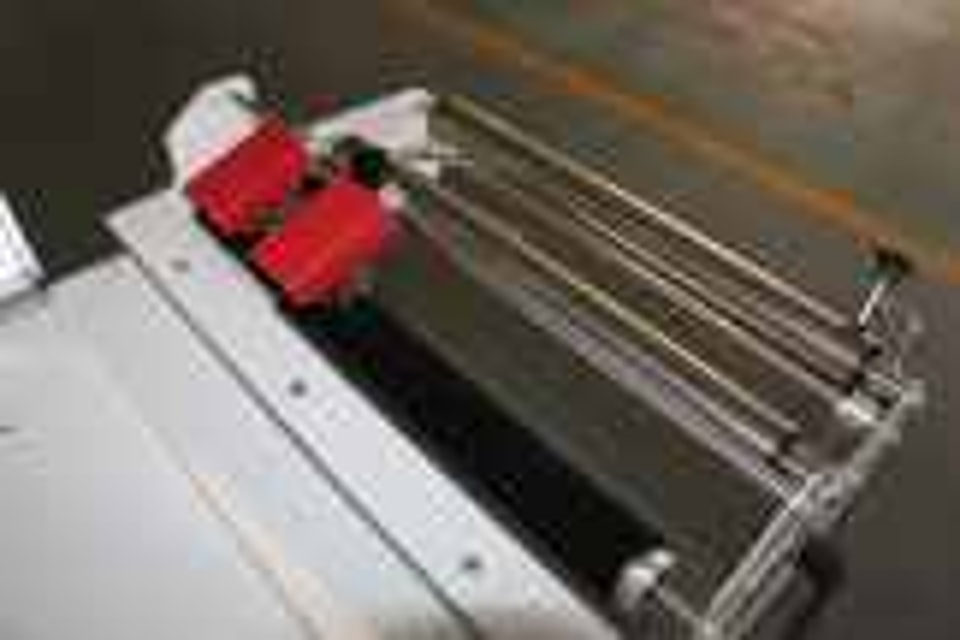

· Sealing Blade adopts the alloy steel with Dupont Teflon which is anti-stick coating & anti-high temperature. The sealing will not have cracking, coking and smoking with zero pollution.

| Model | SF-20LG | SF-4525 |
|---|---|---|
| Power | 2.8 kw | 9 kw |
| Power Supply | AC 220V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| L-bar Blade Size | 500 × 450mm | / |
| Packing Size | L+H ≤ 530, W+H ≤ 430mm H ≤ 200mm | Chamber Size L × W × H 1000 × 450 × 250mm |
| Packing Speed | 0~15m/min. | 0~15m/min. |
| Working Table Height | 825 ± 25mm | 825 ± 25mm |
| Shrink Film | POF | POF |
| Machine Size L × W × H | 1800 × 930 × 1050mm | 1300 × 720 × 1500mm |
| Crate Size L × W × H | 1900 × 1030 × 1250mm | 1700 × 800 × 1250mm |
| G./N. Weight | 230/185kgs | 315/245kgs |
