Economical Double Side Sealer & Shrink Tunne

Developed for large, long and heavy products, this automatic double-side sealing and shrinking system provides fully enclosed PE-film packaging with no product-length limit. Adjustable side-seal positions support sealing strength across different heights, while automatic waste-film winding simplifies cleanup.

Configure This Packaging System

For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material and thickness. Describe how products arrive from upstream equipment, the required discharge or downstream connection, conveyor height, accumulation needs, and available layout space. We also need your electrical supply, frequency, compressed-air pressure and capacity, and any preferred component or control standard. Please identify the destination market and required safety or electrical standards. Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.

Email:info@kukoshrink.com

WhatsApp / WeChat

+86 189-1774-9969

REQUEST A QUOTE

Product Features

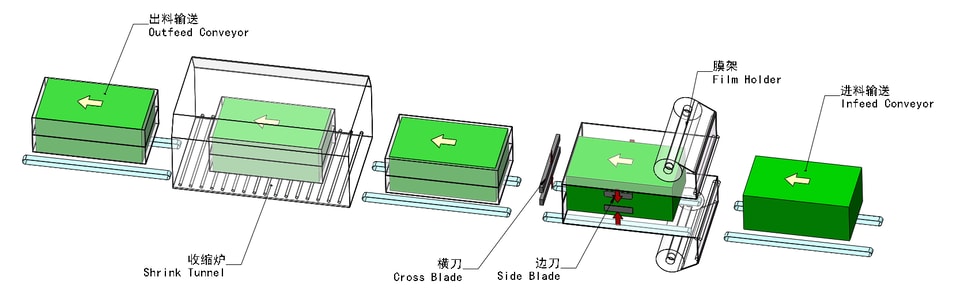

· GH-6030AFE Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts advanced

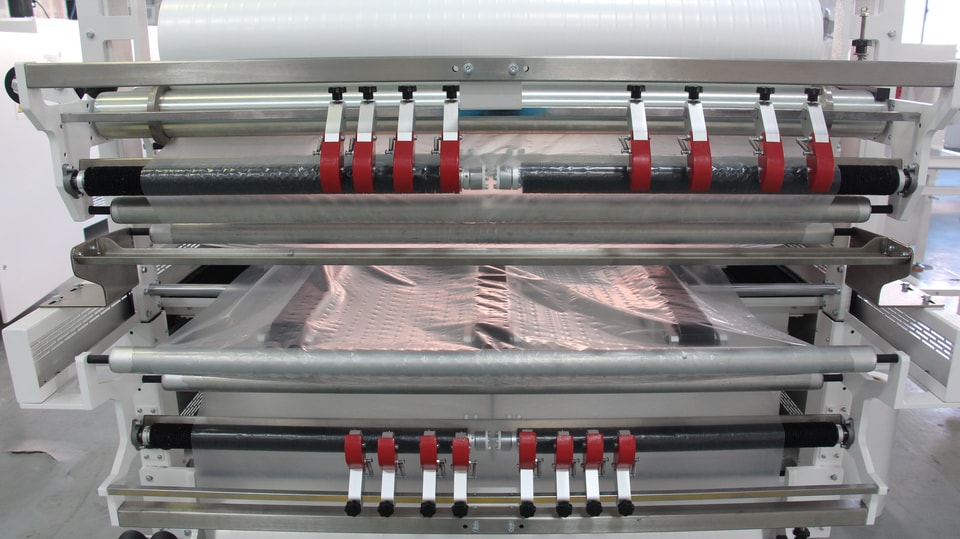

high speed double-side sealing technology. It has up & down single film rollers. The film is in sync with the items.

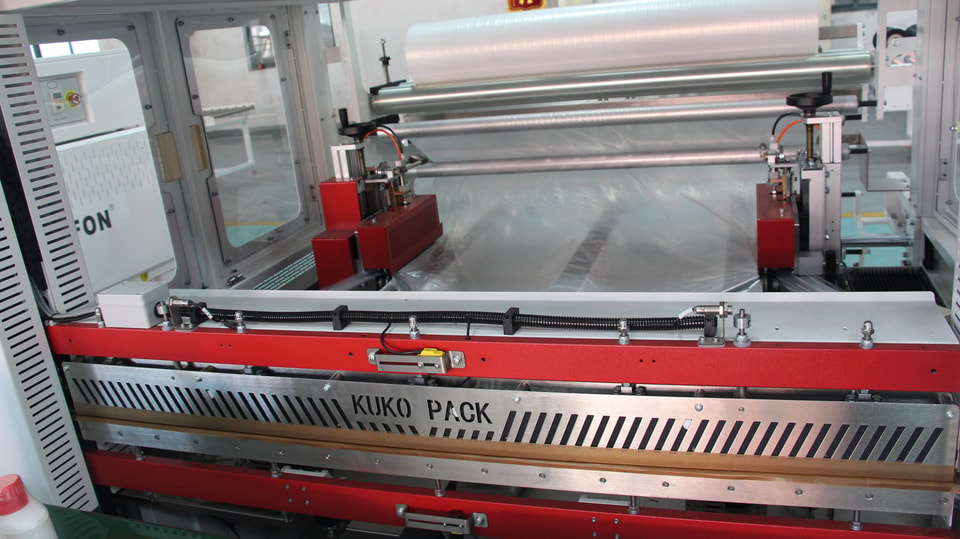

While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps

good sealing;

· Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider and

heavy products’ fully-closed packaging with PE film, such as doors, furniture, ladders, mattresses and other

heavy and oversized objects;

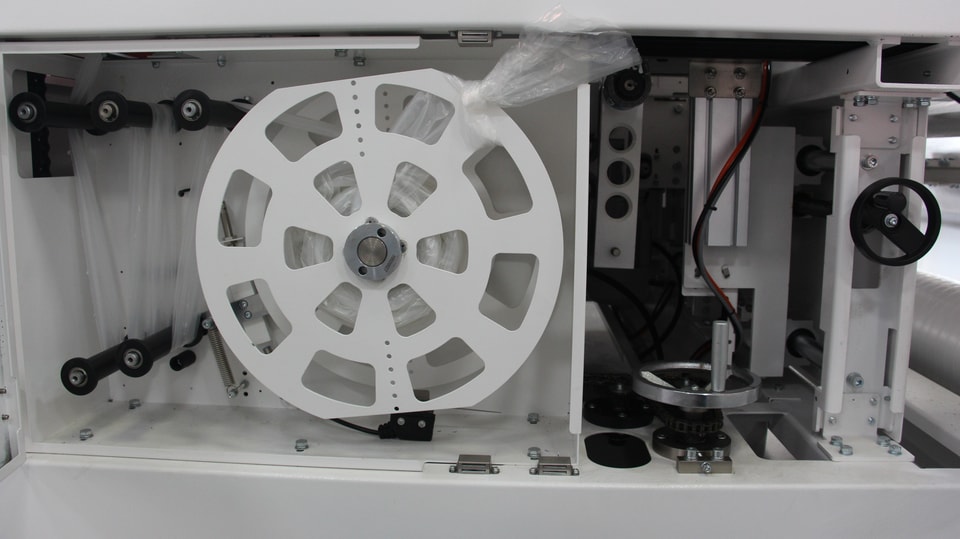

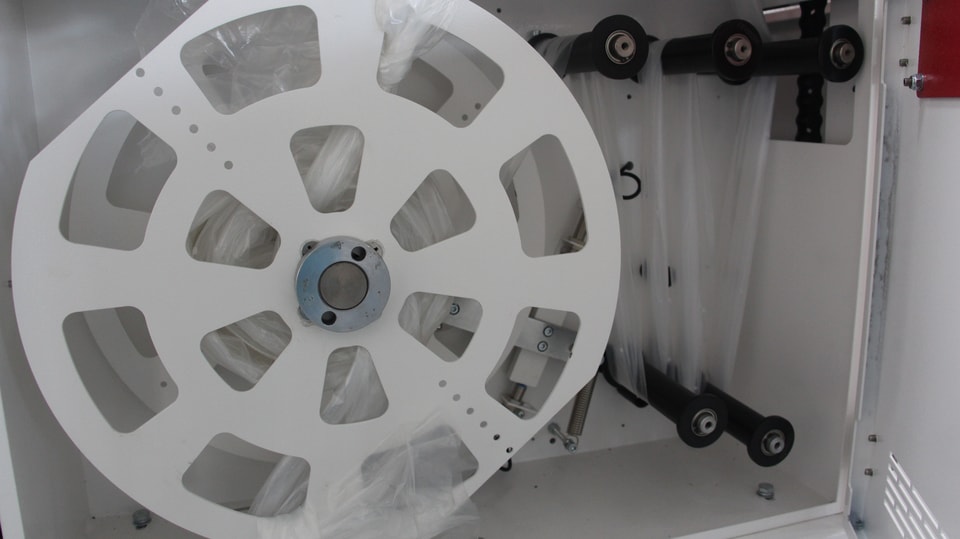

· The waste film can be winded automatically for easily clean-up;

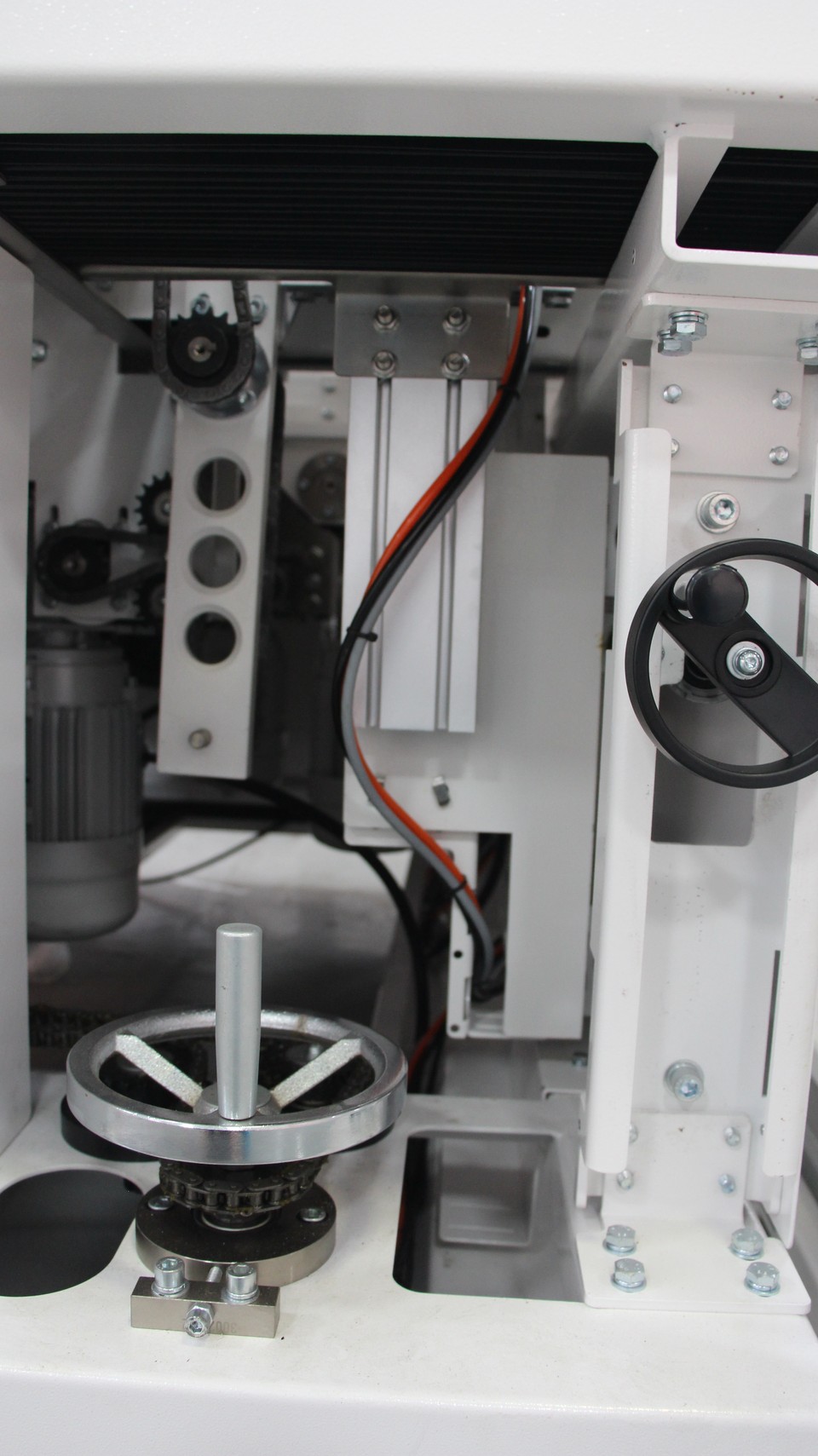

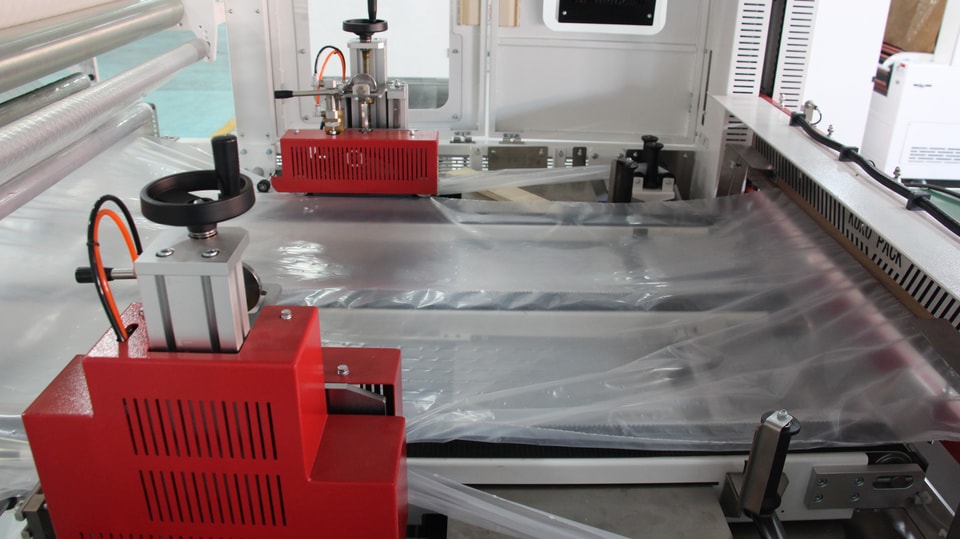

· Side sealing lines can be adjusted to the desired position which based on the product’s height in order to

achieve excellent sealing strength results;

· For 0.04 ~ 0.18mm thickness PE shrink film;

· Input & output conveyors and colored film positioning function can be added as per customer demand;

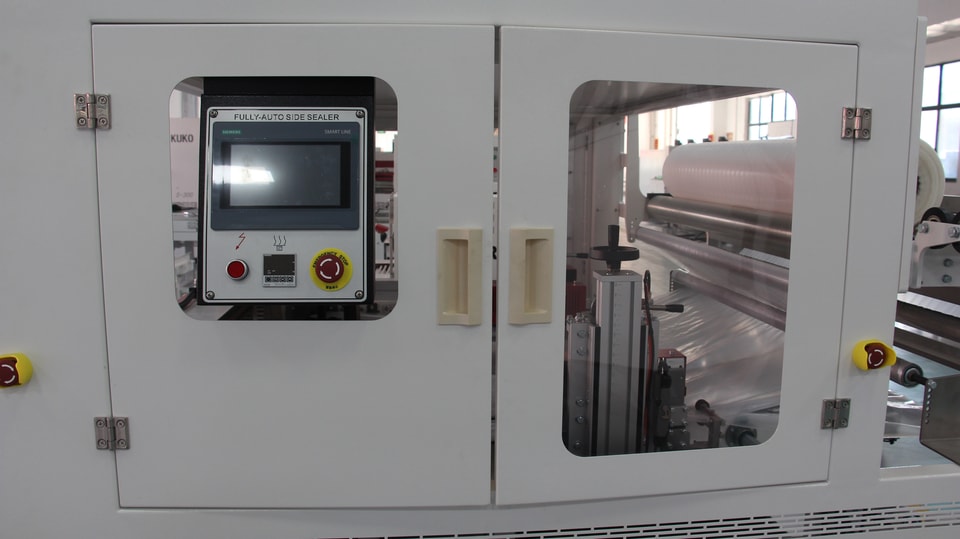

· Humanized touch smart operation interface is convenient for the operator to use;

· Siemens PLC program controller achieves the integrations of mechanism, electricity and pneumatic;

· Imported photo sensors to detect the horizontal and vertical section to satisfy different products’ packaging;

Technical Parameters

Model	GH-6030AFE (1300mm)	GH-6030AFE (1600mm)	SF-13040E
Power	6 kw	6.5kw	55kw
Power Supply	AC 220/380V 3PH 50/60HZ
Cross Blade Length	1300mm	1600mm	/
Packing Size	L(unlimited), W+H ≤ 1200mm, H≤150mm	L(unlimited), W+H ≤1500mm, H≤150mm	Chamber Size L × W × H 2500 × 1300 × 400
Packing Speed	0 −15m/min.
Working Table Height	825 ± 25mm
Shrink Film	PE/POF		PE

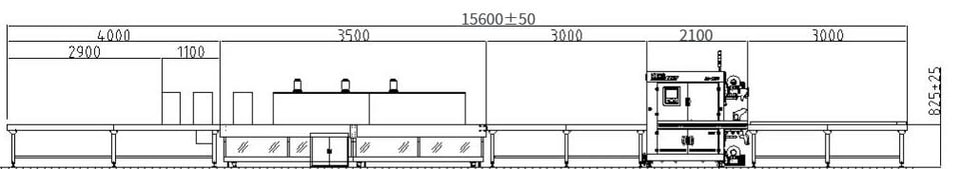

Machine Size L × W × H	2100 × 1840 × 1780mm	2100 × 2140 × 1780mm	3500 × 2220 × 1720mm
Crate Size L × W × H	2200 × 1900 × 1930mm	2200 × 2200 × 1930mm	3600 × 2270 × 1870mm
G./N. Weight	1300/1200kgs	1600/1500kgs	1850/1745kgs
