Fully-auto Mix Production Sealer & Shrink Tunnel
Fully-auto Mix Production Sealer & Shrink Tunnel
Mixed batch production packaging, food, daily chemicals, small home appliances, gifts, printed matter, and irregular mixed-size products.
Email:info@kukoshrink.com
WhatsApp / WeChat
Product Features
· Applied to mixed production of board lines;
· Identify product size by centered measurement function, bar code, QR code, RFID code or E-tag code;
· Auto-film lifting system makes film loading more strength-saving.
· Two sides of sealing bar with vertical sealing linkage;
· Adopting clamping device to separate the waste film, equipped drawer type cleaning cabinet is more convenient.
Technical Parameters
| Model | GH-6030AFS | SF-15040E |
| Power | 15.5 kw | 56kw |
| Power Supply | AC 220/380V 3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | 2400 x 1100 x 150mm | W 1300 x H300mm |
| Min. Packing Size | 1000 x 500 x 10mm | Chamber Size L x W x H 4000 x 1500 x 700mm |
| Cross Blade Length | 1500mm | / |
| Side Blade Length | 2600mm | / |
| Packing Speed | 0 ~25m/min. | 0 ~25m/min. |
| Working Table Height | 900 ± 25mm | 900 ± 25mm |
| Shrink Film | PE/POF | PE/POF |
| Max. Dia of Film Roll | 350mm | / |
| Machine Size L x W x H | 4400 x 2550 x 2200mm | 5000 x 1820 x 1850mm |
| Crate Size L x W x H | 4500 x 2650 x 2350mm | 5100 x 1900 x 2000mm |
| G./N. Weight | 3700/3500kgs | 2700/2550kgs |

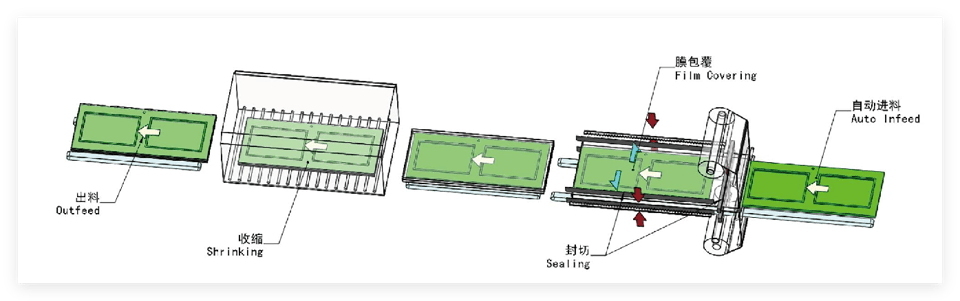

Working Flow

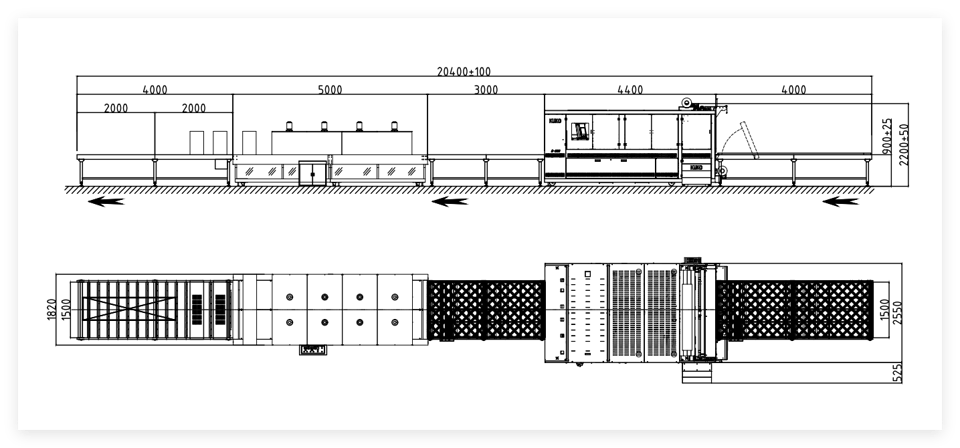

Layout
