Fully-auto Double Side Sealer & Shrink Tunnel

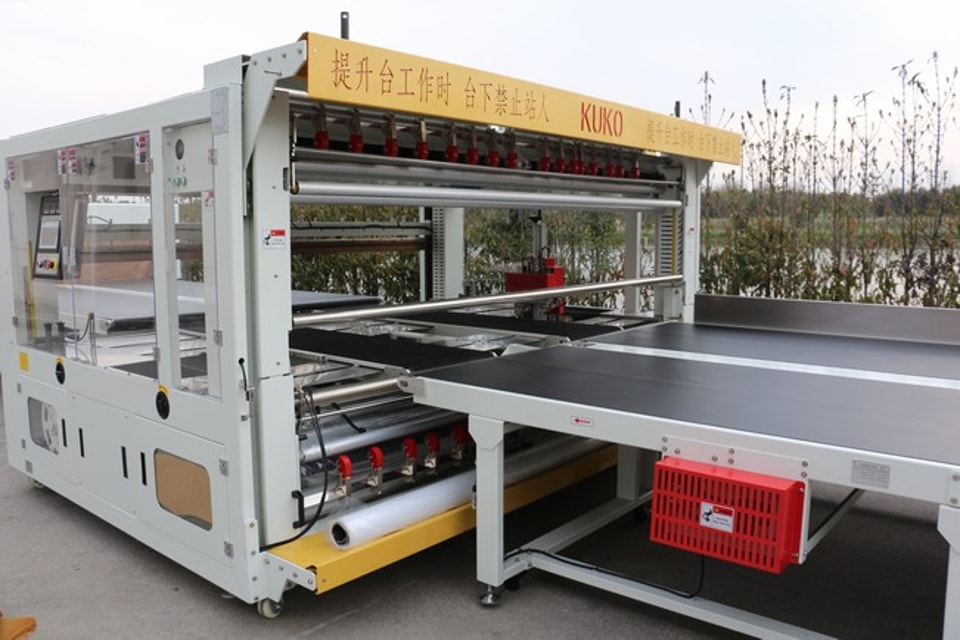

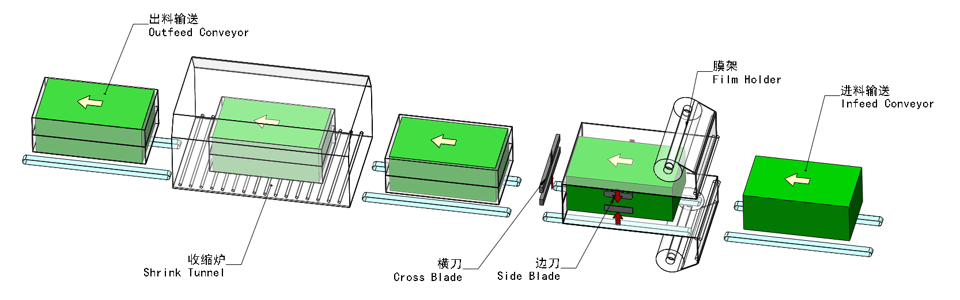

· GH-6030AF Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts advanced high speed double-side sealing technology. It has up & down single film rollers. The film is in sync with the items. While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps good sealing;

· Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider, and heavy products’ fully-closed packaging with PE film, such as doors, furniture, ladders, mattresses, and other heavy and oversized objects;

· The waste film can be winded automatically for easily clean-up;

· Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing strength results;

· For 0.04 ~ 0.18mm thickness PE shrink film;

· Input & output conveyors and colored film positioning function can be added as per customer demand;

· Humanized touch smart operation interface is convenient for the operator to use;

· Siemens PLC program controller achieves the integrations of mechanism, electricity and pneumatic;

· Imported photo sensors to detect the horizontal and vertical section to satisfy different products’ packaging;

· Assorted shrink tunnel SF-15070E uses imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
