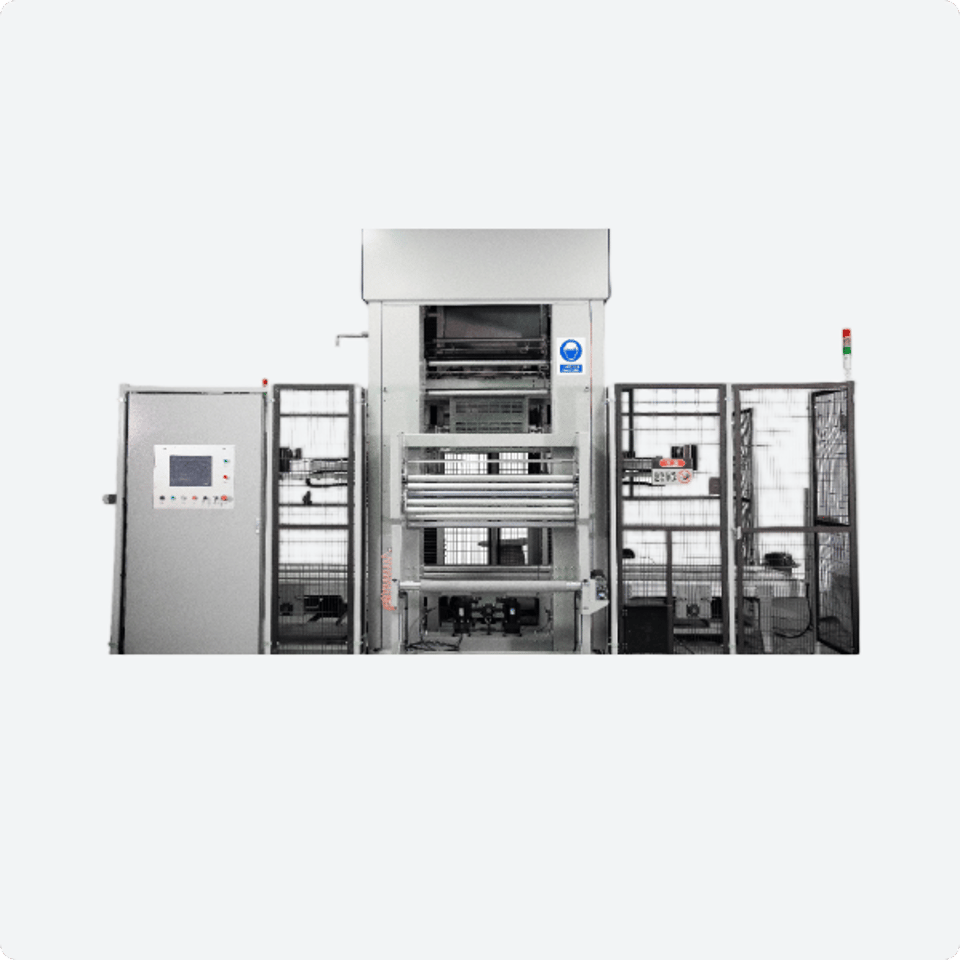

Fully-auto Cold Stretch Hooding Machine
















Fully-auto Cold Stretch Hooding Machine
Palletized food cases and cartons,
Refrigerators, washing machines,
Sand, cement, plaster bags, construction parts
Downloads
Model | SF-CS | External Air Source | 5~8 bar |
Power | 16.5 kw | Power Supply | AC 380/ 220V 3PH 50/60Hz |
Max Packing Size L x W x H | 1200 x 1200 x 1800 mm | External Air Source | 5 ~ 8 Bar |
Min. Packing Size L x W x H | 700 x 500 x 800 mm | Max. weight of Film Roll | 1000kgs |
Packing Speed | 50~80 pallets / hour | Applicable Film | PE Stretch Hood Film |

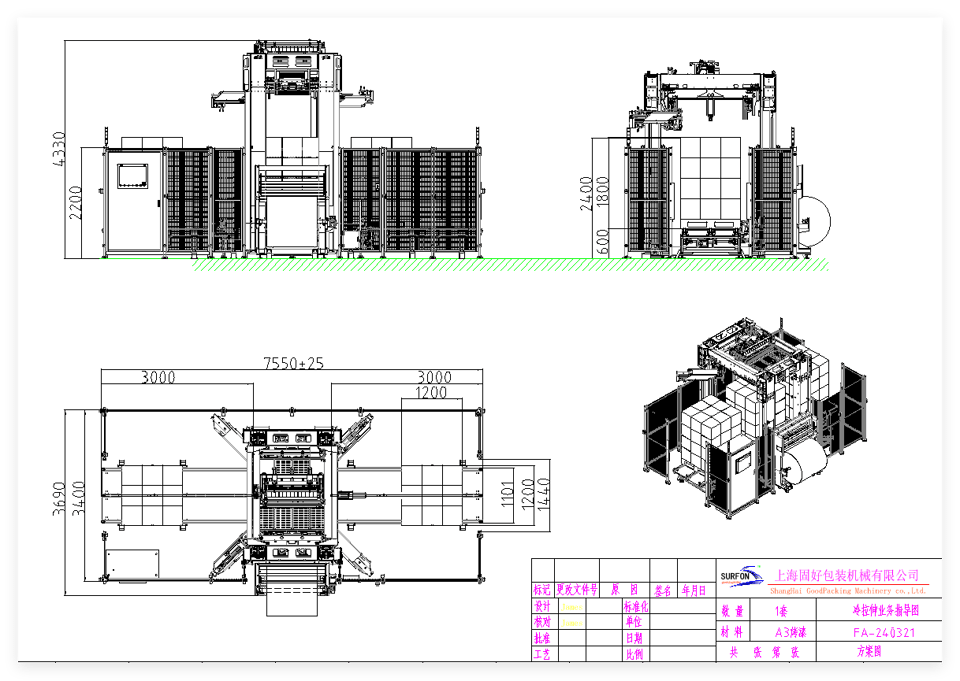

Working Table Height | 600±50mm | Machine Size Lx W x H | 6700 x 4200 x 4250mm |
Load Capacity | 3000kgs | G./N. Weight | 7200/6500kgs |



· For 60 ~ 200 micron thickness PE stretch hood film;
· The products which are packaged together by the film are very suitable for transportation. And it can effectively prevent product shedding;
· Stretch hood film offers higher transparency than traditional PE film, ensuring barcodes and trademarks are clearly visible, which enhance the product's advertising and visual display value;
· The film sealed on the top becomes a bag which can protect the products better;

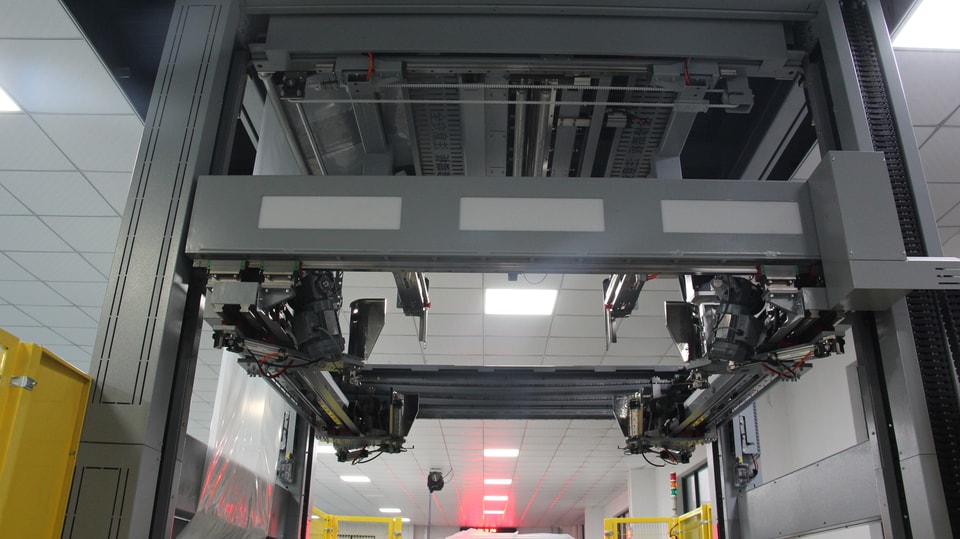

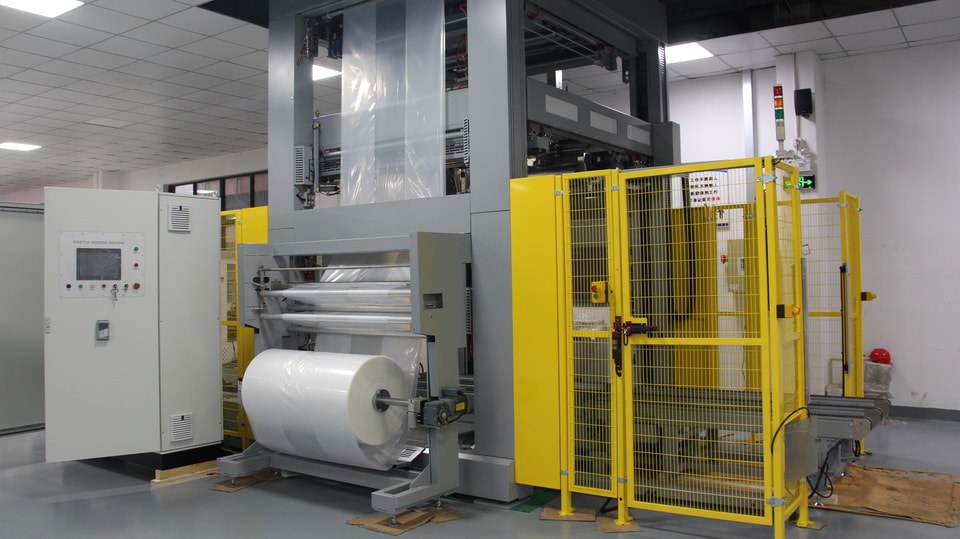

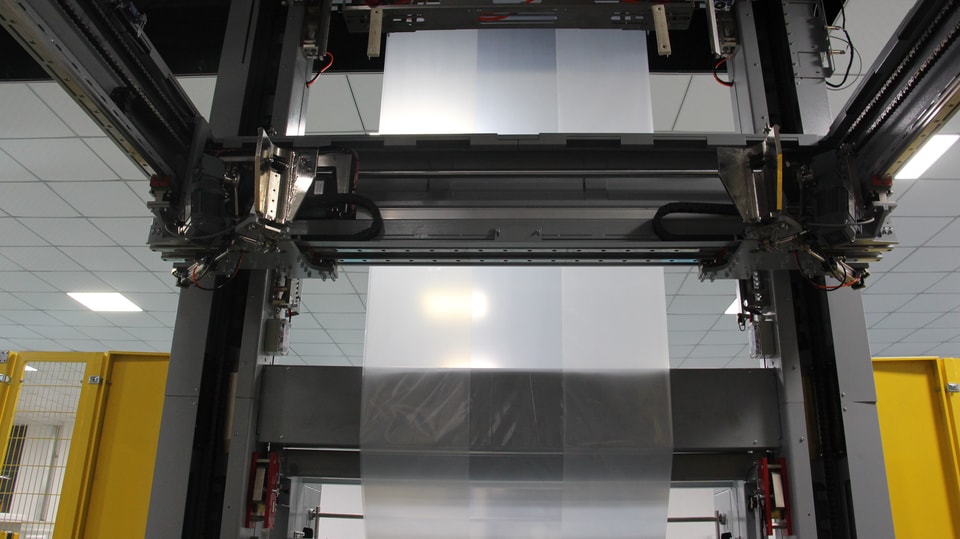

· Easy servicing: The unique feature of lowering the top stretch system of the machine descends to floor level for even easier, faster and safer service and maintenance. Film rolls replacement take place at floor lever by automatic lifting;
· The Space saving: Space is often at a premium in today's production especially in the small production area. Specially designed for operating efficiency and reliability with energy-saving features;
· Cold stretch hood film doesn't need heat energy. It is very eco-friendly and keep the products away from water, dust and UV rays;
· The packaging speed is about 50~80 pallets/hour, which can improve packaging efficiency and save labor;

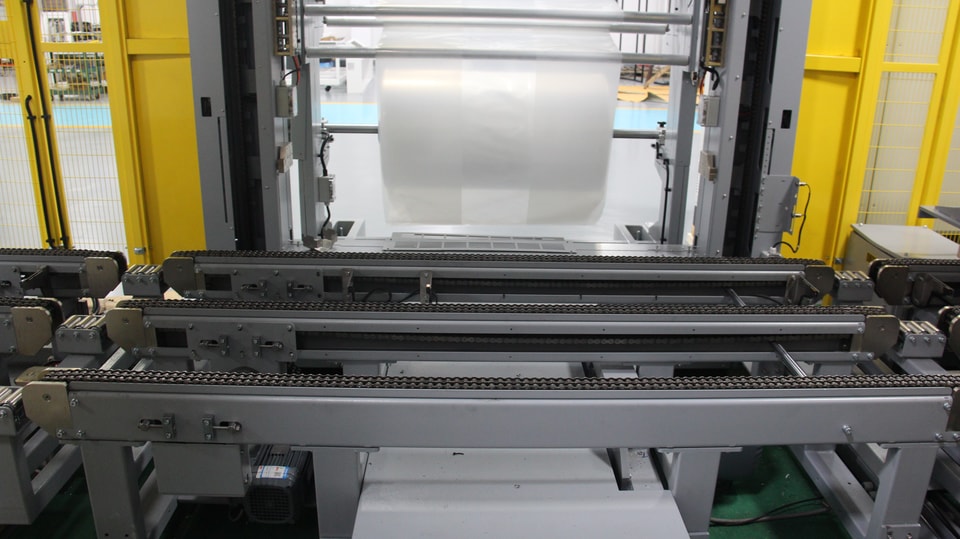

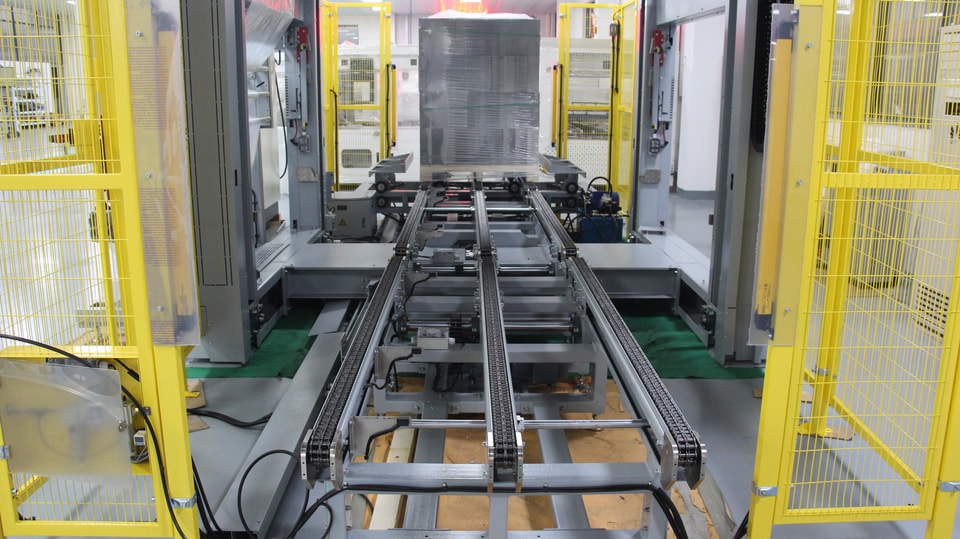

· The conveyor can be chain, chain plate or roller type;
· Film saving: The top film unwinding feature saves up to 10% film and ensure slow film consumption. It eliminates fragile film on the loading corner and makes the film approx. 30% thicker than normal on the corners of the pallet;
· The upright packing power is strong; when the pallet leans the items keep
· Standing;
· Energy Conservation: Sustainable development and ecological protection are a global priority. We take concrete actions to deliver more eco-friendly packaging solutions.
