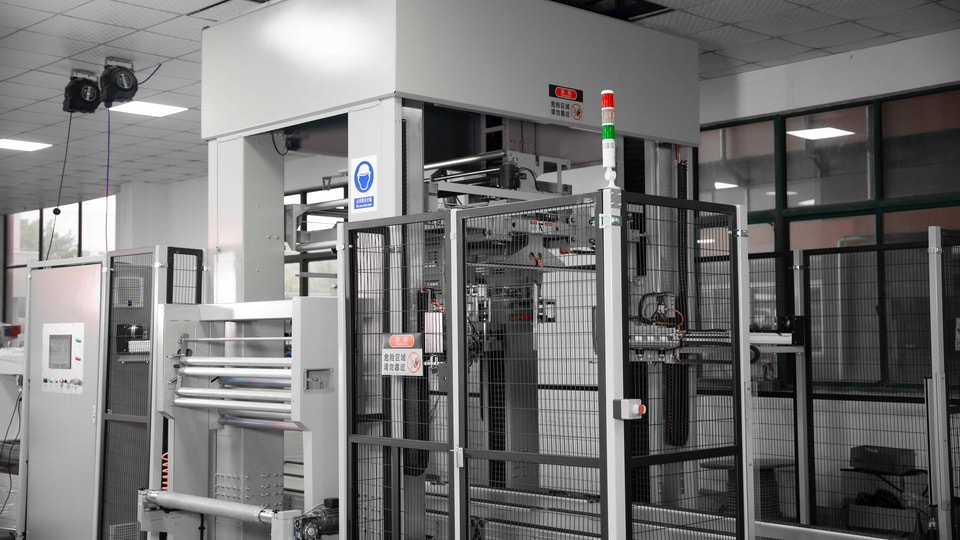

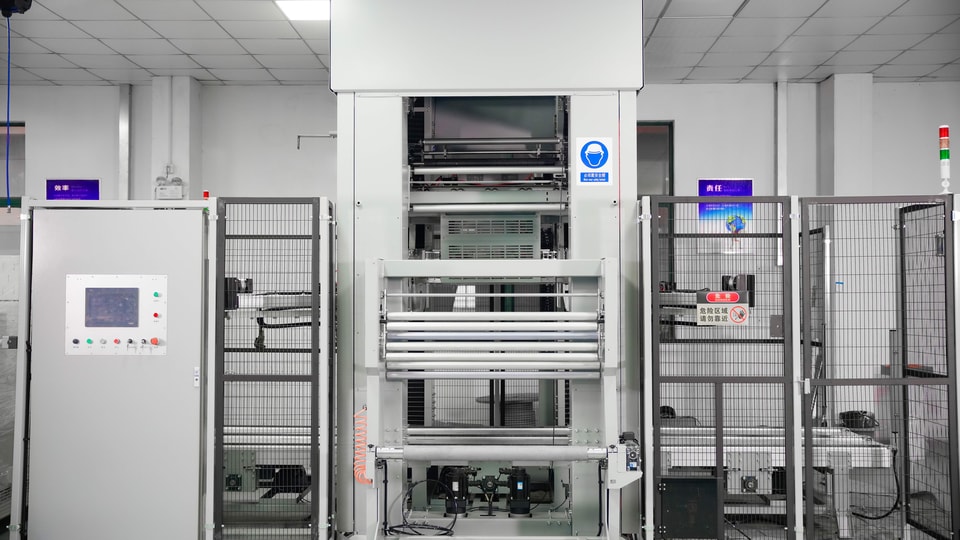

Fully-auto Cold Stretch Hooding Machine


















Fully-auto Cold Stretch Hooding Machine
Downloads
· For 60 ~ 200 micron thickness PE stretch hood film;
· The products which are packaged together by the film are very suitable for transportation. And it can effectively prevent product shedding;
· Stretch hood film offers higher transparency than traditional PE film, ensuring barcodes and trademarks are clearly visible, which enhance the product's advertising and visual display value;

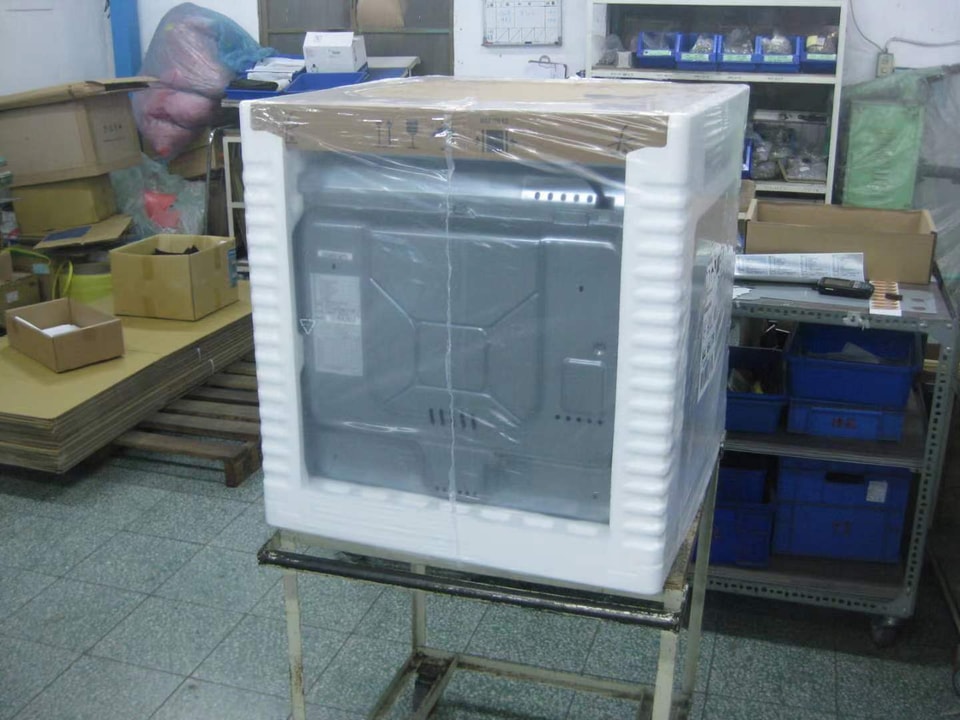

· The film sealed on the top becomes a bag which can protect the products better;
· Easy servicing: The unique feature of lowering the top stretch system of the machine descends to floor level for even easier, faster and safer service and maintenance. Film rolls replacement take place at floor lever by automatic lifting;
· The Space saving: Space is often at a premium in today's production especially in the small production area. Specially designed for operating efficiency and reliability with energy-saving features;
· Cold stretch hood film doesn't need heat energy. It is very eco-friendly and keep the products away from water, dust and UV rays;
· The packaging speed is about 40 pallets/hour, which can improve packaging efficiency and save labor;
The conveyor can be chain, chain plate or roller type;
· Film saving: The top film unwinding feature saves up to 10% film and ensure slow film consumption. It eliminates fragile film on the loading corner and makes the film approx. 30% thicker than normal on the corners of the pallet;
· The upright packing power is strong; when the pallet leans the items kee Standing;
· Energy Conservation: Sustainable development and ecological protection are a global priority. We take concrete actions to deliver more eco-friendly packaging solutions.
Model | SF-CS |
Power | 20 KW |
Power Supply | AC 380V 3PH 50HZ |
Air Source | 6-8 KG/CM2 |
Max. Package Size L×W×H | 1200×1200×1800mm |
Packing Speed | 40 pallets/hour |
Load Weight | 2000kgs |
Working Table Height | 606±50mm |
Applicable Film | PE stretch hood film |

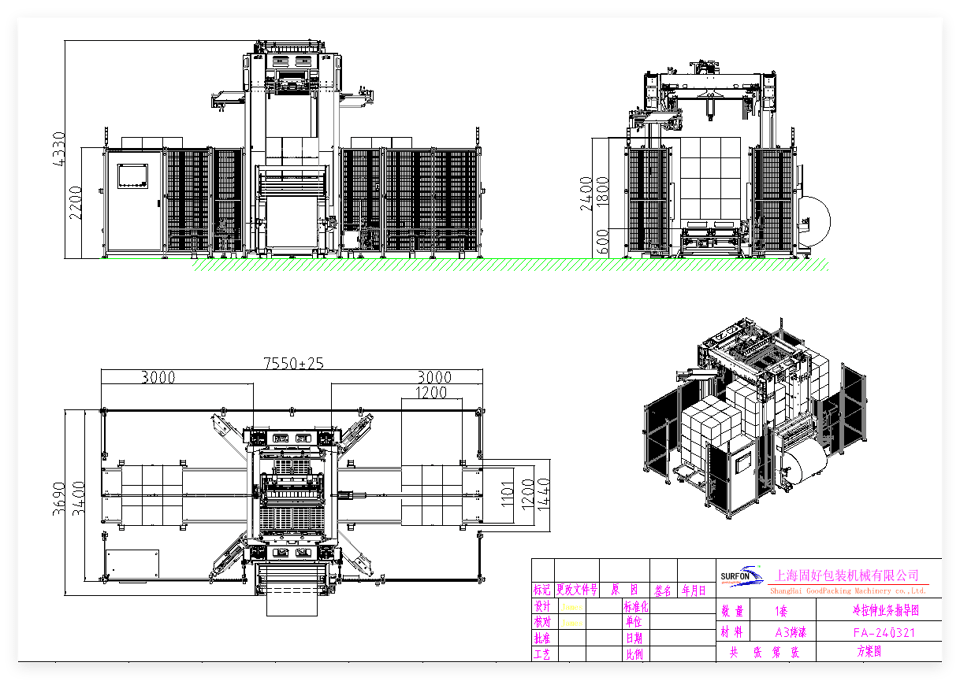

Machine Size L×W×H | 5547×3732×3929mm |
Crate Size | 40CBM (One 40HC) |
G./N. Weight | 6935/6800kgs |
Safety Light Curtain | KEYENCE | Japan |
Proximity Switch | SICK | Germany |
Height distance sensor | SICK | Germany |
Three-color light buzzer light | TEND | Taiwan |
Proximity switch | Omron | Japan |
Diffuse photoelectric | Panasonic | Japan |
Through-beam photoelectric | Banner | USA |
Safety Door Electromagnetic Lock | Omron | Japan |
Solid State Relay | Omron | Japan |
Electrical Breaker | Schneider | France |
Cross & Vertical Stretching Motor | INOVANCE | China |
Film Release Motor | GPG | Taiwan |
Film Unwind Motor | INOVANCE | China |
Film Winding Motor | INOVANCE | China |
Conveyor Motors | INOVANCE | China |
Lifting Motor | INOVANCE | China |
Stepping Motor | YAKO | China |
DC Power Supply | MEWAN WELL | Taiwan |
Main Lifting Inverter | INOVANCE | China |
Conveyor Inverter | INOVANCE | China |
Film Release Inverter | Schneider | France |
Film Winding Inverter | INOVANCE | China |
Pallet Centering Inverter | Schneider | France |
PLC | INOVANCE | China |

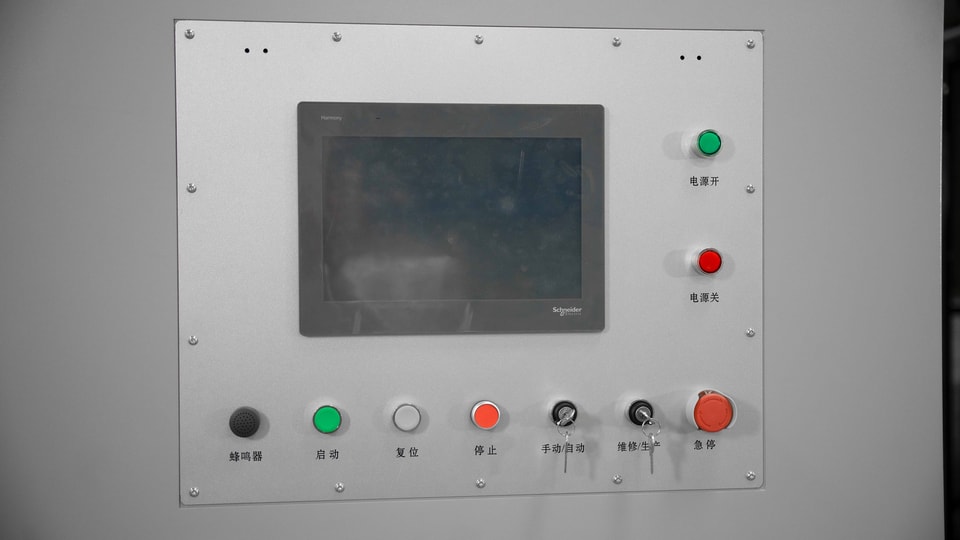

HMI | INOVANCE | China |
Remote Transmitter Module | Schneider | France |
Cross & Vertical Stretch Servo Driver | INOVANCE | China |
Film Gripping Servo Driver | INOVANCE | China |
Film Unwind Servo Driver | INOVANCE | China |
Yellow Reset Button | Schneider | France |
Green Start Button | Schneider | France |
Red Stop Button | Schneider | France |
Emergency Stop Button | Schneider | France |
Emergency Stop Guard | Schneider | France |
AC Contactor | Schneider | France |
Safety Relay | Pilz | Germany |
Battery Case | INOVANCE | China |
