Fully-auto Horizontal Cold Stretch Hooding Machine
Fully-auto Horizontal Cold Stretch Hooding Machine
A fully automatic horizontal hooding system for long and tall products, using PE stretch-hood film. Independent bagging, hooding and sealing processes maximize capacity, while dual film-roll switching supports continuity. Optional tail sealing creates six-sided close-fit packaging for demanding moisture protection.
Configure This Packaging System
For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material and thickness. Describe how products arrive from upstream equipment, the required discharge or downstream connection, conveyor height, accumulation needs, and available layout space. We also need your electrical supply, frequency, compressed-air pressure and capacity, and any preferred component or control standard. Please identify the destination market and required safety or electrical standards. Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.
· Suitable for long and high products;

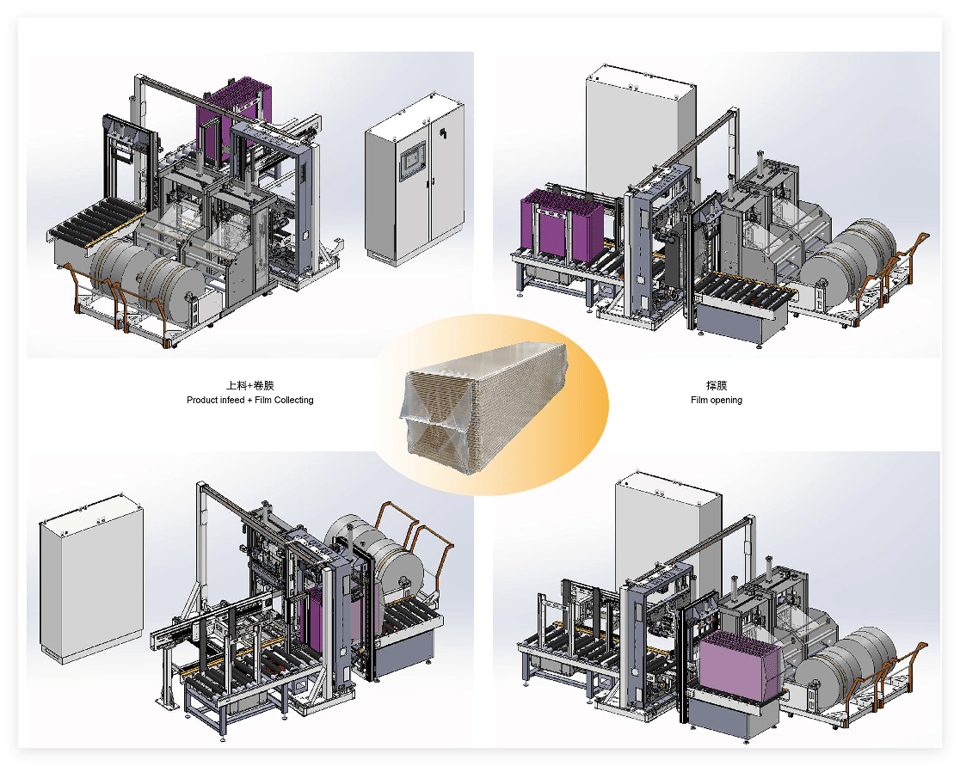

· Bagging, hooding, sealing process are independently designed without mutual interference, maximizing production capacity;
· The rollers are made of high-strength steel and coated with 60° nitrile rubber, featuring strong adhesion and stable operation;
· External film roll design is compatible with large-specification film rolls. Dual-film roll automatic switching;
· Supports tail sealing to achieve six-sided fit packaging, meeting strict moisture-proof requirements;
· Suitable for multiple industries such as door and window accessories, photovoltaic panels, base paper materials and new energy products.
Model | SF-CSW | External Air Source | 5~8 bar |
Power | 11 kw | Power Supply | AC 380/ 220V 3PH 50/60Hz |
Blade Length | 1300mm | Max. Diameter of Film Roll | 1000mm |
Max Packing Size L x W x H | 1500 x 520 x 850 mm | Max. weight of Film Roll | 1000kgs |
Min. Packing Size L x W x H | 800 x 320 x 750 mm | Applicable Film | PE Stretch Hood Film |
Packing Speed | 0~15m/min. | Film Thickness | 60 ~200 μm |

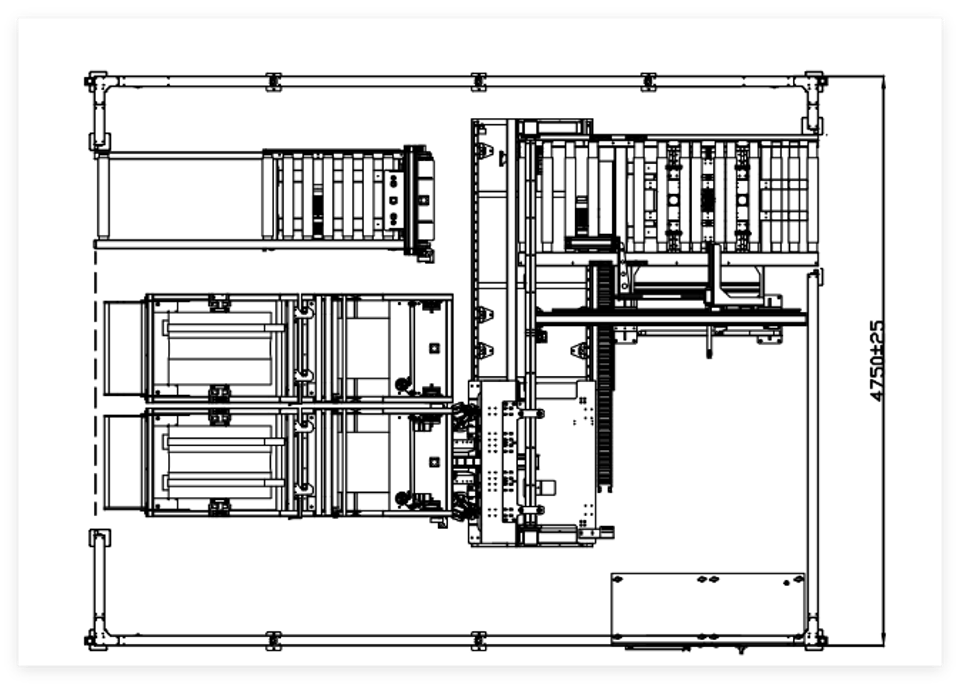

Working Table Height | 750±25mm | Machine Size Lx W x H | 6700 x 4200 x 4250mm |
Load Capacity | 1000kgs | G./N. Weight | 7200/6500kgs |
