Label Shrink Tunnel












Label Shrink Tunnel
Bottle neck labels, full-body bottle labels, beverage bottles, cosmetic bottles, pharmaceutical bottles, condiment bottle label shrinking
Downloads
· This machine is an unique design for all kinds of bottles and cups. The label will be smooth without deformation after shrinking;

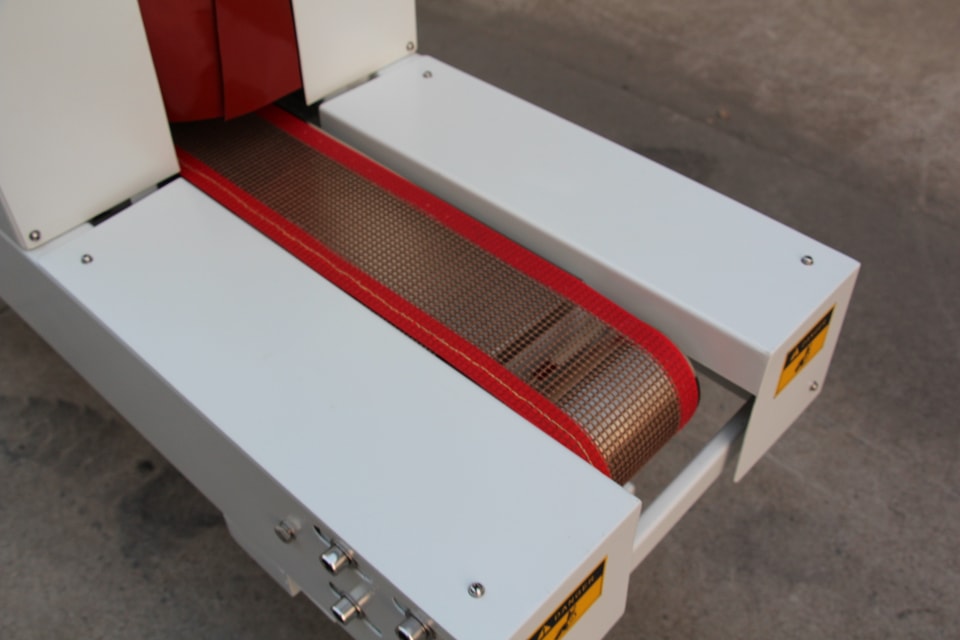

· It is equipped with the adjustable air vents and built-in Teflon belt conveyor (roller or slat conveyor optional);
· Imported components which makes sure the stability of the equipment;

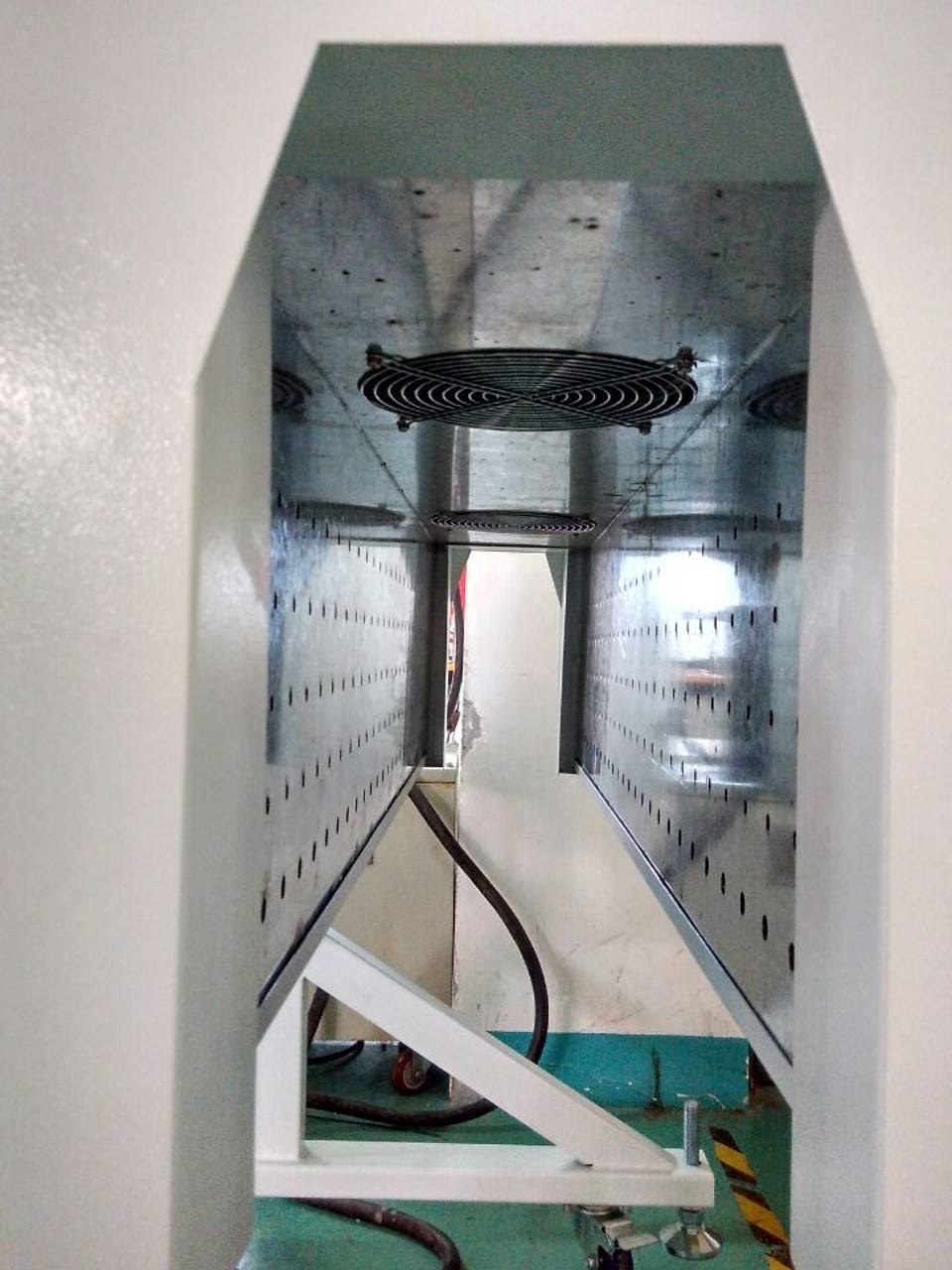

· These series of models use hot air circulation shrink systems, mainly for shrink label bottle-shaped, jars, cups etc. But also can shrink the bottle neck or mouth;
· It is widely used in the bottle or cup body of beverages, pharmaceuticals, cosmetics, pesticides and other industries glass bottles, plastic bottles, cups and other containers.
| Model | SF-1230 |
|---|---|
| Power | 12 kw |
| Power Supply | AC 220/380V 3PH 50/60HZ |
| Packing Size DiaxH | 120×280mm |
| Packing Speed | 20-40m/min. |
| Working Table Height | 750 ± 50mm |
| Shrink Film | PET/PVC |
| Machine Size L × W × H | 2500 × 610 × 1690mm |
| Crate Size L × W × H | 2550 × 660 × 1840mm |
| G./N. Weight | 400/370kgs |
