Pallet Shrink Wrapping Machine
Pallet Shrink Wrapping Machine
Large pallet cargo, warehouse storage goods, logistics pallet stacking, chemical, building material, food pallet bulk packaging
Configure This Packaging System
For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material and thickness. Describe how products arrive from upstream equipment, the required discharge or downstream connection, conveyor height, accumulation needs, and available layout space. We also need your electrical supply, frequency, compressed-air pressure and capacity, and any preferred component or control standard. Please identify the destination market and required safety or electrical standards. Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.
· Fully circulating air chamber helps maintain a consistent temperature for effective shrinking;
· Cooling Fans which installed at the discharge end to ensure the product is cooled properly after shrinking;
· Available in roller, chain types or chain plate type of conveyor system, suitable for various product sizes;
· Segmented structure and adjustable temperature settings optimize the shrinking process;
· Option: Install two insulated doors at the entry and exit. Speed: 480 pallets per hour.
| Model | SF-TP |
|---|---|
| Power | 90 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ |
| Max. Pallet Size | 1200 × 1000 × 1200mm |
| Packing Speed | 0-5m/min. |

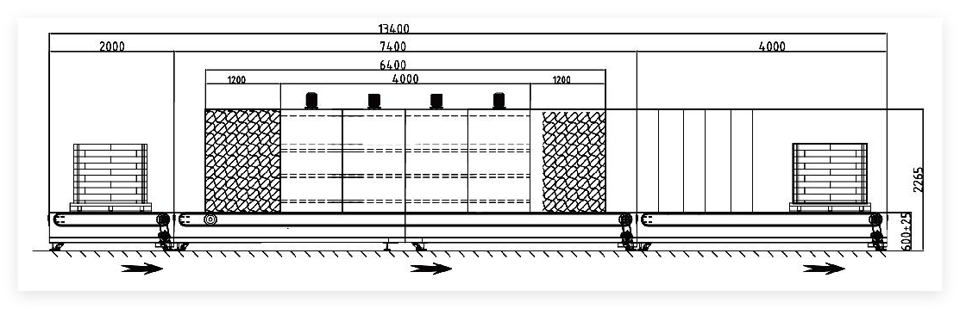

| Chamber Size L × W × H | 6000 × 1180 × 1380mm |
| Working Table Height | 600 ± 25mm |
| Shrink Film | POF |

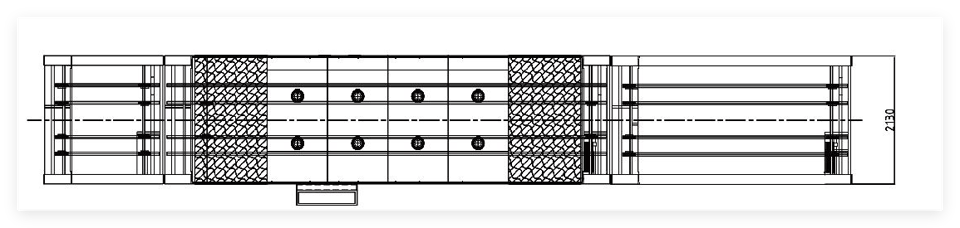

| Machine Size L × W × H | 7400 × 2130 × 2265mm |
| Crate Size L × W × H | 7500 × 2230 × 2465mm |
| G./N. Weight | 4650/4200kgs |
