Label Shrink Tunnel










Label Shrink Tunnel
Bottle neck labels, full-body bottle labels, beverage bottles, cosmetic bottles, pharmaceutical bottles, condiment bottle label shrinking
Downloads
· SF-1230R Semi-auto Label Shrink Tunnel is mainly for bottle shaped, jars, goblet product labels shrink which can shrink the bottle neck, body, bottom and overall;
· The frequency inverter controls transmission speed and has variable speed;

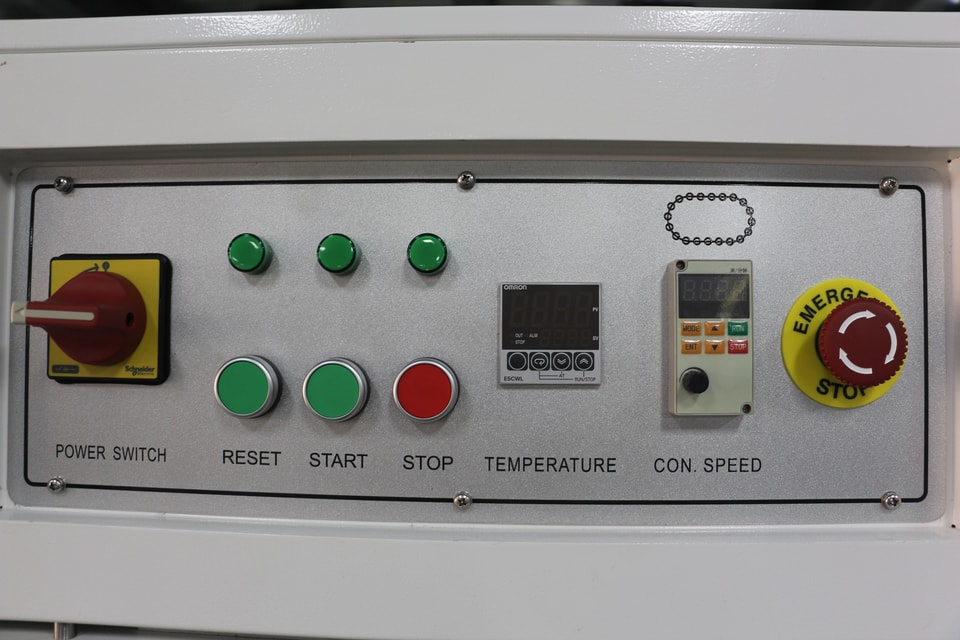

· The shrinking temperature is intelligently controlled by digital temperature controller and can be adjusted;

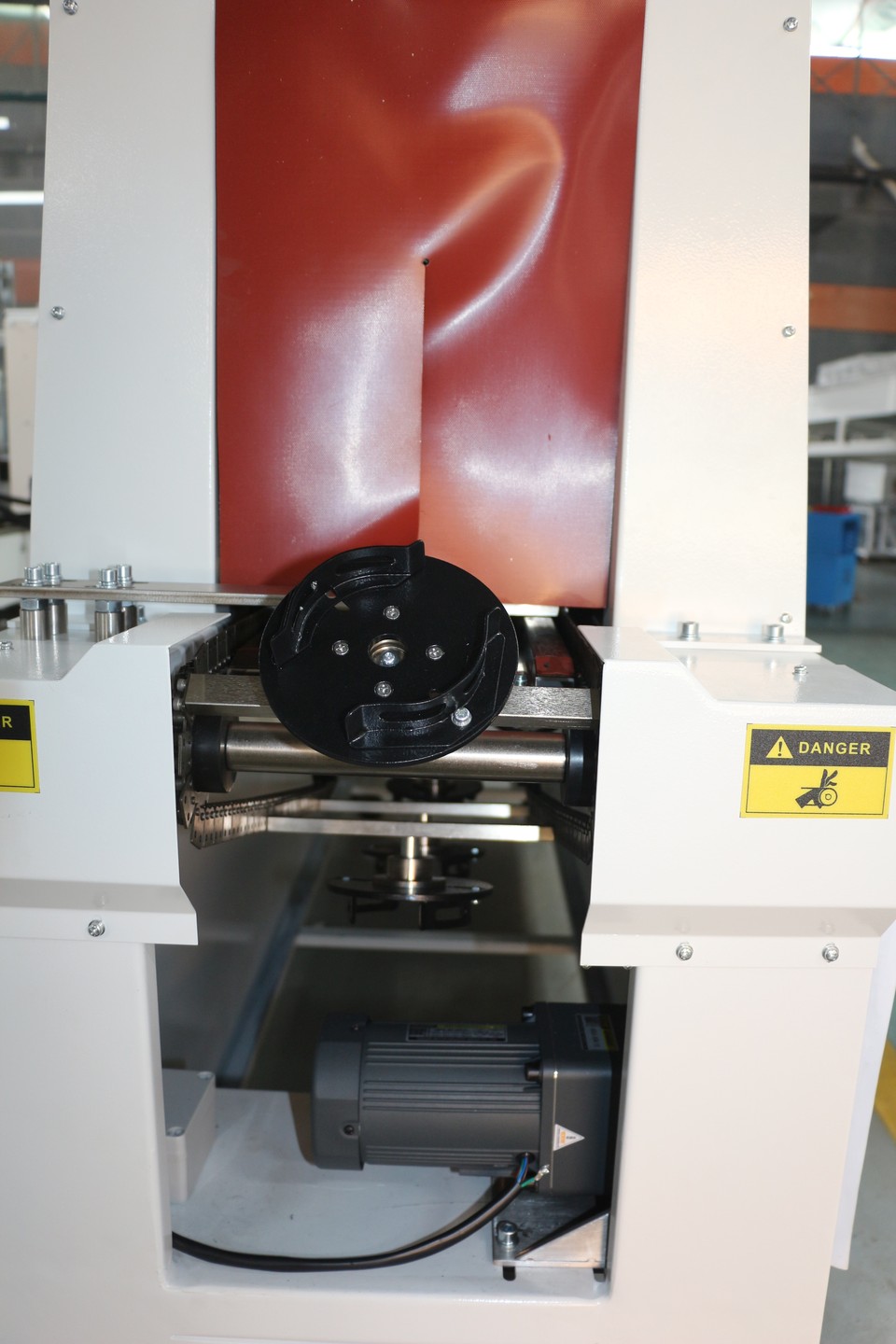

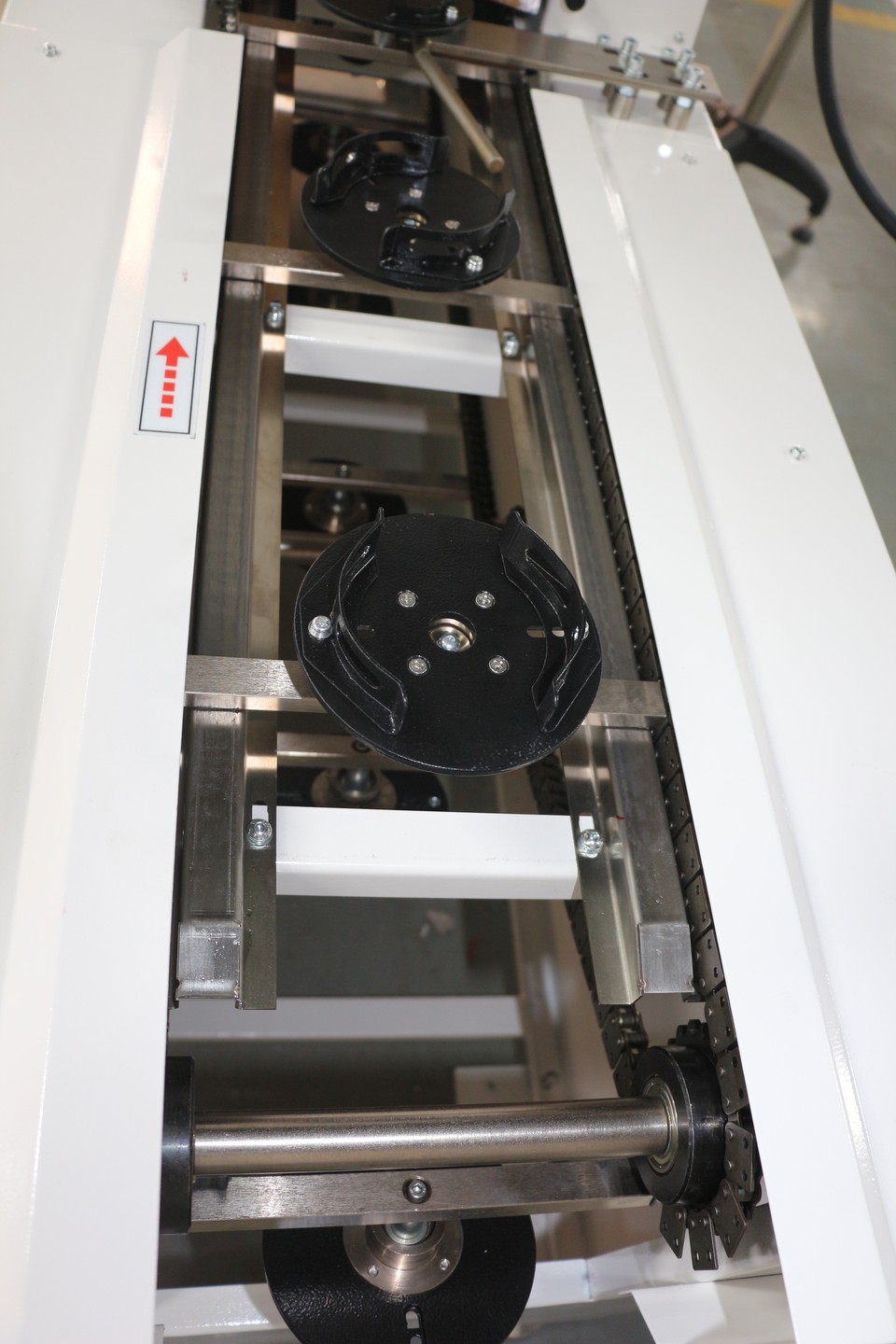

· The pucks can be rotated 360 degrees to ensure smooth transportation and get a proper shrinking;
· The conveyor with protective cover to avoid the operator’s fingers get caught in the moving parts, so that it can pass CE safety standards;
· The bottle nipping stations can be adjusted without changing the molds;
· Adopt double hot air circulation system;
· It is widely used in food, pharmaceuticals. Cosmetics and other industries.
| Model | SF-1230R |
|---|---|
| Power | 12 kw |
| Power Supply | AC 220/380V 3PH 50/60HZ |
| Packing Size DiaxH | 120×280mm |
| Packing Speed | 20-40m/min. |
| Working Table Height | 750 ± 50mm |
| Shrink Film | PET/PVC |
| Machine Size L × W × H | 2500 × 500 × 1450mm |
| Crate Size L × W × H | 2550 × 550 × 1550mm |
| G./N. Weight | 380/330kgs |
