Auto Bagging Machine

A fully automated machine that cuts, loads and heat-seals bags without manual intervention. Servo drives, sensor and PLC interlocking support precise high-speed feeding, while parameter-based changeovers, real-time HMI monitoring and film-run-out or jam alarms improve operating efficiency and consistency.

Configure This Packaging System

For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material.

KUKO engages with every project from the initial application review. We assess product characteristics, packaging format, film type, required output, operating speed, and upstream and downstream equipment interfaces to ensure the machine configuration aligns with your production process.

Throughout manufacturing, rigorous build-quality inspections, configuration validation and pre-shipment trial preparations are systematically managed and reviewed with the customer to achieve full mutual alignment. KUKO additionally manages the full scope of technical documentation compilation, export compliance documentation, installation scheduling, on-site commissioning, operator training handover and ongoing after-sales support. Every set of documentation and service provision is formally defined and confirmed for each individual project enquiry.

Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.

Email:info@kukoshrink.com

WhatsApp / WeChat

+86 189-1774-9969

REQUEST A QUOTE

Product Features

· The automatic bag-filling machine is a fully-automated packaging device and operates without manual

intervention.

· This machine features outstanding compatibility, enabling quick product-format switching within the applicable model range.

· It supports parameter-based adjustment to realize fast-product change-over within preset limits.

· It adopts a combined-operation scheme of conveyor belts and negative-pressure conveying assemblies to accomplish cutting, bag-loading and heat-sealing procedures.

· The top-mounted bag magazine holds a large quantity of bags conveniently.

· Servo-motor driving is adopted to boost the running and sealing-cutting speeds during packaging.

· Its station-type bag-filling structure fills products during product-passing gaps to maximize machine output.

· Equipped with a human-machine interface with parameter-setting functions, it monitors real-time operating values and set-values.

· Constant-temperature sealing technology delivers steady heat output and greatly improves packaging consistency.

· It supports optional compatibility with bags of various sizes and materials.

· A high-sensitivity sensor together with PLC dual-logic interlock is installed at the feeding section to

guarantee precise high-speed feeding.

· Servo motors serve as main drivers; the unit triggers emergency shutdown and alarms promptly once material-jamming occurs.

· Film-run-out alert is built-in for the bag compartment. It stops operation and sends out warnings upon film shortage to lower defective-product rates.

· Film rolls are mounted on one side of the machine for simple replacement and easier-operator-operation.

· This automatic bag-filling machine applies to numerous industries including daily-use goods, fresh produce, cold-chain items, foodstuff, logistics packing, third-party cloud-warehouses and ready-to-cook

meals

Technical Parameters

Model	GH-6030AB
Power	3.8kw
Power Supply	220V 1PH 50/60Hz
Max. Packing Size L x W x H	L250-350 x W200-300 x H10-50mm
External Air Source	6-8kg/cm2
Shrink Film	PET/PE

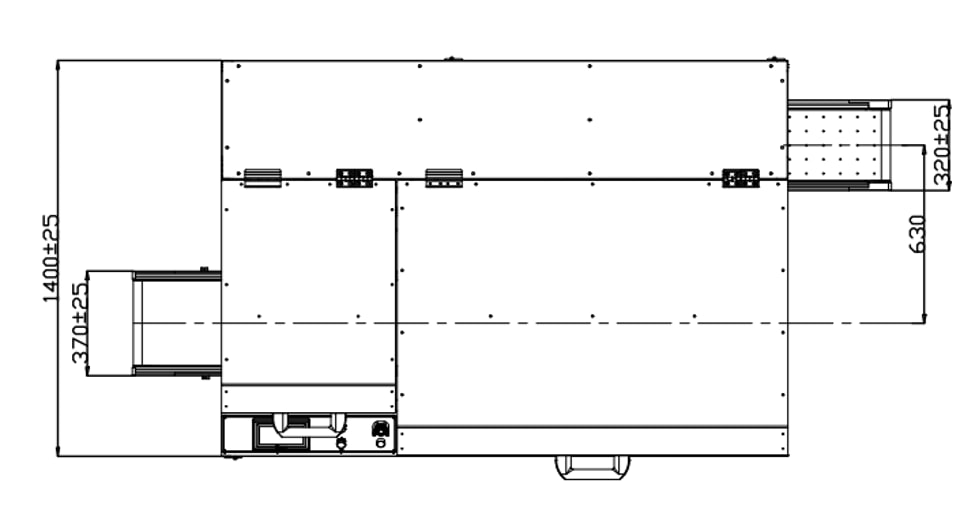

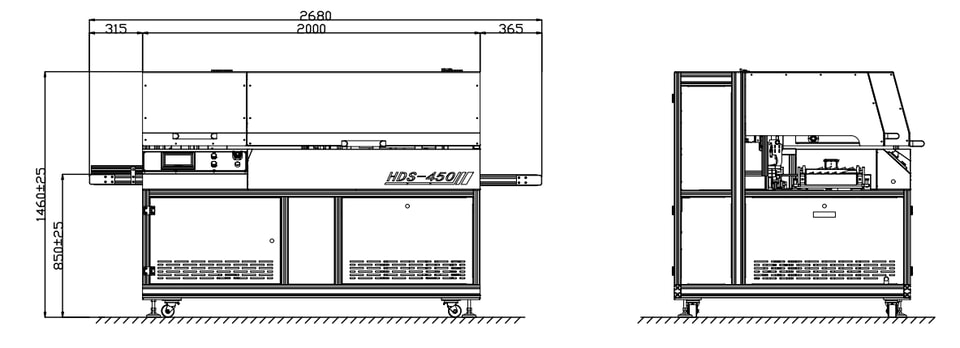

Machine Size L x W x H	2680 x 1400 x 1460mm
Crate Size L x W x H	2780 x 1500 x 1610mm
G./N. Weight	720/670kgs
