Fully-auto Static Sealing & Shrink Wrapping
















Fully-auto Static Sealing & Shrink Wrapping
Long strip cylindrical products, rod-shaped goods, tube materials
Configure This Packaging System
For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material.
KUKO engages with every project from the initial application review. We assess product characteristics, packaging format, film type, required output, operating speed, and upstream and downstream equipment interfaces to ensure the machine configuration aligns with your production process.
Throughout manufacturing, rigorous build-quality inspections, configuration validation and pre-shipment trial preparations are systematically managed and reviewed with the customer to achieve full mutual alignment. KUKO additionally manages the full scope of technical documentation compilation, export compliance documentation, installation scheduling, on-site commissioning, operator training handover and ongoing after-sales support. Every set of documentation and service provision is formally defined and confirmed for each individual project enquiry.
Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.
Downloads
· Compact design saves space;

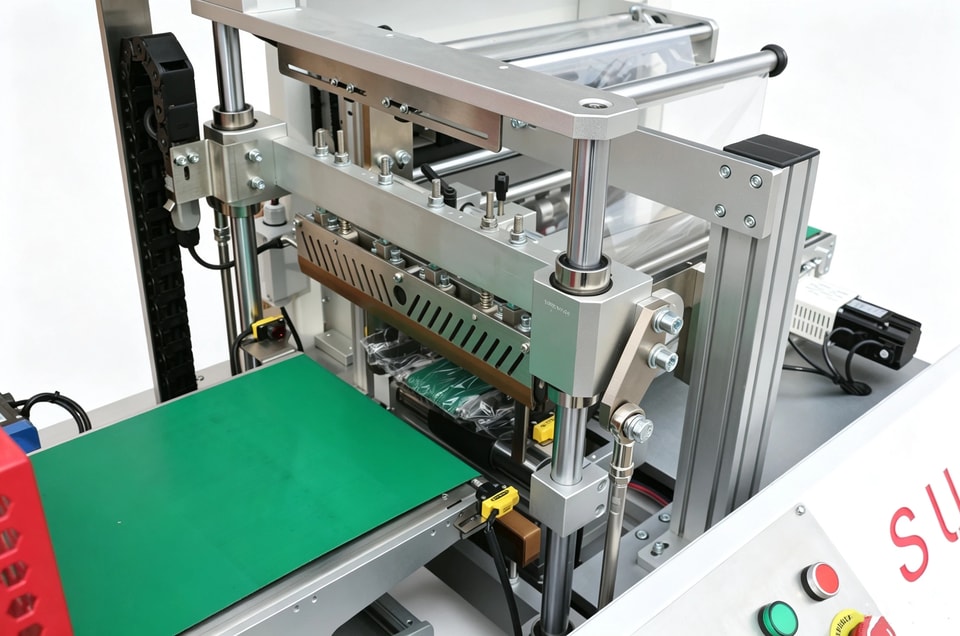

· The blade is coated with high temperature resistant PTFE for anti-sticking and keep smooth sealing;
· Use static to seal the overlapping parts of single-layer films, easy to open;

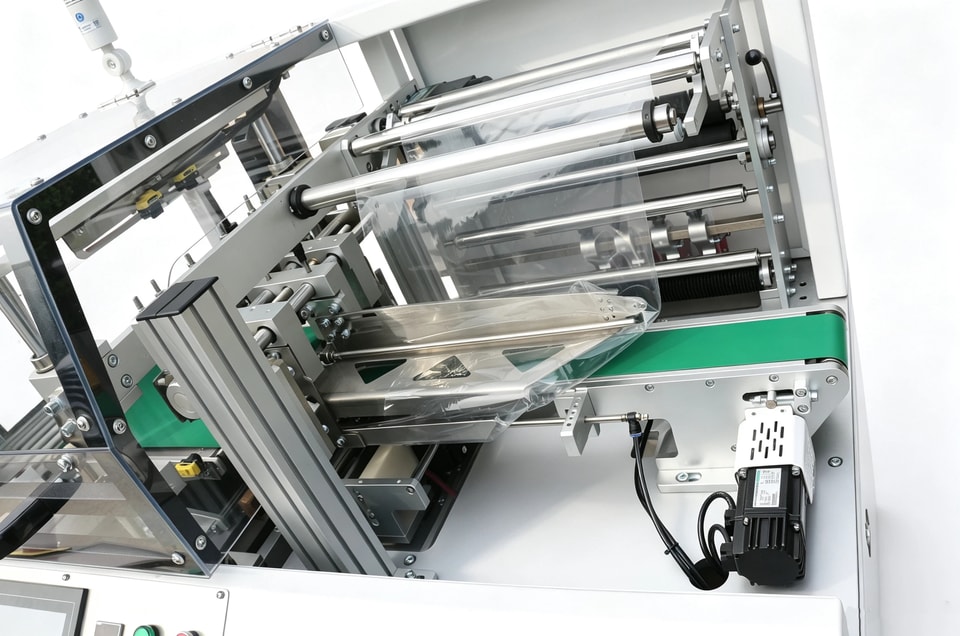

· The film feeding is controlled by precise limit switch which reduces film consumption to save cost.

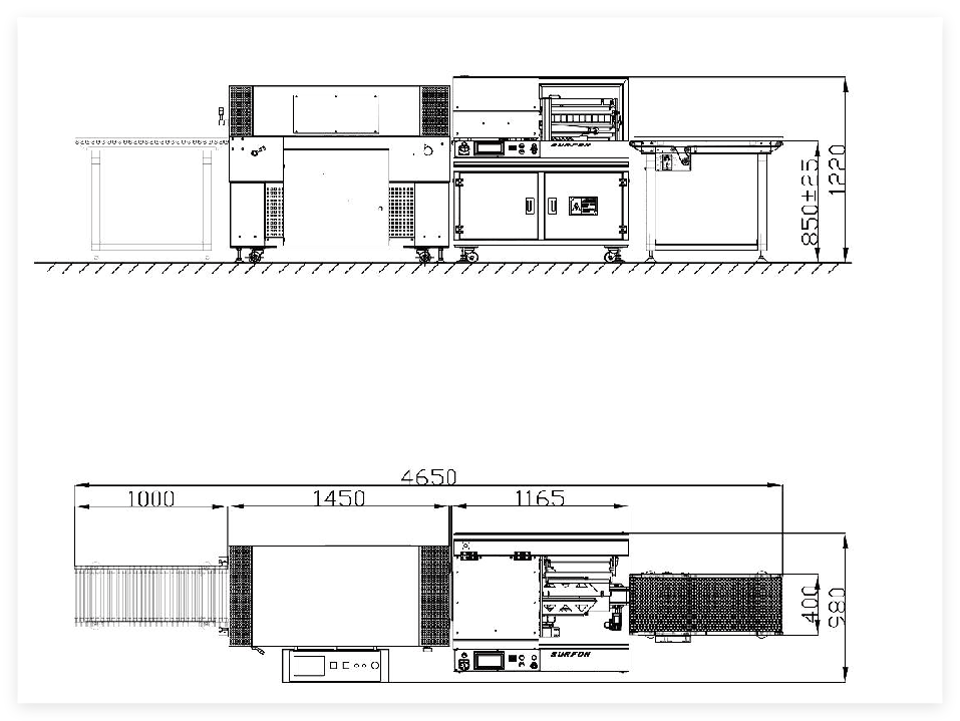

| Model | GH-300SJ | SF-4020G |
|---|---|---|
| Power | 3.2 kw | 10.8 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Sealing Size | 450mm | / |
| Max. Packing Size L × W × H | 250 × 250 × 100mm | Chamber Size L × W × H 1150 × 400 × 200mm |
| Min. Packing Size L × W × H | 100 × 100 × 10mm | / |
| Working Table Height | 850 ± 25mm | 850 ± 25mm |
| Shrink Film | POF | POF |
| Machine Size L × W × H | 1165 × 900 × 1200mm | 1450 × 865 × 1090mm |
| Crate Size L × W × H | 1265 × 1000 × 1350mm | 1550 × 965 × 1240mm |
| G./N. Weight | 560/490kgs | 450/370kgs |
