Semi-auto Film Shrink Wrapper














Semi-auto Film Shrink Wrapper
Small factory semi-automatic packaging, ex: Water bottle with eye mark
Email:info@kukoshrink.com
WhatsApp / WeChat
Downloads
Product Features
· This machine is a semi-automatic device with a color film application;
· The bottom-mounted film roll configuration allows for the installation of larger-specification film rolls. Meanwhile, it is equipped with manual film welding and switching functions, enabling quick consumable replacement during short downtime periods;
· Servo motor drive which enhances the running speed and sealing &cutting speed during the product packaging process.
Technical Parameters
| Model | GH-6030BM | SF-6040E |
|---|---|---|
| Power | 2 kw | 28 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | 400 × 400 × 250mm | Chamber Size L × W × H 1500 × 500 × 350mm |
| Cross Blade Size | 600mm | / |
| Packing Speed | 4-6m/min. | 0-15m/min. |
| Working Table Height | 800 ± 25mm | 800 ± 25mm |
| Shrink Film | PE | PE |
| Machine Size L × W × H | 1200 × 1225 × 1170mm | 2300 × 950 × 1700mm |
| Crate Size L × W × H | 1300 × 1325 × 1320mm | 2350 × 1140 × 1850mm |
| G./N. Weight | 360/300kgs | 630/550kgs |

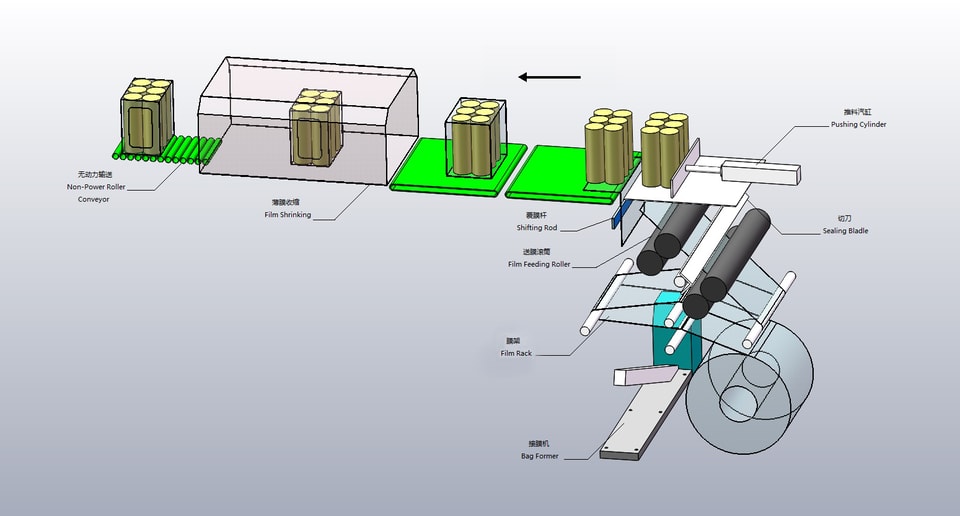

Working Flow

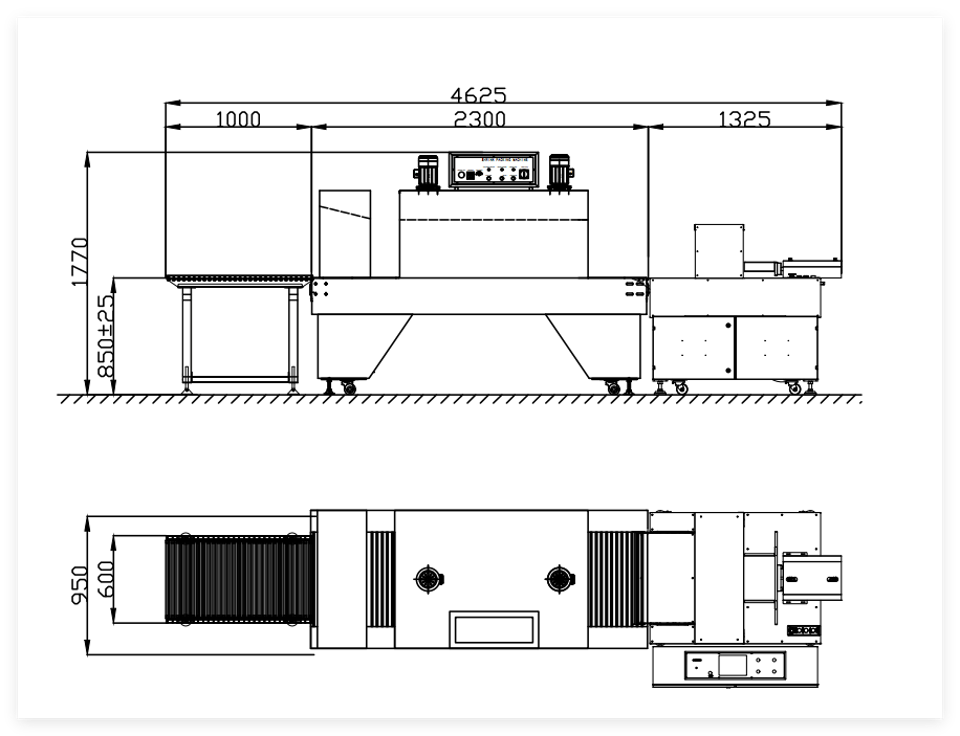

Lay-out
