Fully-auto Sleeve Sealer & Shrink Tunnel (Multi- Layers)
Fully-auto Sleeve Sealer & Shrink Tunnel (Multi- Layers)

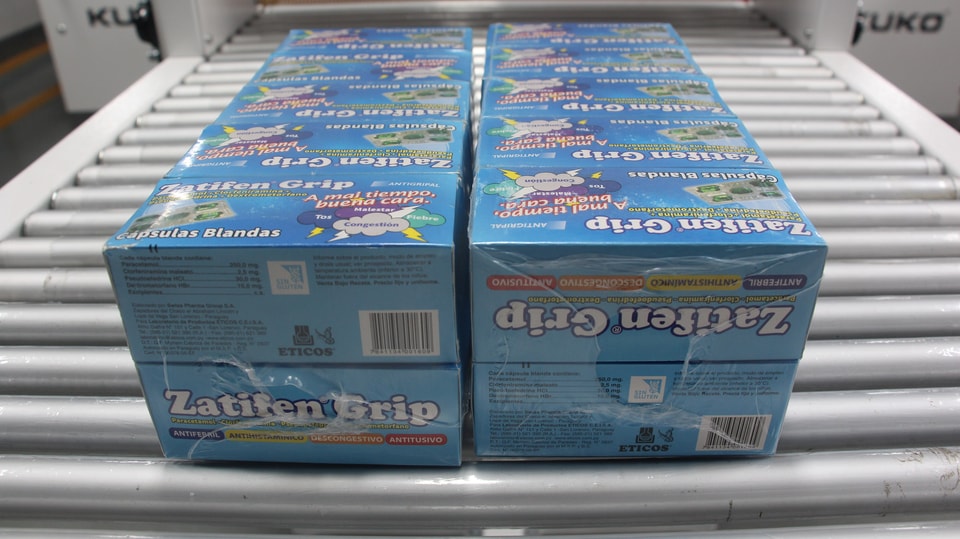

Small bottled goods, condiments, cosmetics bottles, multi-row small product layered packaging, medicine box
Email:info@kukoshrink.com
WhatsApp / WeChat
Product Features

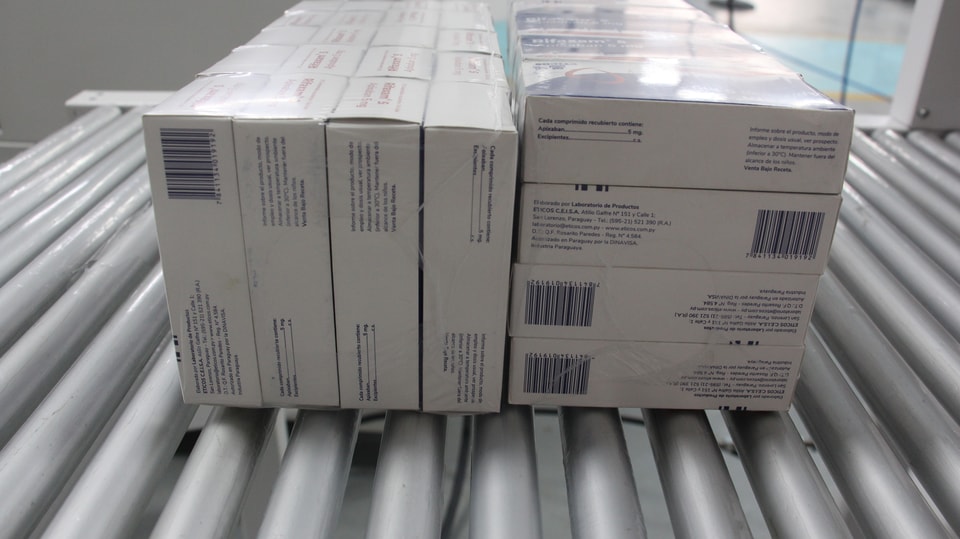

· Suitable for multi layers & rows boxes stacking;

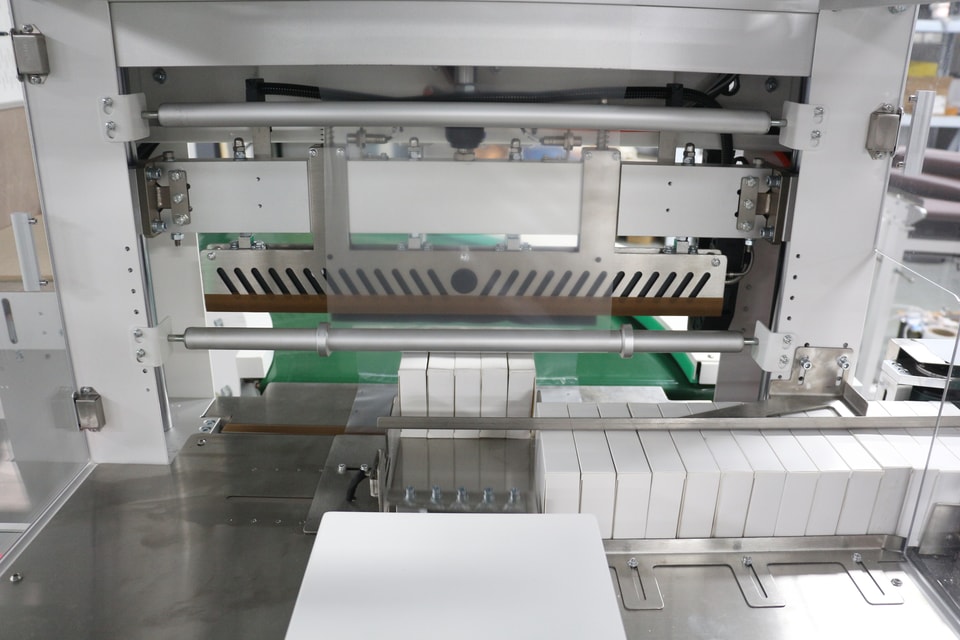

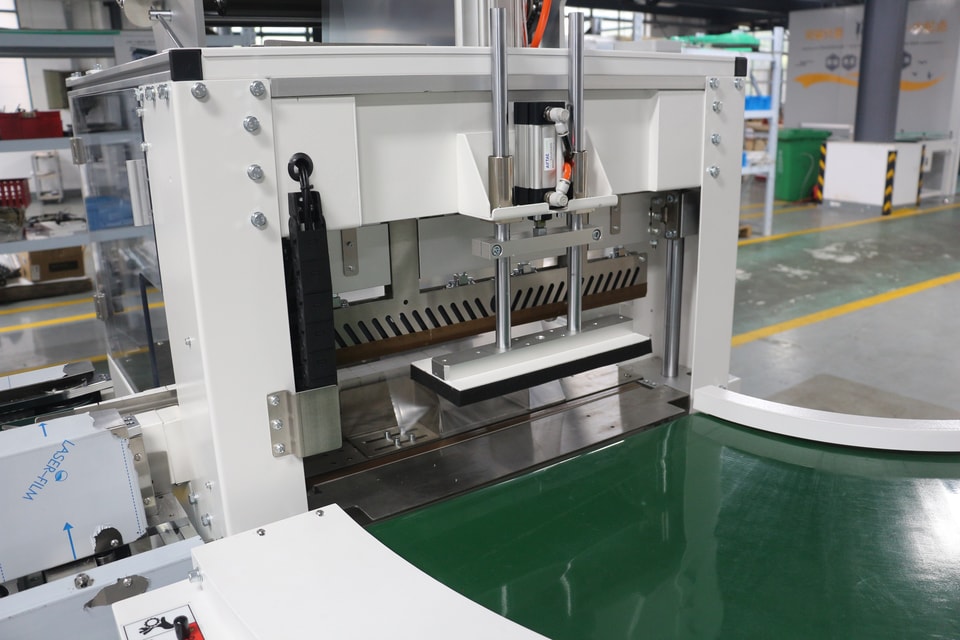

· A specially designed blade makes sure solid sealing line, no cracking and anti-stick;
· The feeding part uses chain conveyor which is fast and smooth;

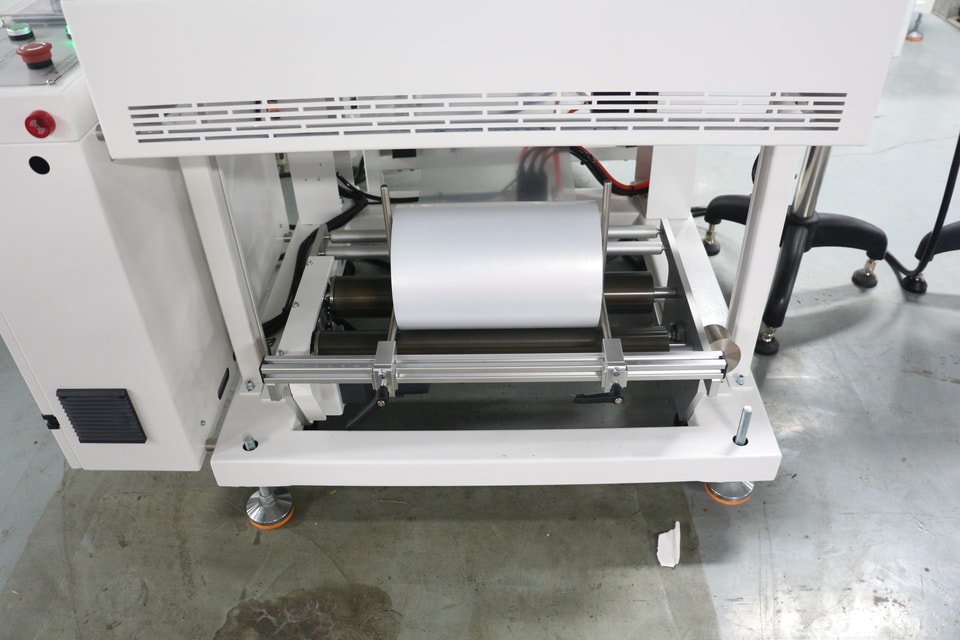

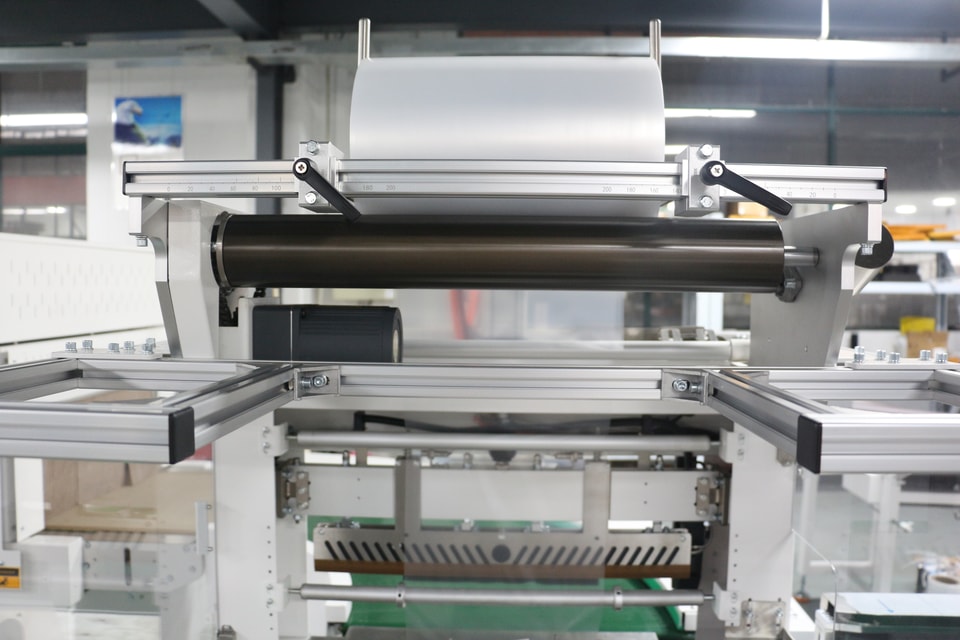

· Customizable double film holder to meet high speed requirements.
Technical Parameters
| Model | GH-5030AE | SF-5030E |
|---|---|---|
| Power | 1.2 kw | 16 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | 300 × 200 × 200mm | Chamber Size L × W × H 1500 × 500 × 350mm |
| Cross Blade Size | 600mm | / |
| Packing Speed | 0~12m/min. | 0~15m/min. |
| Working Table Height | 825 ± 25mm | 825 ± 25mm |
| Shrink Film | PE | PE |
| Machine Size L × W × H | 2175 × 950 × 1685mm | 1900 × 780 × 1650mm |
| Crate Size L × W × H | 2225 × 1000 × 1835mm | 2000 × 880 × 1800mm |
| G./N. Weight | 405/360kgs | 450/400kgs |

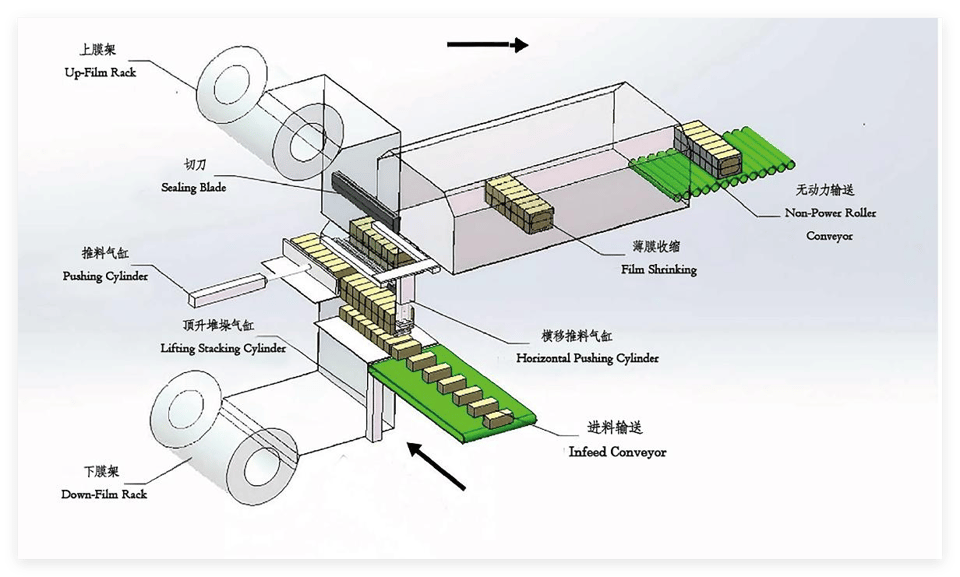

Working Flow

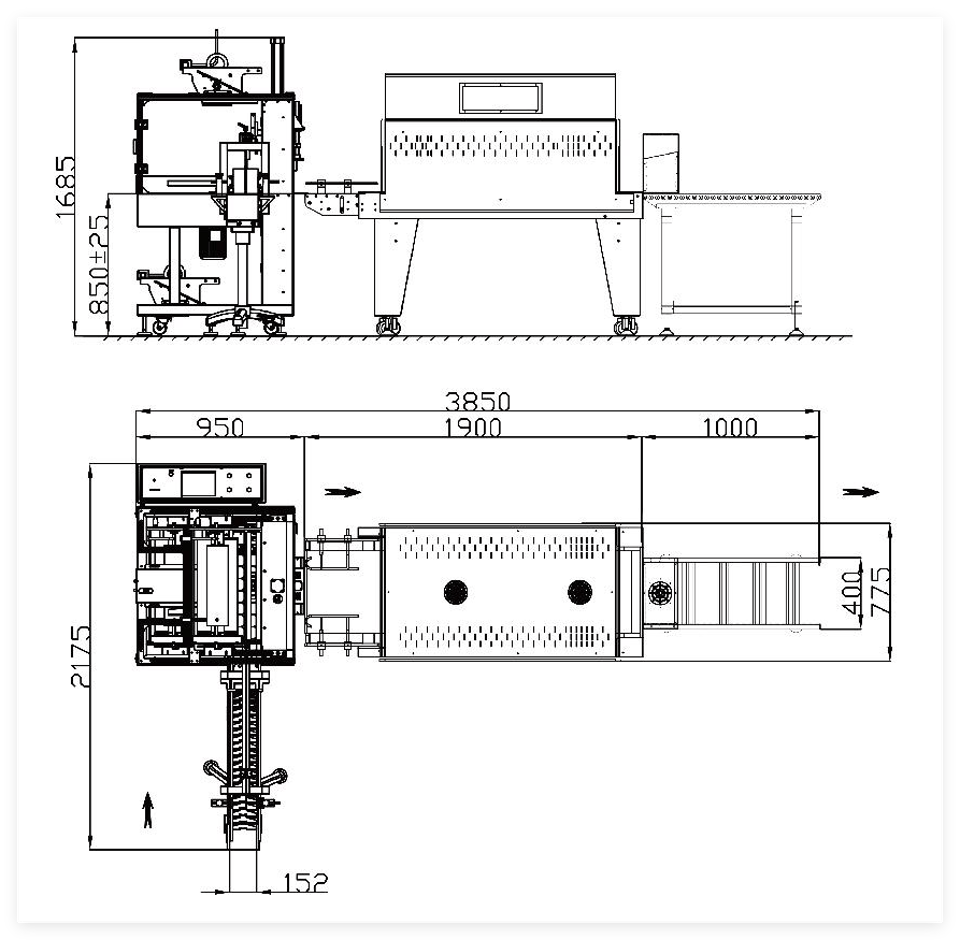

Lay-out
