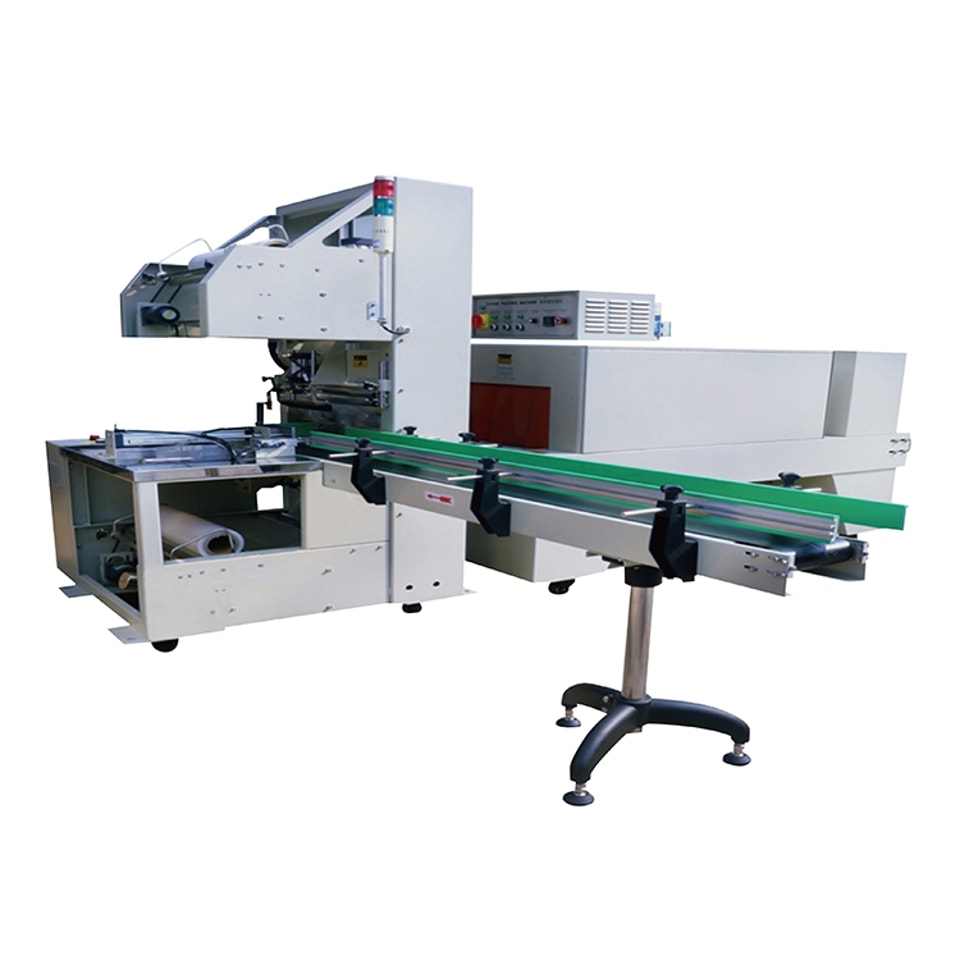

Fully-auto Sleeve Sealer & Shrink Tunnel(For Tapes)
Fully-auto Sleeve Sealer & Shrink Tunnel(For Tapes)

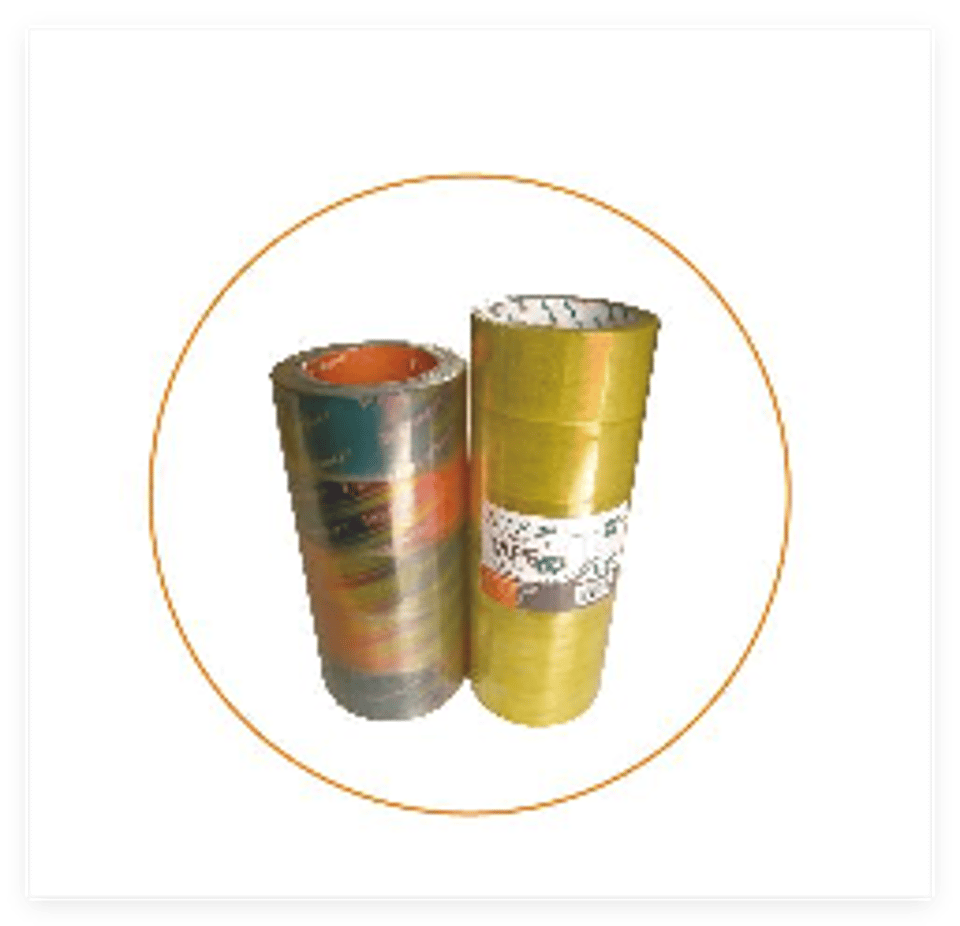

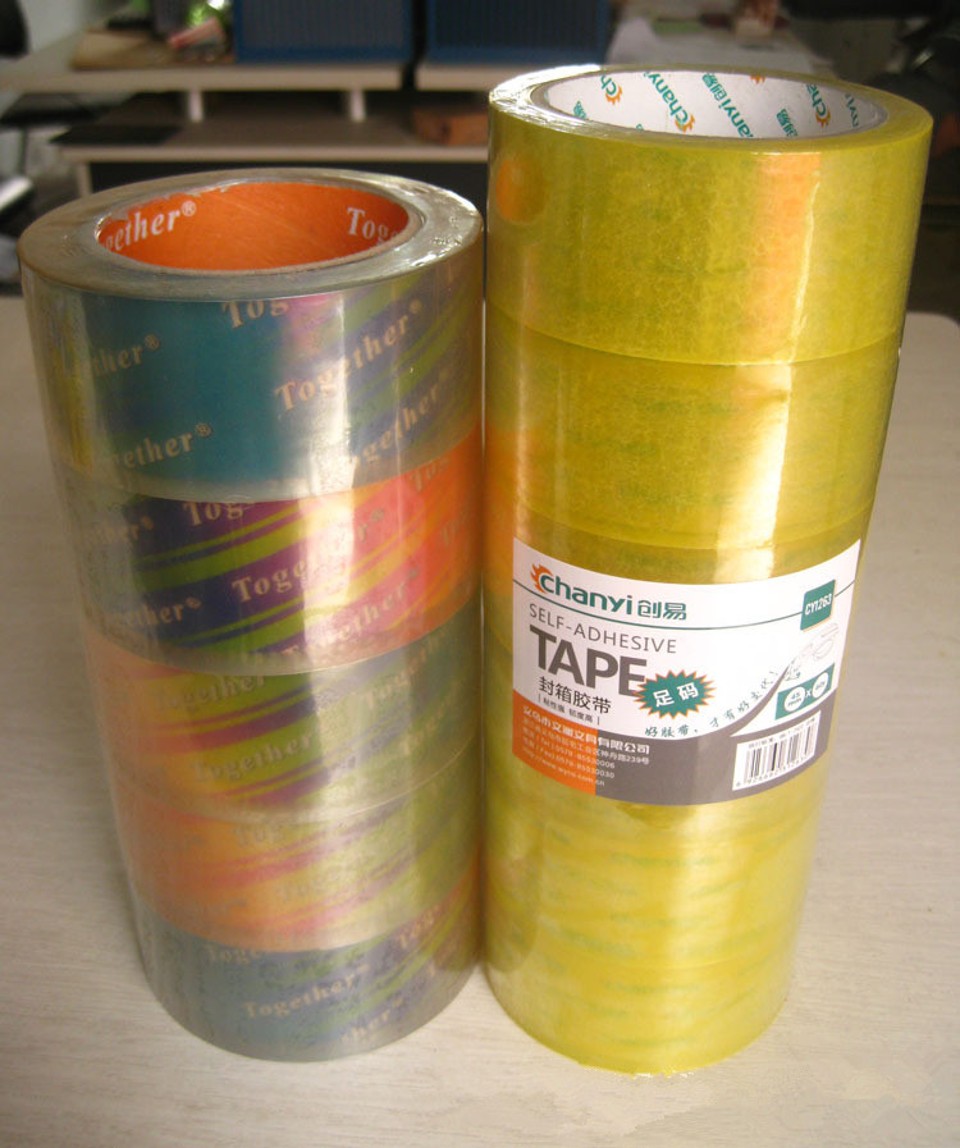

adhesive tape, craft tape, various roll tape products; fixed quantity per roll package to prevent adhesion between tapes.
Email:info@kukoshrink.com
WhatsApp / WeChat
Product Features
· Suitable for different diameter and width tapes;
· Single or multiple tape "tower" packing;

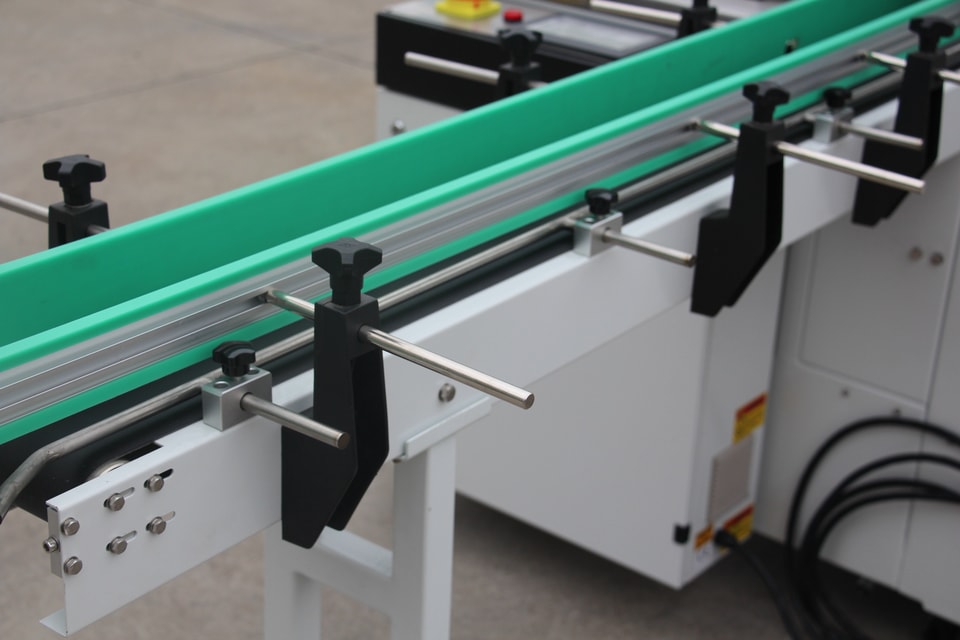

· The feeding part uses belt conveyor which is fast and smooth; as required to increase the color film positioning system.
Technical Parameters
| Model | GH-6030AE | SF-5030E |
|---|---|---|
| Power | 2 kw | 16 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | Φ180 × L400mm | Chamber Size L × W × H 1500 × 500 × 350mm |
| Cross Blade Size | 570mm | / |
| Packing Speed | 0~12m/min. | 0~15m/min. |
| Working Table Height | 825 ± 25mm | 825 ± 25mm |
| Shrink Film | PE | PE |
| Machine Size L × W × H | 2270 × 1210 × 1670mm | 2500 × 780 × 1650mm |
| Crate Size L × W × H | 2370 × 1310 × 1820mm | 2600 × 880 × 1800mm |
| G./N. Weight | 450/390kgs | 520/470kgs |

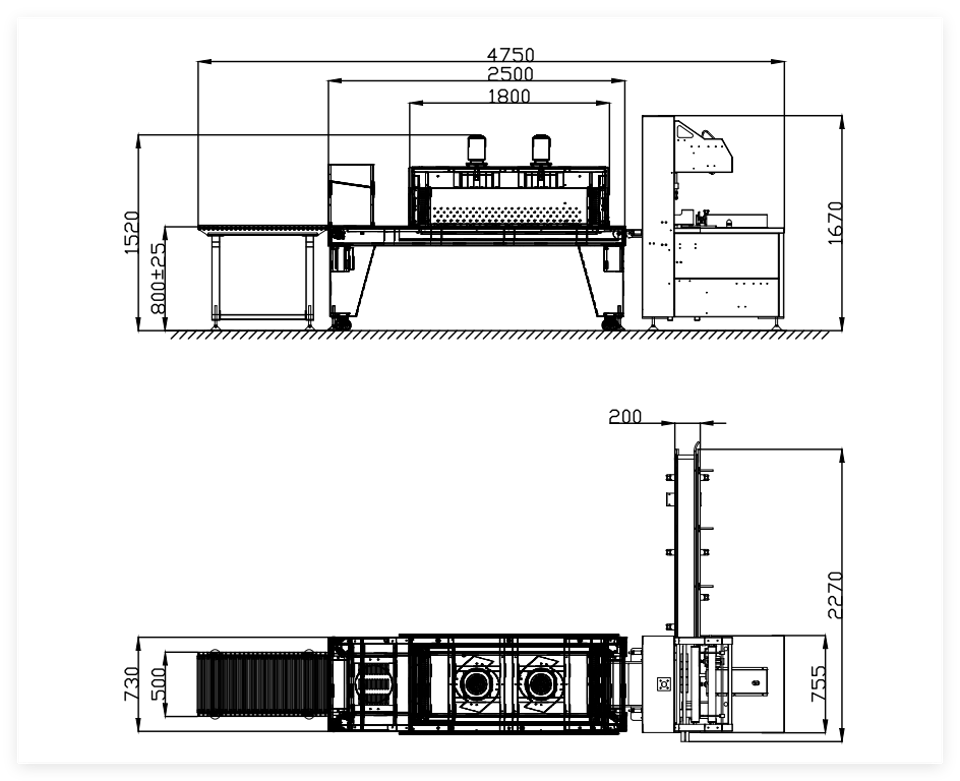

Lay-out
