Fully-auto Film Wrapping Machine














Fully-auto Film Wrapping Machine

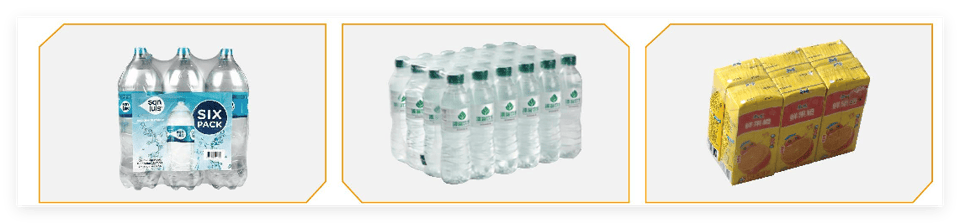

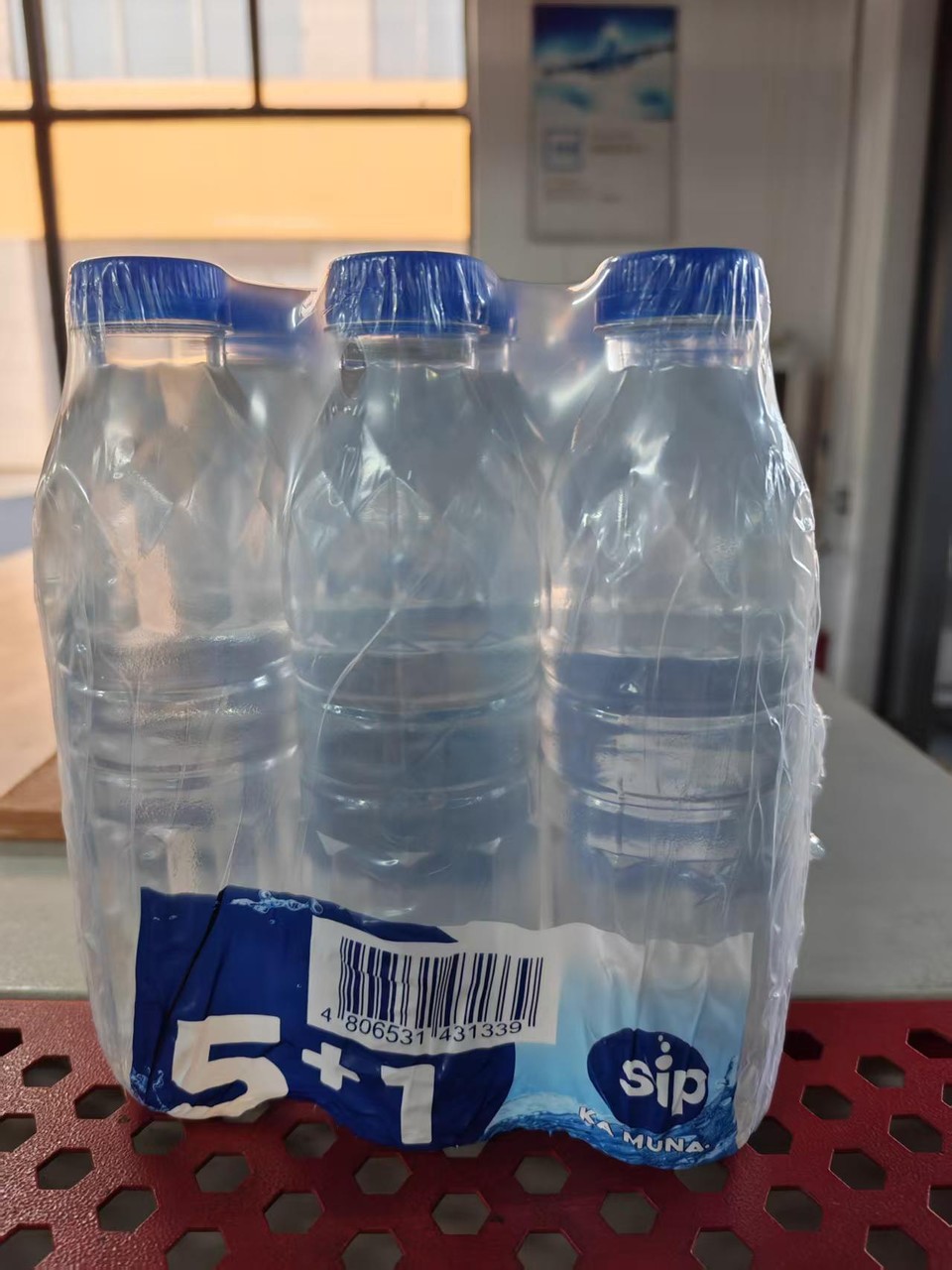

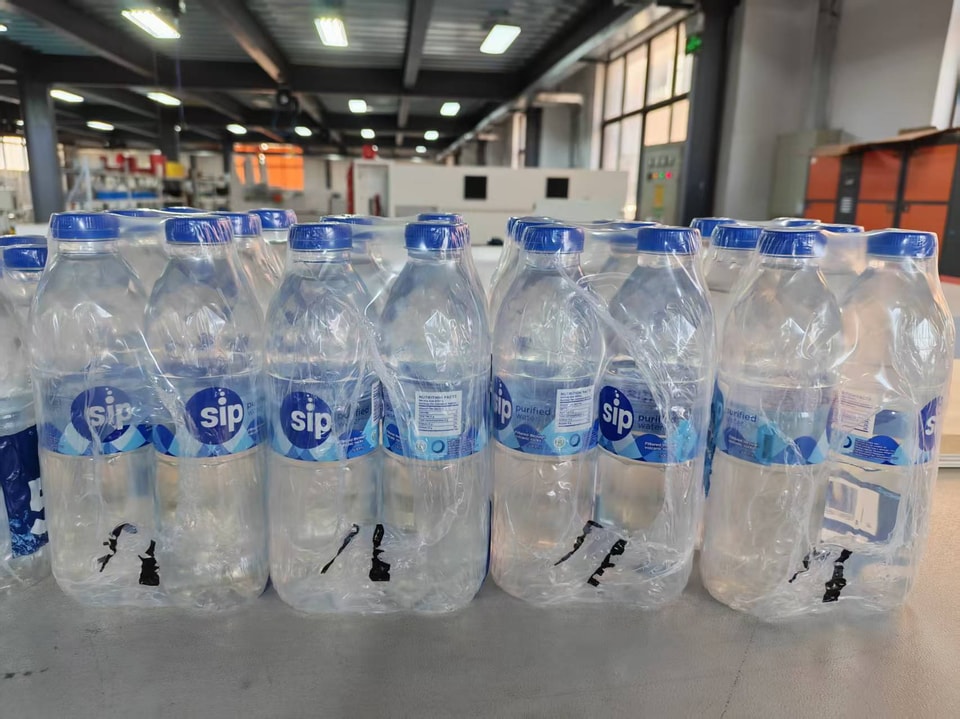

Small factory semi-automatic packaging, ex: Water bottle with eye mark
Email:info@kukoshrink.com
WhatsApp / WeChat
Downloads
Product Features

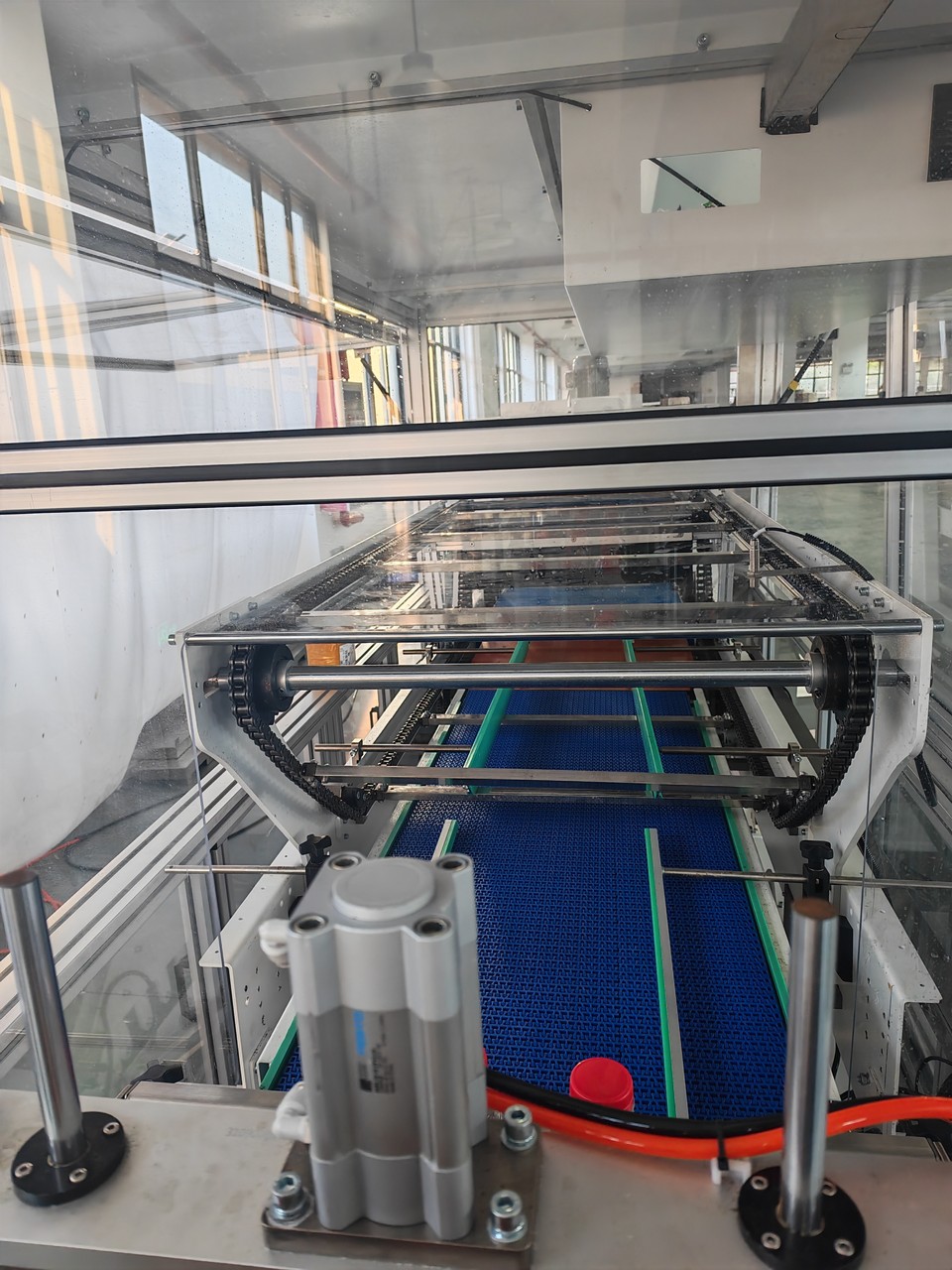

· Adopts lane-divided bottle feeding design with optional pneumatic cylinder or servo-driven lane division, enabling orderly bottle feeding and improving production efficiency;
· Colored shrink film compatible;
· Pneumatic expansion supports the film roll for stable delivery, and electronic induction enables quick and efficient film replacement;
· Switchable automatic and manual control system;
· The online film wrapping technology which enables lap joint of film sheet according to the product running intervals to achieve single package wrapping and maximizes the equipment capacity.

Technical Parameters
| Model | GH-6030HL | SF-6040E |
|---|---|---|
| Power | 15 kw | 28 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Packing Size L × W × H | 400 × 400 × 250mm | Chamber Size L × W × H 2500 × 600 × 400mm |
| Film Cutter Length | 600mm | / |
| Packing Speed | 45 packs/min. | 0~20m/min. |
| Working Table Height | 825 ± 25mm | 825 ± 25mm |
| Shrink Film | PE | PE |
| Machine Size L × W × H | 6250 × 1425 × 1250mm | 3500 × 950 × 1700mm |
| Crate Size L × W × H | 3900 × 1450 × 2200mm | 3600 × 1140 × 1850mm |
| G./N. Weight | 1500/1700kgs | 800/735kgs |

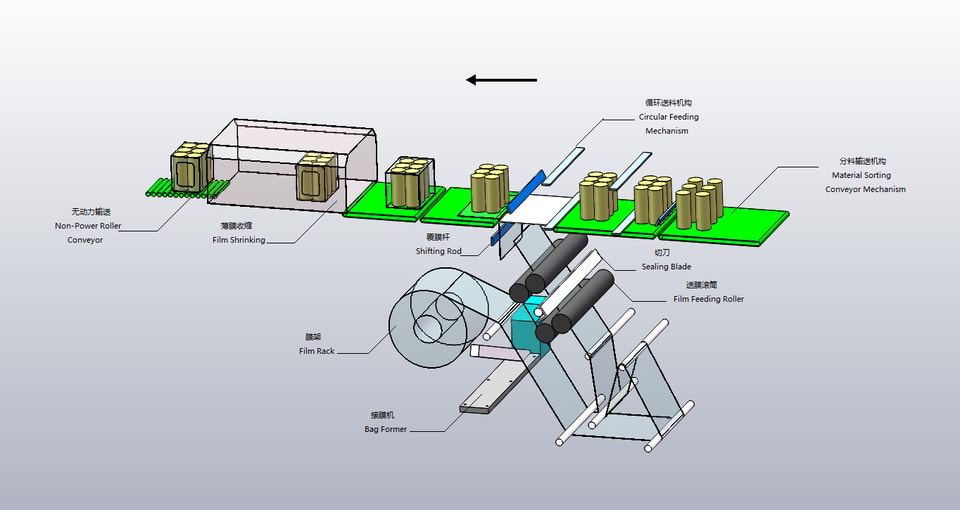

Working Flow

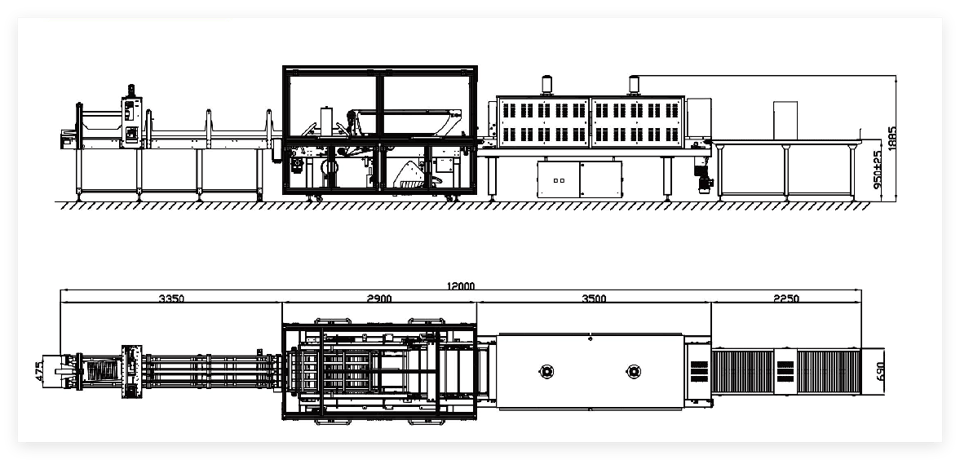

Lay-out
