Fully-auto Motion Sleeve Sealer & Shrink Tunnel
Fully-auto Motion Sleeve Sealer & Shrink Tunnel
Medium-large boxed goods, home appliances, industrial parts, high-speed production lines
Configure This Packaging System
For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material.
KUKO engages with every project from the initial application review. We assess product characteristics, packaging format, film type, required output, operating speed, and upstream and downstream equipment interfaces to ensure the machine configuration aligns with your production process.
Throughout manufacturing, rigorous build-quality inspections, configuration validation and pre-shipment trial preparations are systematically managed and reviewed with the customer to achieve full mutual alignment. KUKO additionally manages the full scope of technical documentation compilation, export compliance documentation, installation scheduling, on-site commissioning, operator training handover and ongoing after-sales support. Every set of documentation and service provision is formally defined and confirmed for each individual project enquiry.
Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.
· Max. packing speed: 50pcs/min.;
· Equipped with a parameterized adjustment function, it allows rapid product switching within preset ranges;

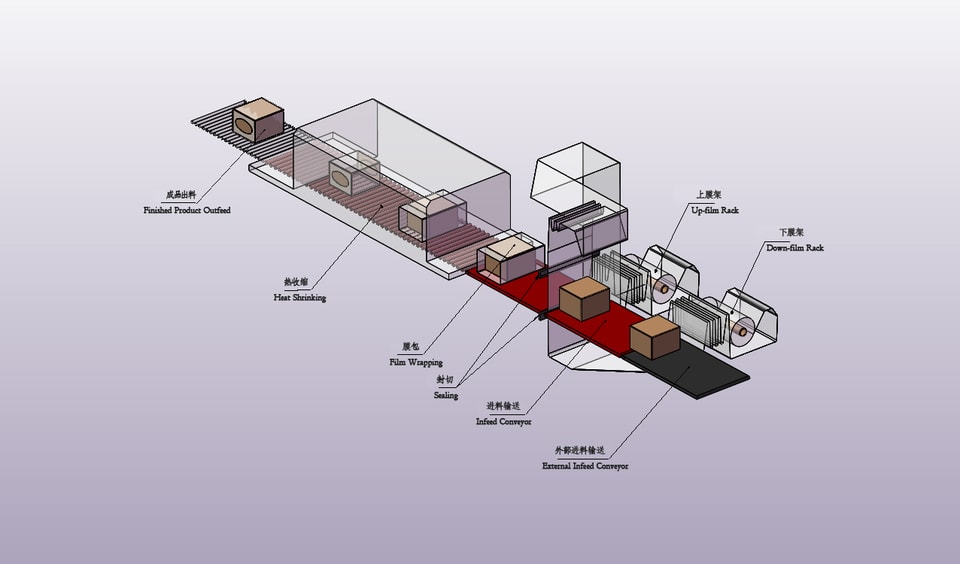

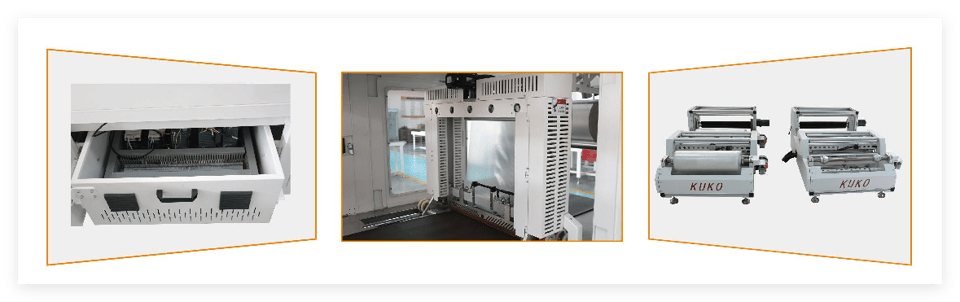

· Adopting an external film roll arrangement, facilitating the installation of larger-sized film rolls. It is also equipped with automatic film welding and switching functions, enabling consumable replacement within continuous operation, the film rolls are placed on one side of the equipment to make easier operation;
· Adopting the "flying cut" technology for its cutting knife. It can automatically detect the film cutting and sealing positions based on the product movement gaps, maximizing the equipment's production capacity;
· Adopting a double-set timing belt structure design, ensuring the synchronization of product running speed and noise reduction;
| Model | GH-6030CM | SF-5030E |
|---|---|---|
| Power | 5 kw | 35 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | 300 × 500 × 300mm | Chamber Size L × W × H 1500 × 500 × 350mm |
| Cross Blade Size | 670mm | / |
| Packing Speed | 10~30m/min. | 0~30m/min. |
| Working Table Height | 825 ± 25mm | 825 ± 25mm |
| Shrink Film | PE | PE |

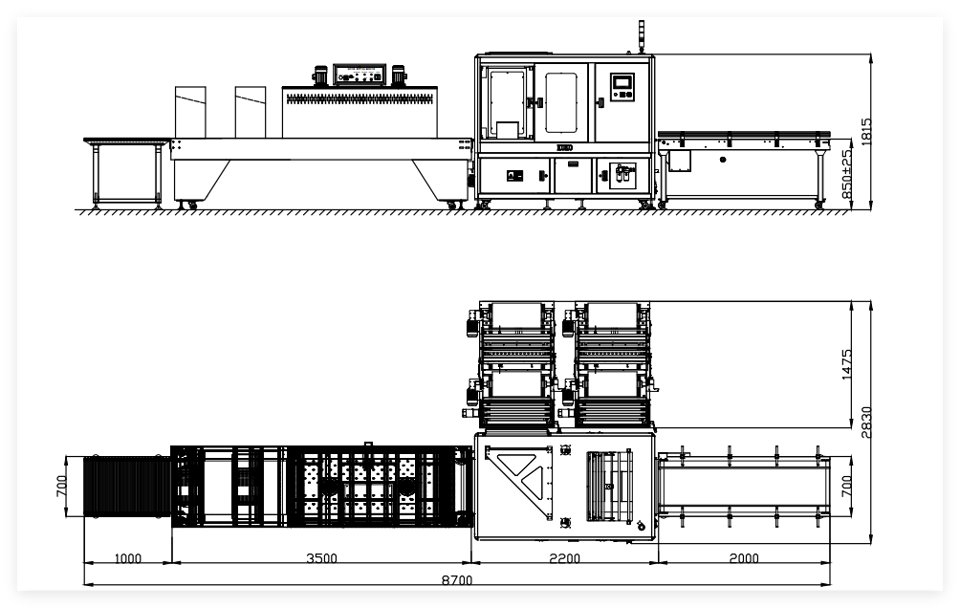

| Machine Size L × W × H | 2200 × 2830 × 1815mm | 3500 × 950 × 1800mm |
| Crate Size L × W × H | 2300 × 2930 × 1965mm | 3600 × 1140 × 1950mm |
| G./N. Weight | 1000/900kgs | 800/735kgs |
