Fully-auto Sleeve Sealer & Shrink Tunnel

Small bottled goods, condiments, cosmetics bottles, multi-row small product layered packaging

Email:info@kukoshrink.com

WhatsApp / WeChat

+86 189-1774-9969

REQUEST A QUOTE

Product Features

· Automatic counting daily output;

· GH-6030AHO can connect with the front filling line to achieve automation;

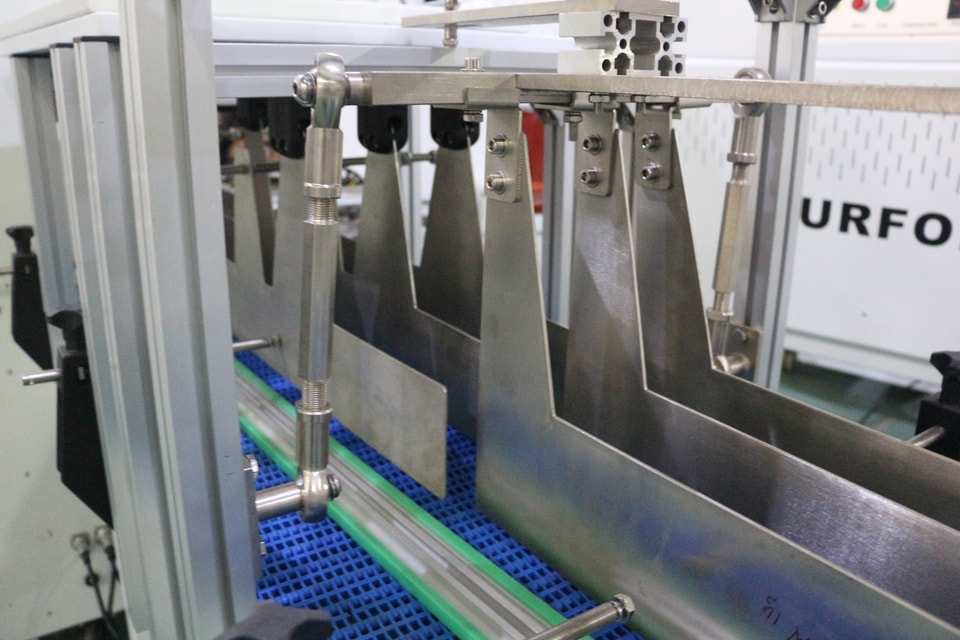

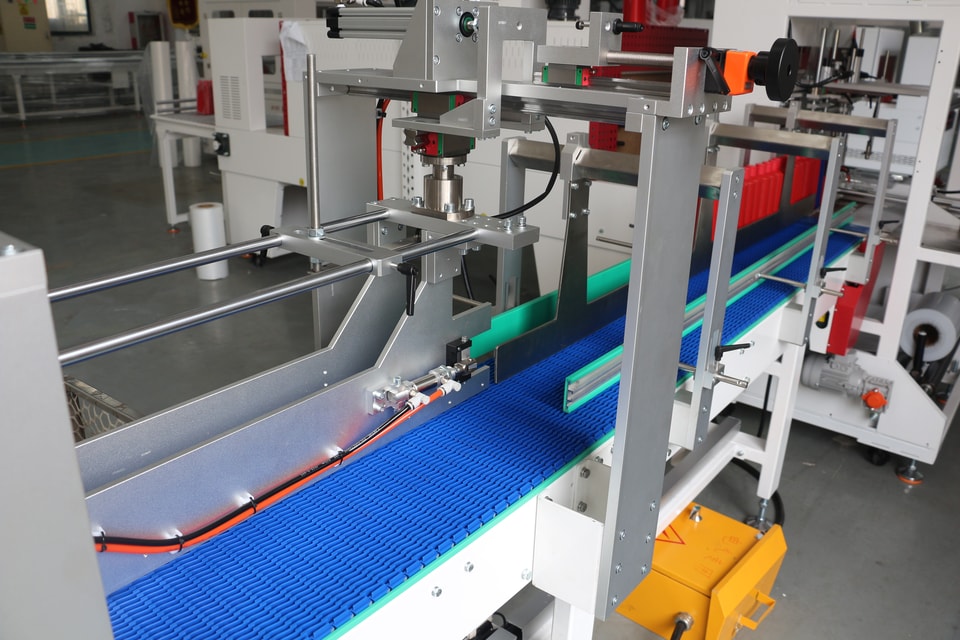

· Feeding conveyor can be designed in the left or right side as per your demands;

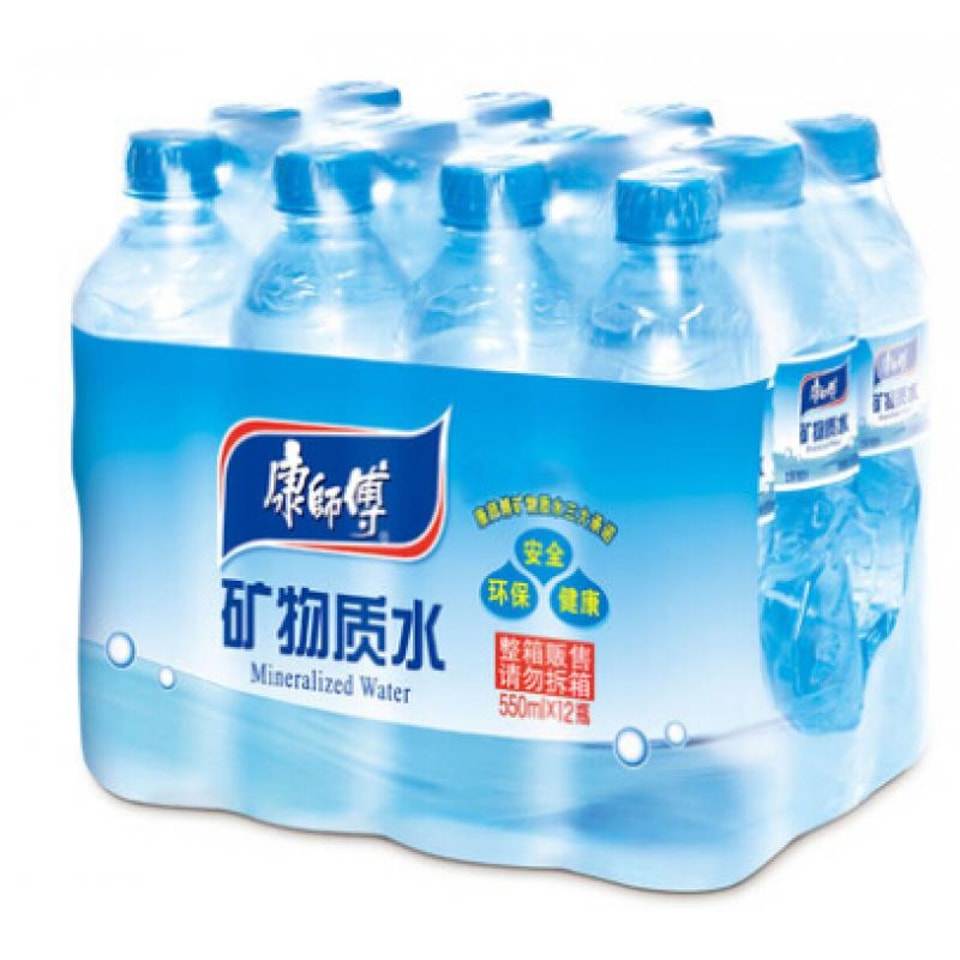

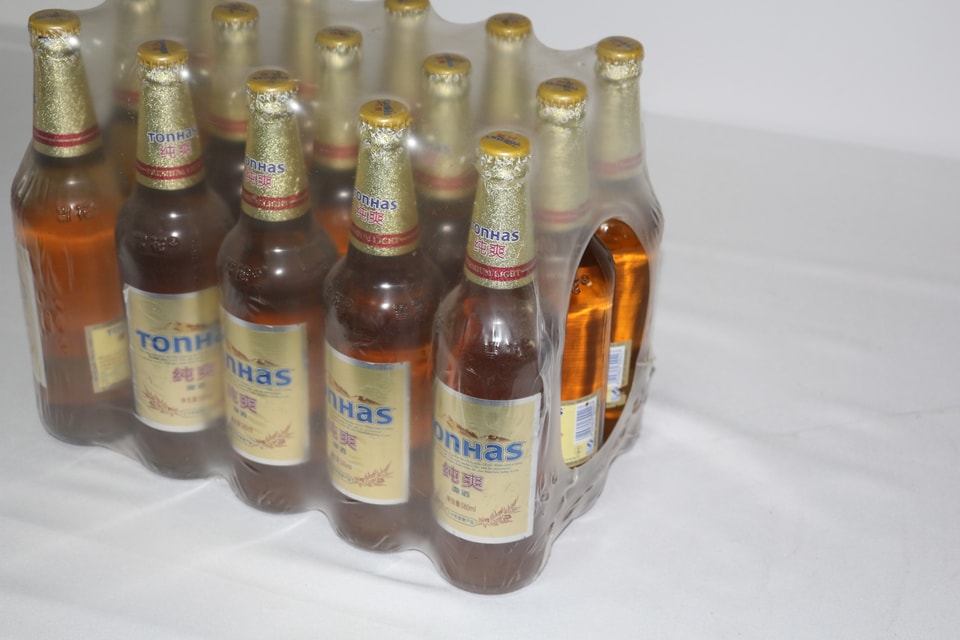

· Square or round bottle’s packing: 6 bottles (2x3), 8 bottles (2x4), 9bottles (3x3), 12bottles (3x4), 15bottles (3x5), 18bottles (3x6), 20bottles (4x5), 24bottles (4x6) etc.

Technical Parameters

Model	GH-6030AHO	SF-8050E
Power	2 kw	22 kw
Power Supply	AC 220/380V 1/3PH 50/60HZ	AC 220/380V 3PH 50/60HZ
Max. Packing Size L × W × H	300 × 500 × 300mm	Chamber Size L × W × H 1500 × 500 × 350mm
Cross Blade Size	670mm	/
Packing Speed	0~12m/min.	0~15m/min.
Working Table Height	825 ± 25mm	825 ± 25mm
Shrink Film	PE	PE

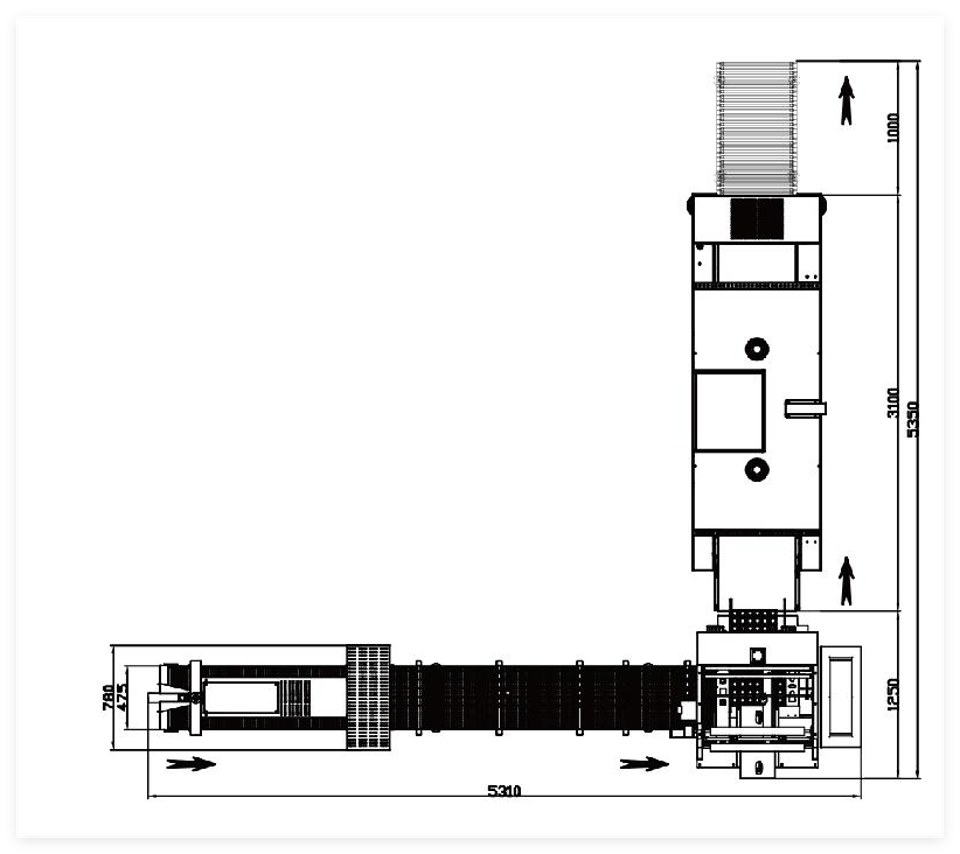

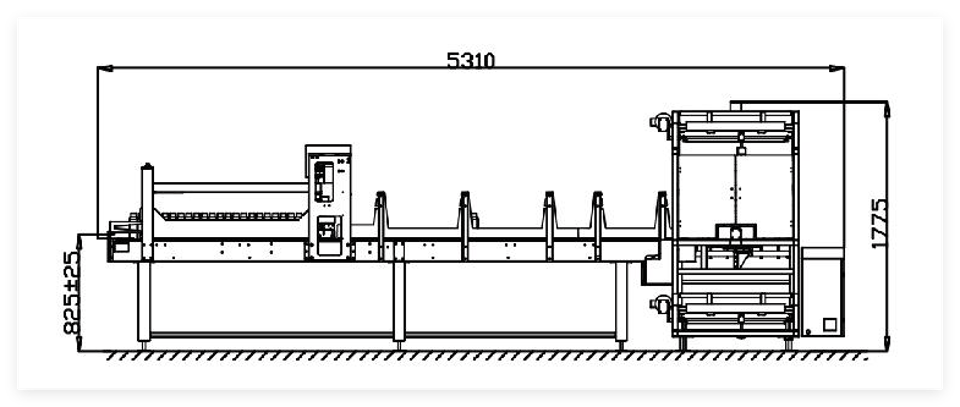

Machine Size L × W × H	2710 × 1750 × 1775mm	2850 × 1350 × 1800mm
Crate Size L × W × H	4765 × 1440 × 2075mm	2900 × 1400 × 1950mm
G./N. Weight	495/465kgs	835/780kgs
