Fully-auto Straight Sleeve Sealer & Shrink Tunnel


Fully-auto Straight Sleeve Sealer & Shrink Tunnel
Small bottled goods, condiments, cosmetics bottles, multi-row small product layered packaging, medicine box
Email:info@kukoshrink.com
WhatsApp / WeChat
Downloads
Product Features
· GH-6030AC+ SF-6040E Fully-auto sleeve shrink wrapper is designed for a single round object. This machine can connect production line to make automatic feeding, wrapping, sealing, shrinking and cooling to achieve unmanned production;
· Induction film-feeding greatly reduces the waste of film;
· The integrated design of sealing and shrinking makes the transition of circular products smooth;
· Feeding conveyor is customized for the round products with straight feeding.
Technical Parameters
| Model | GH-6030AC+SF-6040E |
|---|---|
| Power | 28 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ |
| Max. Packing Size | Φ250 × H100mm |
| Cross Blade Size | 350mm |
| Packing Speed | 0~15m/min. |
| Working Table Height | 825 ± 25mm |
| Shrink Film | PE |
| Machine Size L × W × H | 4500 × 1220 × 1850mm |
| Crate Size L × W × H | 4600 × 1400 × 2000mm |
| G./N. Weight | 1300/1200kgs |

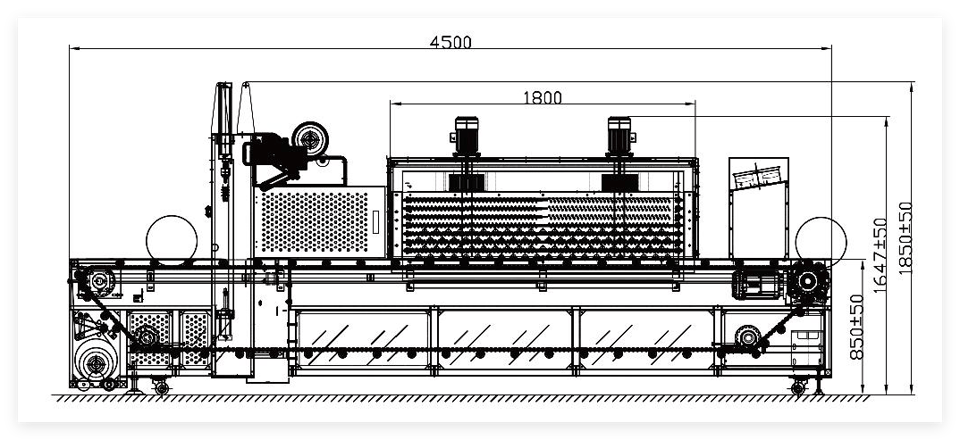

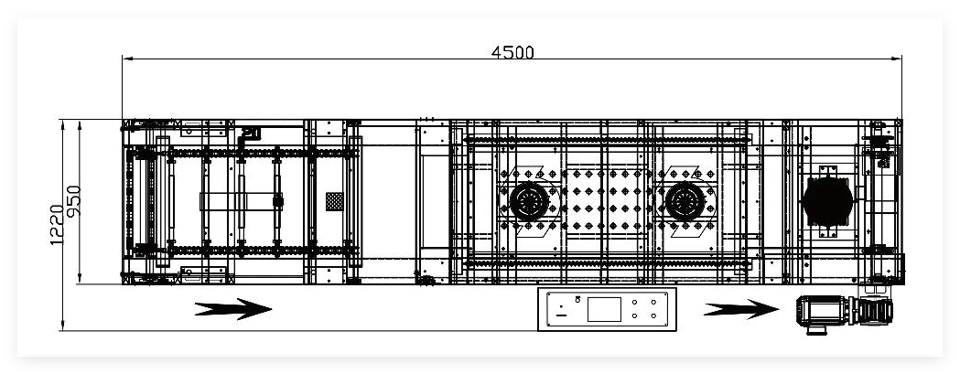

Lay-out
