Fully-auto Vertical Sleeve Sealer & Shrink Tunnel (LinearType)




Fully-auto Vertical Sleeve Sealer & Shrink Tunnel (LinearType)

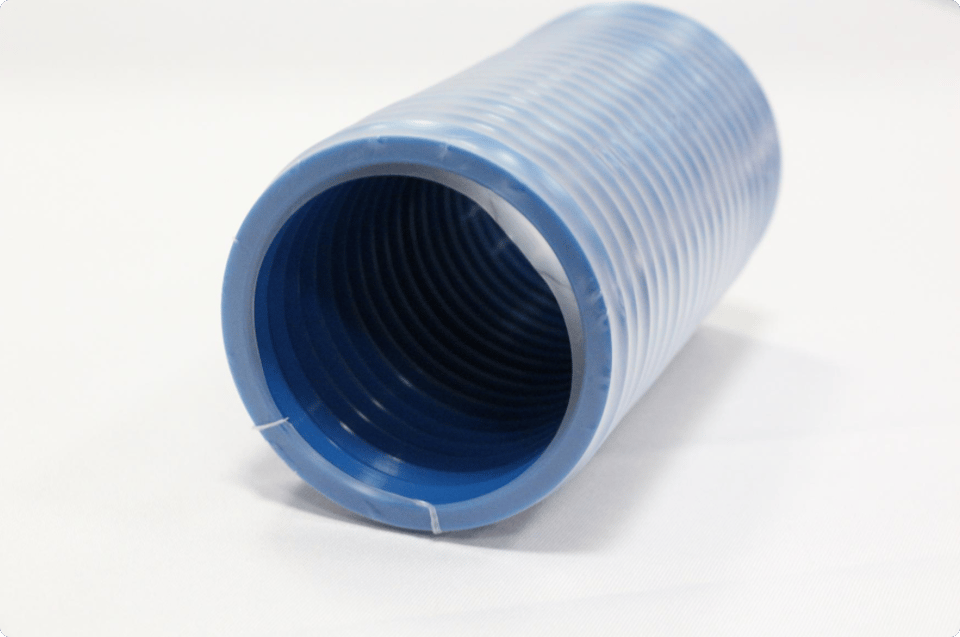

Long strip cylindrical products, rod-shaped goods, tube materials
Email:info@kukoshrink.com
WhatsApp / WeChat
Downloads
Product Features
· The configuration of metal chain plate as the conveying carrier can meet the high temperature state to carry products into the shrink chamber;
· Vertical arrangement of two film rolls is adopted to facilitate the installation of larger film rolls;
· The feeding and the discharging can be realized by manual or mechanical arm;
· The surface of the blade with special coating to reduce the adhesion of welding waste on the surface of the tool during film welding;
· Adopt the dual safety protection of sensor and positioning mold to ensure that valuable products are not damaged during sealing.
Technical Parameters
| Model | GH-6030CY+SF-2050 |
|---|---|
| Power | 15 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ |
| Max. Packing Size | Φ50-160 × W250mm |
| Vertical Blade Size | 500mm |
| Packing Speed | 0~15m/min. |
| Working Table Height | 950 ± 25mm |
| Shrink Film | POF |
| Machine Size L × W × H | 4345 × 1145 × 1920mm |
| Crate Size L × W × H | 4445 × 1245 × 2120mm |
| G./N. Weight | 900/800kgs |

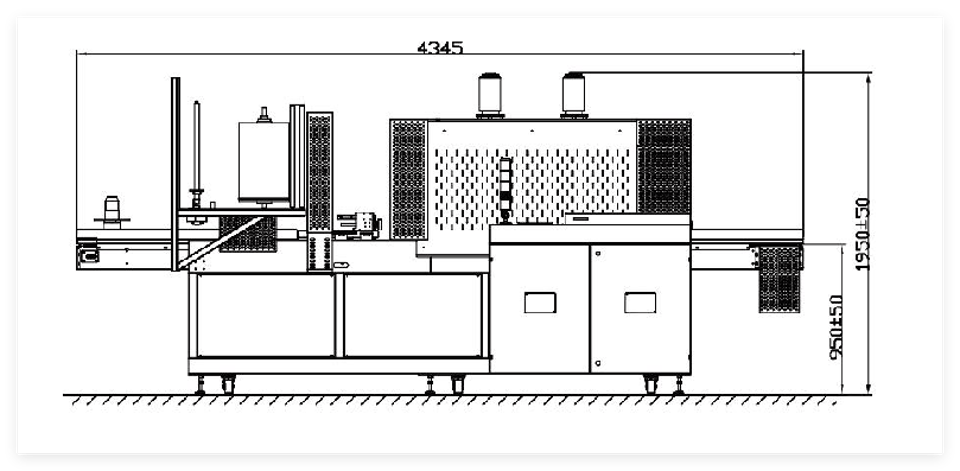

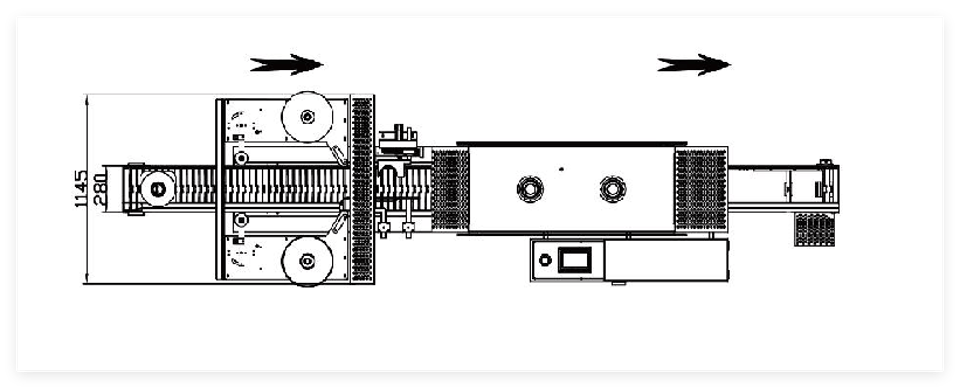

Lay-out
