Fully-auto Vertical Sleeve Sealer & Shrink Tunnel(Circle Type)




Fully-auto Vertical Sleeve Sealer & Shrink Tunnel(Circle Type)
Long strip cylindrical products, rod-shaped goods, tube materials
Email:info@kukoshrink.com
WhatsApp / WeChat
Downloads
Product Features
· Circulating operation structure;
· Vertical sealing bar is processed with high quality steel to reduce the change of the blade after heating and improve the stability of equipment;
· Special mods are used to ensure that the packaging process has no other contaminated contact with products and does not damage products;
· film-lack warning function which can remind workers to change;
· The heat shrink section uses hot air circulation heating technology, which reuses energy in the heating process to reduce carbon emission.
Technical Parameters
| Model | GH-6030AY+SF-2050E |
|---|---|
| Power | 15 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ |
| Max. Packing Size | Φ40-210 × H250mm |
| Vertical Blade Size | 500mm |
| Packing Speed | 0~20m/min. |
| Working Table Height | 950 ± 25mm |
| Shrink Film | PE |
| Machine Size L × W × H | 4510 × 2350 × 1800mm |
| Crate Size L × W × H | 4610 × 2450 × 1950mm |
| G./N. Weight | 1960/1870kgs |

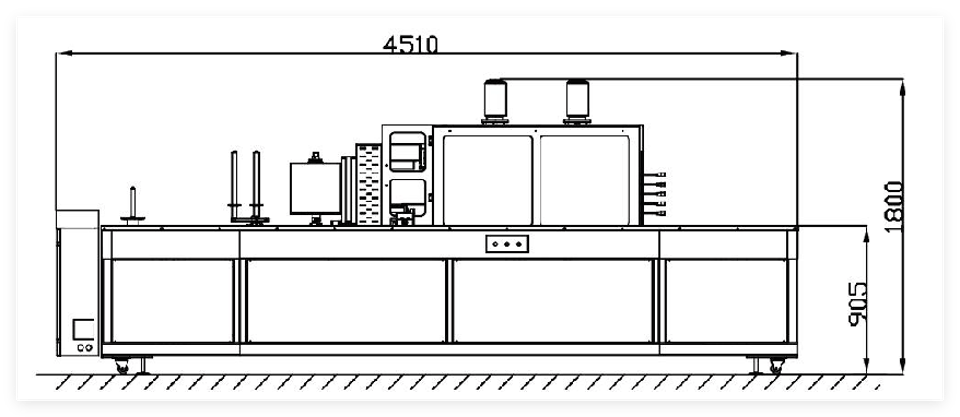

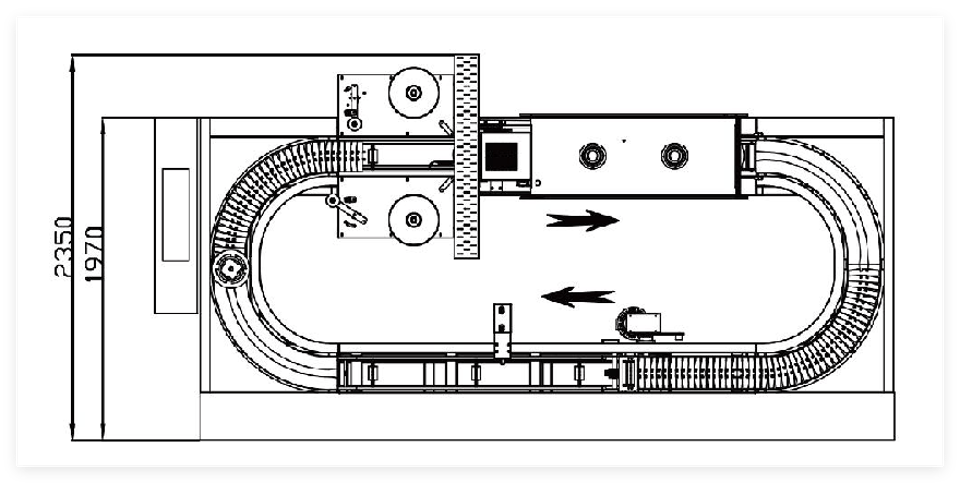

Lay-out
