Luggage Shrink Wrapper


Luggage Shrink Wrapper
Airport luggage packaging, station luggage wrapping, luggage dustproof & scratch-proof shrink packaging for travel hubs
Email:info@kukoshrink.com
WhatsApp / WeChat
Downloads
Product Features
· GH-6030ETA Automatic Luggage Shrink Wrapper is a dedicated device for the shrink wrapping of luggage and parcels, mainly applied in airports, stations, docks and other such locations;
· No air compressor required and low noise operation;
· It adopts an integrated linear design with a compact structure, facilitating equipment transfer and requiring a small floor space;
· It features multiple modes in function settings, supporting single feeding, continuous feeding, manual feeding and other options.
Technical Parameters
| Model | GH-6030ETA | SF-12560E |
|---|---|---|
| Power | 15 kw | 17 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | 1000 × 400 × 600mm | Chamber Size L × W × H 1500 × 500 × 350mm |
| Cross Blade Size | 1250mm | / |
| Packing Speed | 0~17m/min. | 0~15m/min. |
| Working Table Height | 600 ± 10mm | 600 ± 10mm |
| Shrink Film | PE | PE |
| Machine Size L × W × H | 2550 × 1560 × 1405mm | 2550 × 1560 × 1649mm |
| Crate Size L × W × H | 2650 × 1610 × 1555mm | 2750 × 1650 × 1750mm |
| G./N. Weight | 550/450kgs | 700/600kgs |

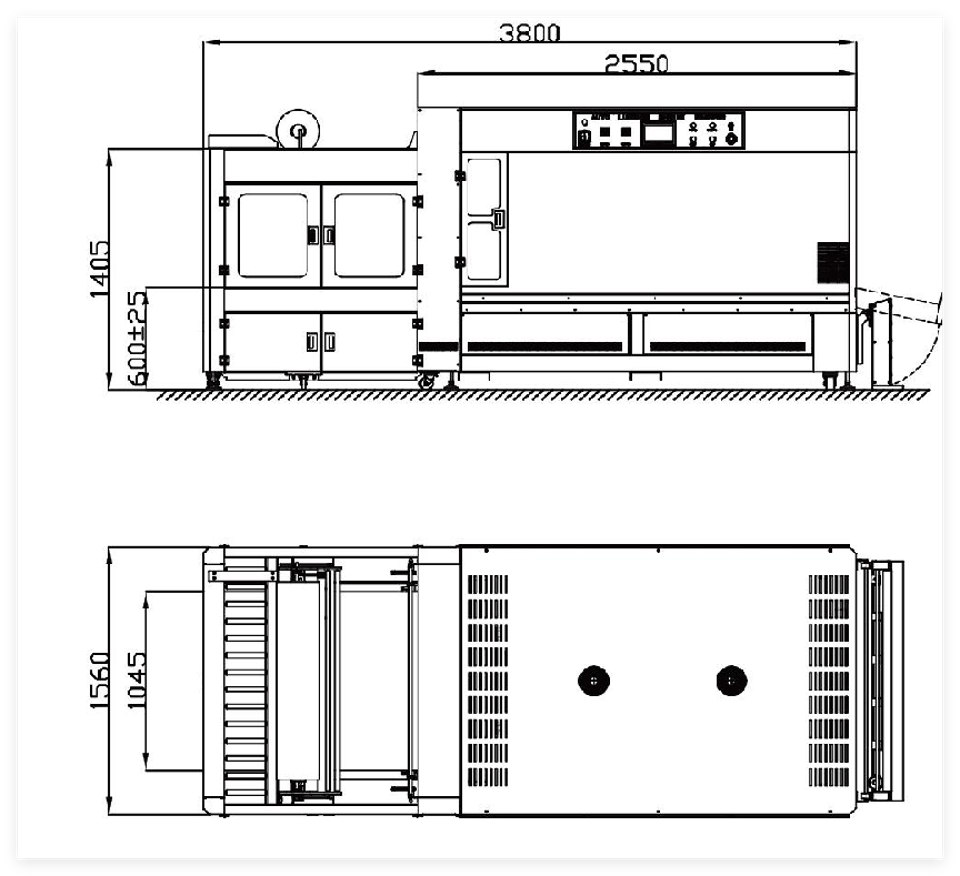

Lay-out
