Semi-auto Sleeve Sealer & Shrink Tunnel










Semi-auto Sleeve Sealer & Shrink Tunnel
Small factory semi-automatic packaging, low-volume large goods, cartons, parts, manual auxiliary sealing and shrinking
Configure This Packaging System
For an application-specific quotation, please share the minimum and maximum product dimensions, weight, shape, required packs per minute, and preferred film material.
KUKO engages with every project from the initial application review. We assess product characteristics, packaging format, film type, required output, operating speed, and upstream and downstream equipment interfaces to ensure the machine configuration aligns with your production process.
Throughout manufacturing, rigorous build-quality inspections, configuration validation and pre-shipment trial preparations are systematically managed and reviewed with the customer to achieve full mutual alignment. KUKO additionally manages the full scope of technical documentation compilation, export compliance documentation, installation scheduling, on-site commissioning, operator training handover and ongoing after-sales support. Every set of documentation and service provision is formally defined and confirmed for each individual project enquiry.
Product drawings, photos, samples, proposed packaging method, pack patterns, film specifications, line-layout files, and a video of the existing production line will help KUKO confirm sealing method, tunnel size, interfaces, and the most suitable configuration before pricing.
Downloads
· It is suitable for single or grouping packing;
· Bottom-mounted concealed pusher drive for unobstructed operation;
· GH-6030 using imported motor makes it more stable during pushing and sealing;

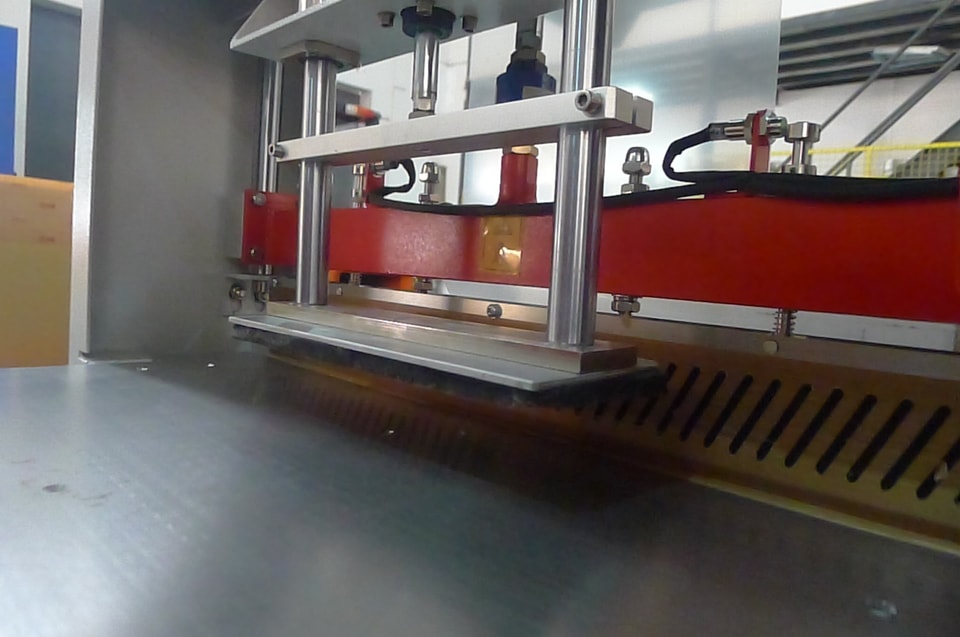

· A specially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;
· Usage of imported electrical components reduces failure during the using process;

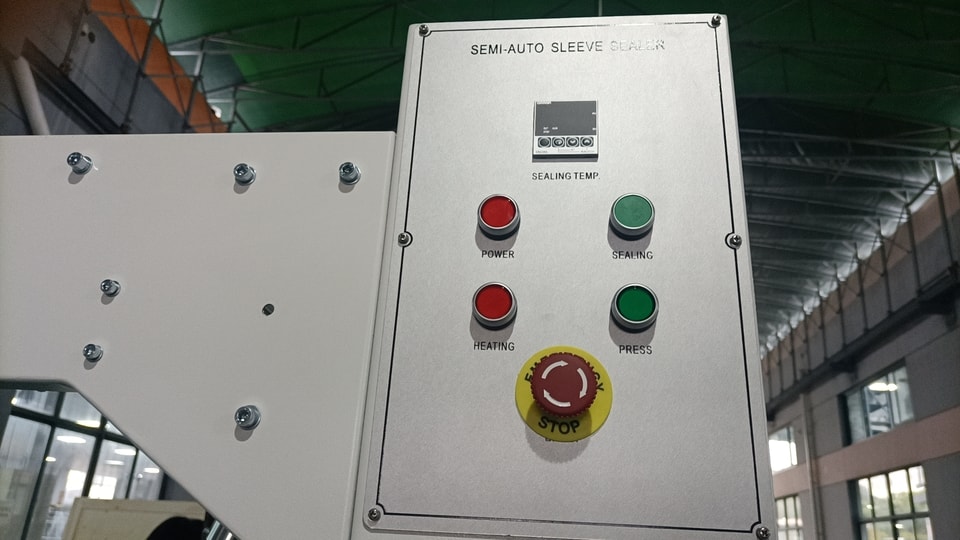

· Concealed motor device greatly increases the convenience of operation. Back end pressing device ensures that the light products will not move;
· The front fixing frame can be adjusted, so it can pack different shapes products;
· SF-6040E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
· Using solid steel rod covered by imported silicone tubes, chain conveying, durable silicone; SF-6040E can add density axis function which specially designed for small volume products;
· The use of frequency inverter controls transmission speed which has the function of infinitive speed;

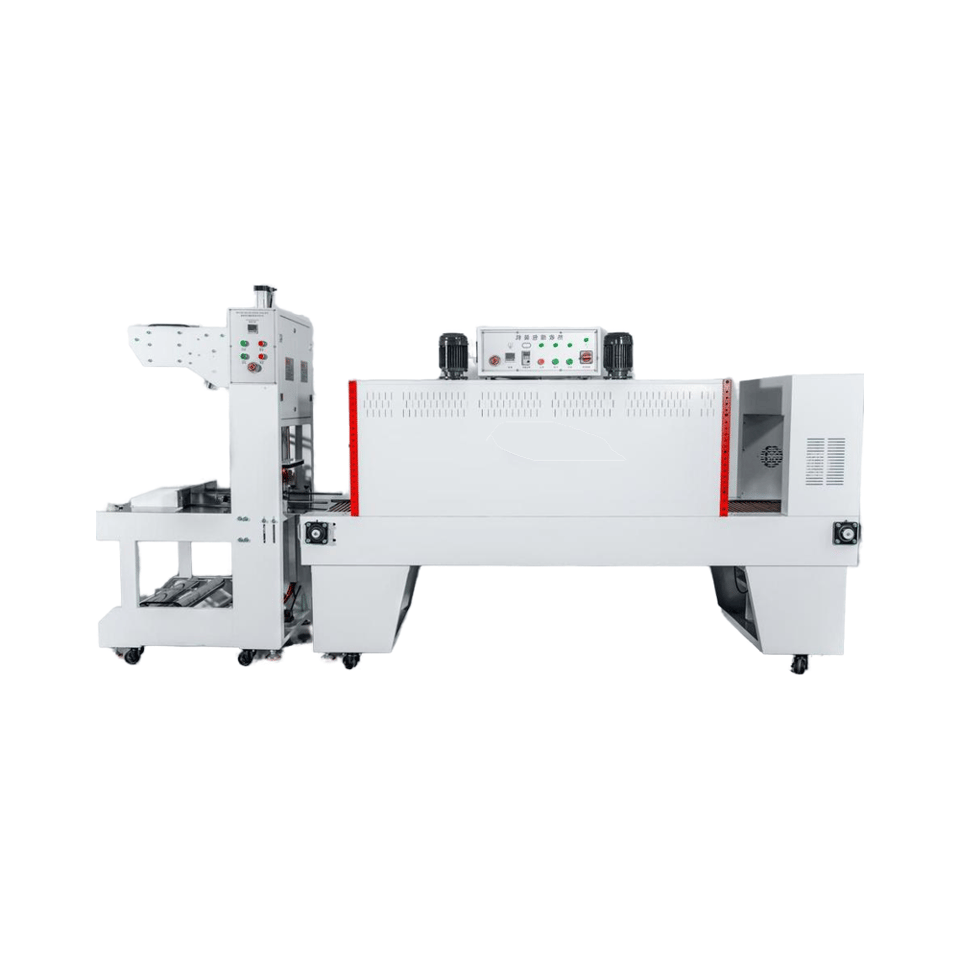

· GH-6030 + SF-6040E is an economical machine in GH Series sleeve shrink packaging machine. The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine mainly uses PE shrink film;

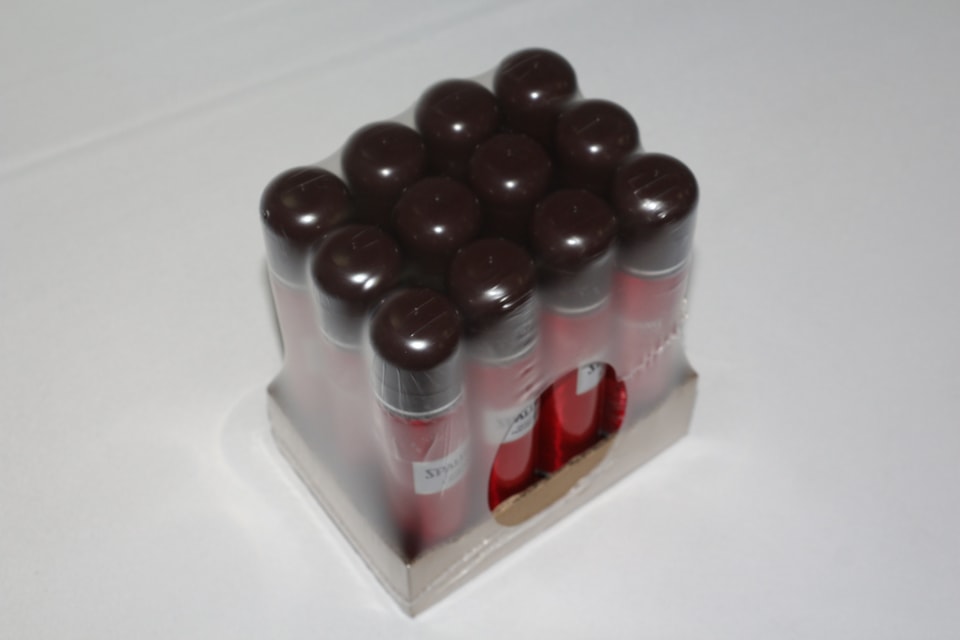

· The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances, auto parts, furniture, flooring and other individual or group shrink wrap.
| Model | GH-6030 | SF-6040E |
|---|---|---|
| Power | 2 kw | 30 kw |
| Power Supply | AC 220/380V 1/3PH 50/60HZ | AC 220/380V 3PH 50/60HZ |
| Max. Packing Size | 400 × 600 × 380mm | Chamber Size L × W × H 1500 × 500 × 350mm |
| Cross Blade Size | 800mm | / |
| Packing Speed | 5-8m/min. | 0-15m/min. |
| Working Table Height | 825 ± 25mm | 825 ± 25mm |
| Shrink Film | PE | PE |
| Machine Size L × W × H | 1330 × 980 × 1815mm | 2800 × 950 × 1700mm |
| Crate Size L × W × H | 1430 × 1080 × 1965mm | 2950 × 1140 × 1850mm |
| G./N. Weight | 430/370kgs | 630/555kgs |
